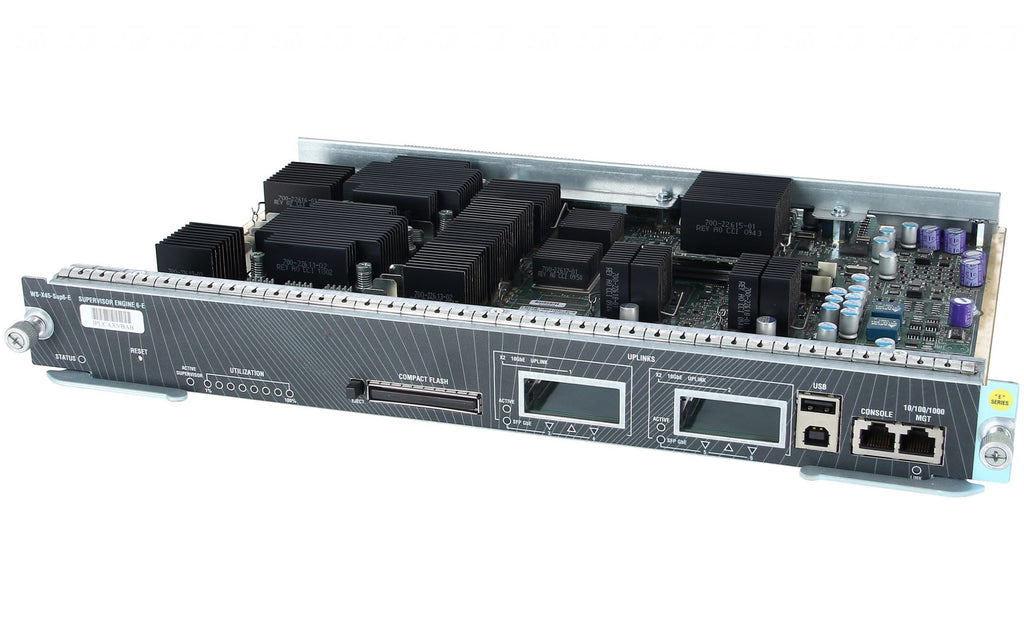

Cisco WS-X45-SUP6-E/2 Catalyst 45xxR E-Series Sup 6-E

Roll over image to zoom in Click on image to zoom

The Cisco Catalyst 4500 Supervisor Engine 6-E with CenterFlex technology is an intelligent, high-performance, next-generation extension to the Cisco Catalyst 4500 Series optimized for customers deploying business-critical applications. CenterFlex technology is enabled by Cisco developed application-specific integrated circuits (ASICs) specific to the Supervisor Engine 6-E that deliver industry-leading centralized performance and configuration flexibility. CenterFlex technology helps enable granular optimization of real-time voice, video, and data communications to ensure workforce productivity and profitability and customer success for organizations of all sizes.

Feature and Description	WS-X45-SUP6-E
Centralized switching capacity	320 Gbps
Per-slot switching capacity	24 Gbps
Throughput	250 Mpps for IPv4 125 Mpps for IPv6 250 Mpps for L2 Bridging
IPv4 Routing entries	256,000
IPv6 Routing entries	128,000
Multicast routes	32,000
CPU	1.3 GHz
CPU queues	64
Synchronous Dynamic RAM (SDRAM)	512 MB upgradable to 1 GB
Nonvolatile RAM (NVRAM)	No through Boot flash (64 MB)
Security and QoS hardware entries	128,000
Cisco Network Admission Control (NAC) and Dynamic Host Configuration Protocol (DHCP) Snooping entries	12,000
MAC addresses	55,000
Active VLANs	4096
Spanning Tree Protocol instances	10,000
Switched virtual interfaces (SVIs)	4096
Switched Port Analyzer (SPAN)	Maximum of 8 sessions: ingress and or egress

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
