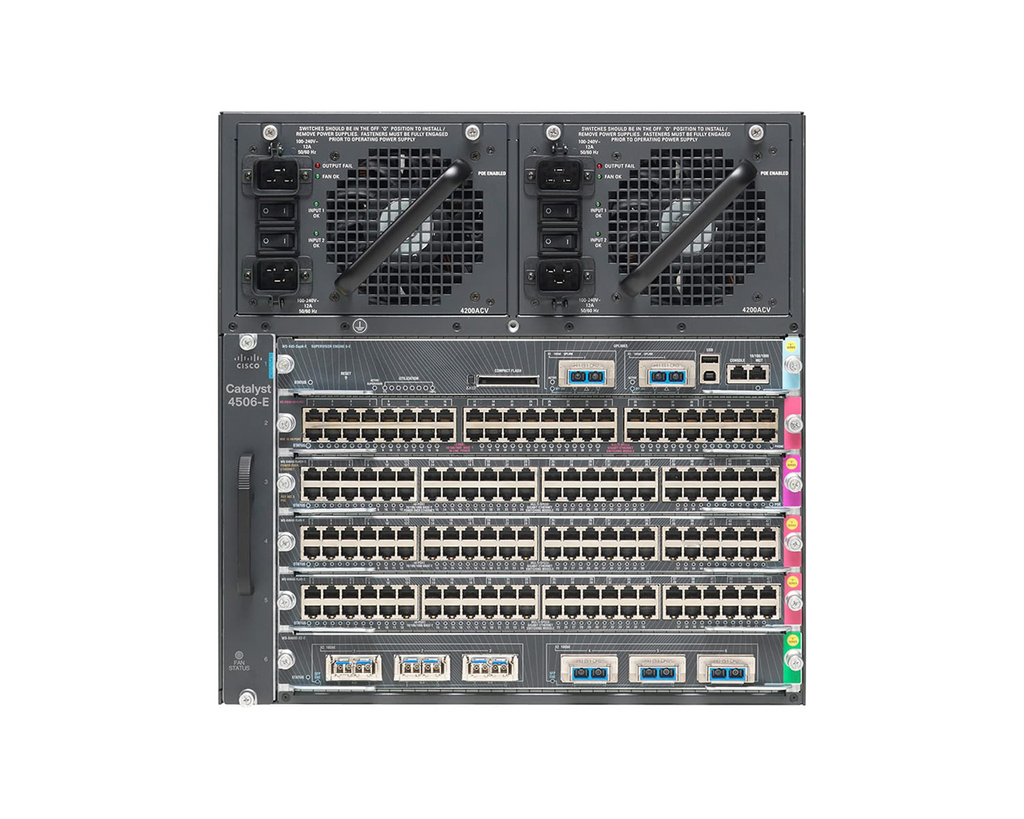

| Total Slots | 7 |
| Line Card Slots | 5 (slots 1, 2, 5, 6, 7) |
| Supervisor Engine Slots | 2 (slots 3 and 4 — dedicated) |
| Supervisor Redundancy | 1+1 with subsecond failover, NSF/SSO, ISSU |
| Supported Supervisors | WS-X45-SUP6-E, WS-X45-SUP7-E, WS-X45-SUP7L-E, WS-X45-SUP8-E, WS-X45-SUP8L-E |
| Bandwidth per Slot (Sup 6-E) | 24 Gbps |
| Bandwidth per Slot (Sup 7-E / 8-E) | 48 Gbps |
| Max PoE per Slot | 1,500W |
| PoE Support | IEEE 802.3af, 802.3at (PoE+), UPOE |
| Power Supply Bays | 2 (1+1 redundancy) — PSUs ordered separately |
| Fan Tray | Redundant — included with chassis |
| Line Card Compatibility | Catalyst 4500 E-Series and classic 4500 line cards |
| Layer 2/3/4 | Nonblocking — supervisor-dependent feature set |
| Compliance | NEBS Level 3, FCC Class A, CE, VCCI Class A |
| Ships With | Chassis and fan tray only — no PSU, supervisor, or line cards |
| Form Factor | 11U rack-mountable (19-in. and 23-in. compatible) |
| Dimensions | 19.19 x 17.31 x 12.50 in. |
| Weight (chassis with fan tray) | 44.50 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
