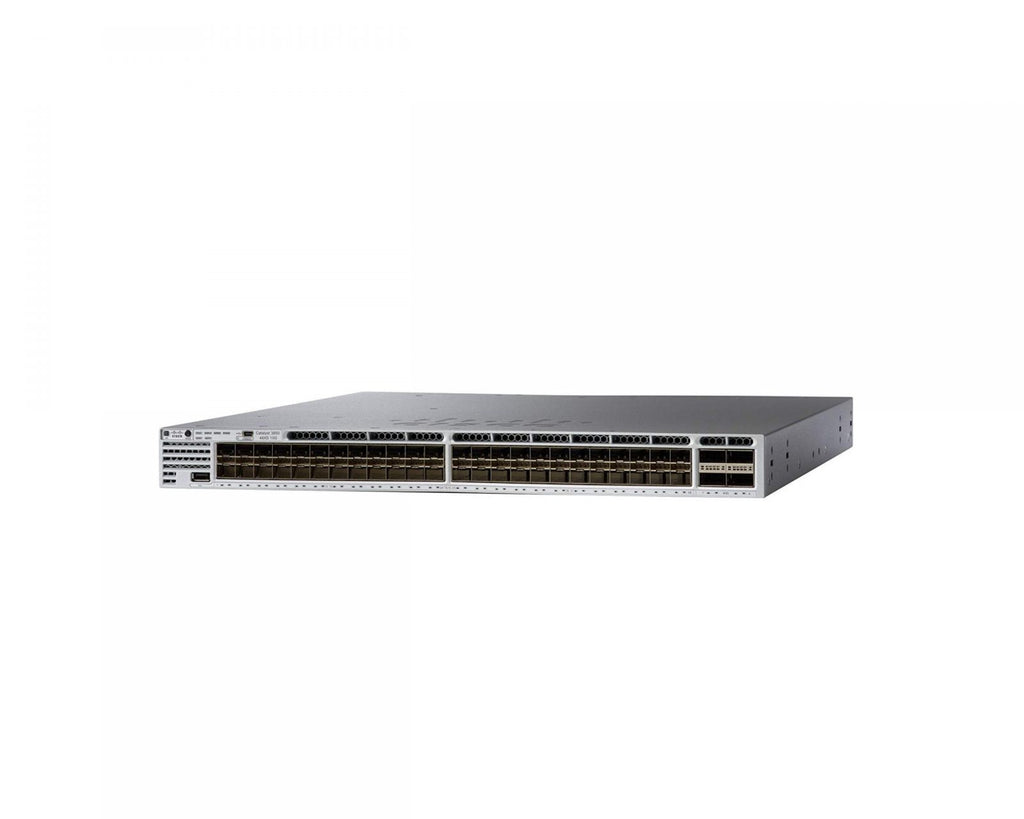

| Device Type | Switch - 48 ports - L3 - managed - stackable |
|---|---|
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Subtype | 10 Gigabit Ethernet |
| Ports | 48 x 10 Gigabit Ethernet 4 x shared 10 Gigabit SFP |
| Performance | Switching capacity: 960 Gbps ¦ Throughput: 714 Mpps ¦ 10 Gbps fiber latency (64-byte packets): 1.508 µs ¦ 10 Gbps fiber latency (512-byte packets): 1.516 µs ¦ 10 Gbps fiber latency (1024-byte packets): 1.516 µs ¦ 10 Gbps fiber latency (1518-byte packets): 1.523 µs ¦ 10 Gbps copper latency (64-byte packets): 2.409 µs ¦ 10 Gbps copper latency (512-byte packets): 2.425 µs ¦ 10 Gbps copper latency (1024-byte packets): 2.43 µs ¦ 10 Gbps copper latency (1518-byte packets): 2.432 µs ¦ 1 Gbps fiber latency (64-byte packets): 2.285 µs ¦ 1 Gbps fiber latency (512-byte packets): 2.39 µs ¦ 1 Gbps fiber latency (1024-byte packets): 2.426 µs ¦ 1 Gbps fiber latency (1518-byte packets): 2.379 µs ¦ 1 Gbps copper latency (64-byte packets): 2.702 µs ¦ 1 Gbps copper latency (512-byte packets): 2.714 µs ¦ 1 Gbps copper latency (1024-byte packets): 2.73 µs ¦ 1 Gbps copper latency (1518-byte packets): 2.709 µs |
| Capacity | Virtual interfaces (VLANs): 4093 ¦ IGMP groups: 4000 ¦ LAG groups: 128 ¦ IPv4 routes (static): 64 ¦ IPv6 routes (static): 64 ¦ RIP routes: 512 ¦ IP router interfaces: 128 ¦ OSPF IPv4 routes: 12288 ¦ OSPF IPv6 routes: 4096 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | 12KB |
| Max Units In A Stack | 8 |
| Routing Protocol | OSPF RIP IGMPv2 IGMP VRRP PIM-SM PIM-DM IGMPv3 MLDv2 |
| Remote Management Protocol | SNMP 1 SNMP 2 Telnet SNMP 3 HTTPS SSH CLI |
| Authentication Method | RADIUS TACACS |
| Features | ARP support DiffServ support IPv6 support Spanning Tree Protocol (STP) support Rapid Spanning Tree Protocol (RSTP) support Virtual Route Redundancy Protocol (VRRP) support DHCP snooping Access Control List (ACL) support Quality of Service (QoS) MLD snooping STP Root Guard IPv4 support LACP support DHCP relay Remote Switch Port Analyzer (RSPAN) Per-VLAN Rapid Spanning Tree (PVRST) dynamic ARP protection IP source guard Bridge protocol data unit (BPDU) LISP Across Subnet Mode (ASM) Source-Specific Multicast (SSM) |
| Compliant Standards | IEEE 802.3ad (LACP) IEEE 802.3az |
| Processor | 1: 800 MHz |
| RAM | 1 GB |
| Flash Memory | 256 MB |
| Interfaces | 48 x 10GBase-T RJ-45 ¦ 4 x 10GBase-X SFP ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x console (mini-USB) ¦ 1 x USB Type A |
| Power Device | Internal power supply |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Provided | 250 Watt |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 237.2 Watt |
| Cables Included | 1 x mini-USB cable ¦ 1 x console cable |
| MTBF | 249393 hours |
| Compliant Standards | CISPR 22 Class A EN55024 EN50082-1 FCC Part 15 A C-Tick Class A VCCI Class A EN 55022 Class A |
| Localization | Europe Americas |
| Width | 17.3 in |
| Depth | 13.6 in |
| Height | 1.7 in |
| Weight | 14.44 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
