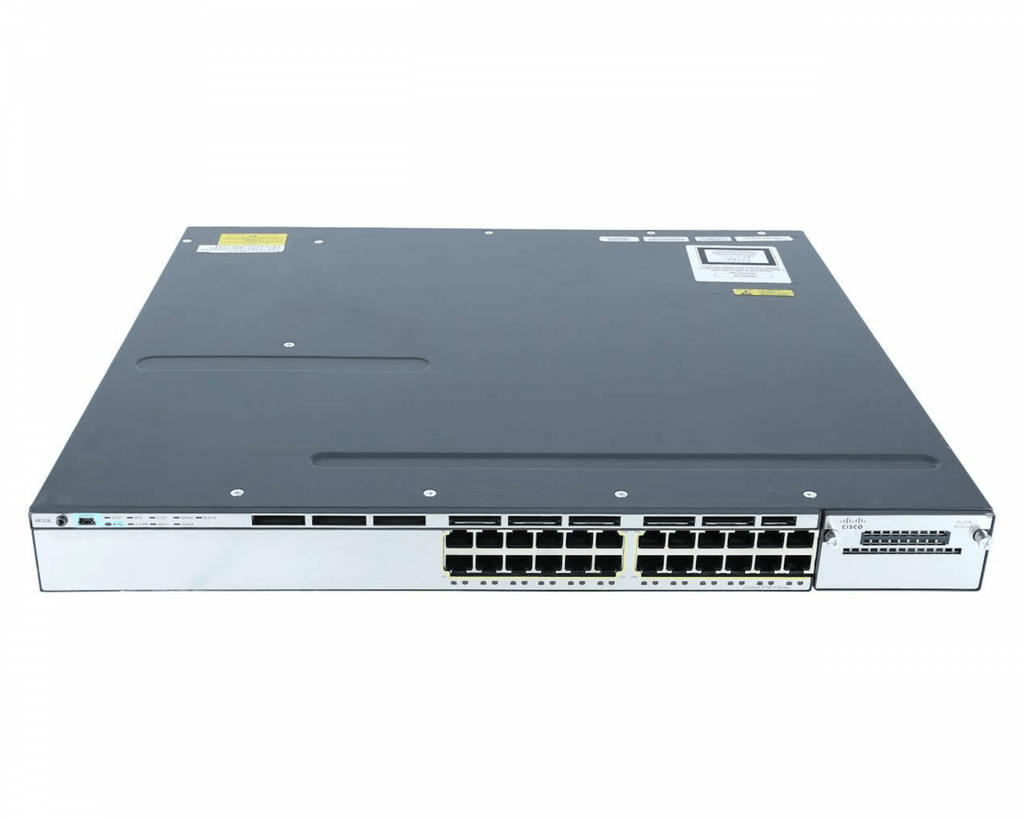

| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Enclosure Type | Desktop rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE ) |
| Power Over Ethernet (PoE) | PoE |
| PoE Budget | 435 W |
| Performance | Switching capacity: 88 Gbps | Stacking bandwidth: 480 Gbps |
| Capacity | IPv4 routes: 24000 | NetFlow entries: 24000 | Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | RIP-1 RIP-2 EIGRP RIPng |
| Remote Management Protocol | SNMP 1 RMON 1 RMON 2 Telnet SNMP 3 SNMP 2c SSH CLI |
| Authentication Method | Kerberos Secure Shell (SSH) RADIUS TACACS |
| Features | Auto-negotiation ARP support trunking VLAN support auto-uplink (auto MDI/MDI-X) IGMP snooping Syslog support IPv6 support Rapid Spanning Tree Protocol (RSTP) support Multiple Spanning Tree Protocol (MSTP) support DHCP snooping Dynamic Trunking Protocol (DTP) support Port Aggregation Protocol (PAgP) support Trivial File Transfer Protocol (TFTP) support Access Control List (ACL) support Quality of Service (QoS) RADIUS support Virtual Route Forwarding-Lite (VRF-Lite) MLD snooping Dynamic ARP Inspection (DAI) PoE STP Root Guard Uni-Directional Link Detection (UDLD) Rapid Per-VLAN Spanning Tree Plus (PVRST ) IPv4 support Shaped Round Robin (SRR) Link Aggregation Control Protocol (LACP) Remote Switch Port Analyzer (RSPAN) layer 3 load balancing Energy Efficient Ethernet Cisco StackWise-480 technology Cisco StackPower technology Flexible NetFlow (FNF) |
| Compliant Standards | IEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.1D IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3af IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1x IEEE 802.1s IEEE 802.3at |
| RAM | 4 GB |
| Flash Memory | 2 GB |
| Status Indicators | Port transmission speed port duplex mode system status PoE |
| Interfaces | 24 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 PoE - 30 W | 1 x USB Type A | 1 x management (mini-USB) console - mini-USB Type B - Type B | 1 x management (RS-232) RS-232 - RJ-45 - RJ-45 | 1 x management (Gigabit LAN) 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 | 2 x network stack device |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Power Device | Internal power supply |
| Installed Qty | 1 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1 1 (with optional power supply) |
| Power Provided | 715 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| MTBF | 269450 hours |
| Compliant Standards | CISPR 22 Class A GOST BSMI CNS 13438 Class A CISPR 24 EN 61000-3-2 NOM EN 61000-3-3 EN55024 ICES-003 Class A RoHS UL 60950-1 Second Edition KCC FCC Part 15 A ISO 7779 CSA C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition IEC 60950-1 Second Edition VCCI Class A EN 55022 Class A |
| Software Included | Cisco IOS IP Base |
| Width | 17.5 in |
| Depth | 17.7 in |
| Height | 1.8 in |
| Weight | 16.31 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
