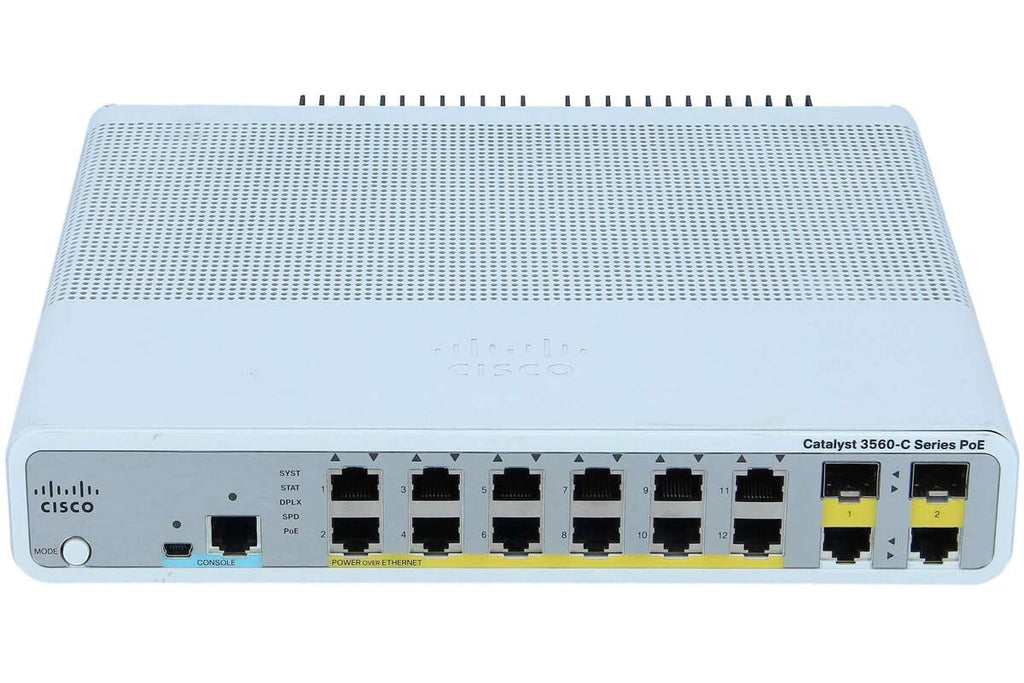

| WS-C3560C-12PC-S Specifications | ||
| Performance | Forwarding Bandwidth | 10 Gbps |
| Flash memory | 64 MB | |
| Memory DRAM | 128 MB | |
| Max VLANs | 1005 | |
| VLAN IDs | 4000 | |
| Maximum transmission unit (MTU) | Up to 9000 bytes | |
| Jumbo frames | 9018 bytes | |
| Connectors and cabling | Cisco Catalyst 3560-C and 2960-C with SFP-based ports: ● 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling ● 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling ● 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling ● 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling ● 1000BASE-SX -LX/LH, -ZX, -BX, -T*, -FX*, and CWDM SFP-based ports: LC fiber connectors (single/multimode fiber) ● 100BASE-LX, -BX, -FX: SFP-based ports: LC fiber connectors (single/multimode fiber) *GLC-T and GLC-GE-100FX are not supported | |
| Power connectors | ● Customers can provide power to a switch by using the internal power supply. The connector is located at the back of the switch. The internal power supply is an autoranging unit (3560CPD-8PT-S, 2960CPD-8TT-L, 2960CPD-8PT-L do not require a power supply). ● The internal power supply supports input voltages between 100 and 240VAC. ● Use the supplied AC power cord to connect the AC power connector to an AC power outlet. Note: The Cisco Catalyst 3560CPD-8PT-S, 2960CPD-8PT-L and 2960CPD-8TT-L have an option for an external power adapter if desired. | |
| Indicators | ● Per-port status: Link integrity, disabled, activity, speed, full-duplex ● System status: System, RPS, link status, link duplex, link speed | |
| Dimensions(H x W x D) | 1.75x10.6x9.4 Inches | |
| Weight | 4.1 Pounds | |
| Environmental ranges | Operating* temperature up to 5000 ft (1524 m) | -5°C to 45°C** 23°F to 113°F |
| Operating* temperature up to 10,000 ft (3048 m) | -5°C to 45°C 23°F to 113°F | |
| Storage temperature up to 15,000 ft (4572 m) | -25°C to 70°C -13°F to 158°F | |
| Operating altitude | Up to 3048 m Up to 10,000 ft | |
| Storage altitude | Up to 4000 m Up to 15,000 ft | |
| Operating relative humidity | 5% to 95% noncondensing | |
| Storage relative humidity | 5% to 95% noncondensing | |
| * Minimum ambient temperature for cold start is 0°C ( 32°F). ** FE SKUs only GE SKU have a max operation temp of 40C. | ||
| Acoustic noise | 0dB (fanless) | |
| Mean time between failure (MTBF) | 357,027 |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
