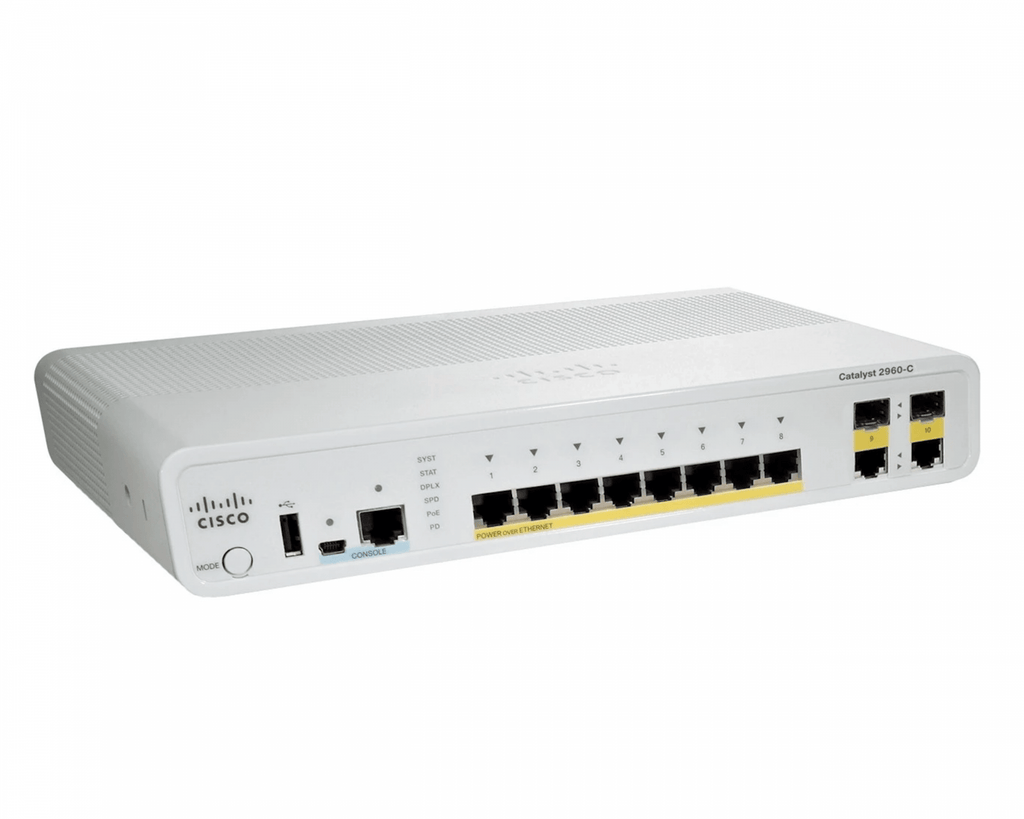

| Brand | Cisco |
| Model | WS-C2960C-8TC-S |
| Series | Cisco Catalyst 2960-C Series Compact Switches |
| Cisco Product Description | 2960C Switch 8 FE, 2 x Dual Purpose Uplink |
| Product Type | Compact fixed-configuration Fast Ethernet switch |
| Fast Ethernet Ports | 8 x 10/100 |
| Access Port Connector | RJ-45, 2-pair Category 5 UTP for 100BASE-TX |
| Uplinks | 2 x 1G dual-purpose, copper or SFP |
| Uplink Copper | 1000BASE-T, RJ-45, 4-pair Category 5 UTP |
| Uplink SFP | 1000BASE-SX, LX/LH, ZX, BX, CWDM; 100BASE-LX, BX, FX (LC fiber) |
| Unsupported SFPs | GLC-T, GLC-GE-100FX |
| PoE Output | None |
| Forwarding Bandwidth | 10 Gbps |
| Forwarding Rate (64-byte Packets) | 4.2 mpps |
| DRAM | 128 MB |
| Flash Memory | 64 MB |
| VLAN IDs | 4000 |
| Maximum VLANs | 64 |
| MTU | Up to 9000 bytes |
| Jumbo Frames | 9018 bytes |
| Auto-Negotiation | Yes, half or full duplex on all ports |
| Auto-MDIX | Yes |
| Cooling | Fanless (0 dB) |
| Power Supply | Internal, autoranging |
| AC Input Voltage | 100 to 240 VAC |
| AC Input Current | 0.21 to 0.1 A |
| Power Consumption | 11 W (measured at 100% and 5% throughput) |
| Console Access, Compact Switch Family | Mini USB and RS-232 |
| Dimensions (H x W x D) | 1.75 x 10.6 x 8.4 in. (4.44 x 26.9 x 21.3 cm) |
| Weight | 2.8 lb (1.27 kg) |
| Operating Temperature | -5 to 45 C (23 to 113 F); cold start minimum 0 C |
| Storage Temperature | -25 to 70 C (-13 to 158 F) |
| Operating Humidity | 5% to 95%, noncondensing |
| Operating Altitude | Up to 3048 m (10,000 ft) |
| MTBF | 516,980 hours |
| Ethernet Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x |
| Layer 2 Standards | IEEE 802.1D, 802.1p, 802.1Q |
| Safety and Compliance | UL 60950-1, CE Marking, FCC Part 15 Class A, VCCI Class A, RoHS 6 |
| Mounting Accessories (Sold Separately) | 19-inch rack brackets, 23- and 24-inch rack brackets, DIN rail mount, magnet and mounting tray, cable guard |
| Related Models | WS-C2960C-8TC-L (same ports and uplinks), WS-C2960CG-8TC-L (8 Gigabit ports), WS-C2960C-8PC-L (8 PoE ports), WS-C2960C-12PC-L (12 PoE ports) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
