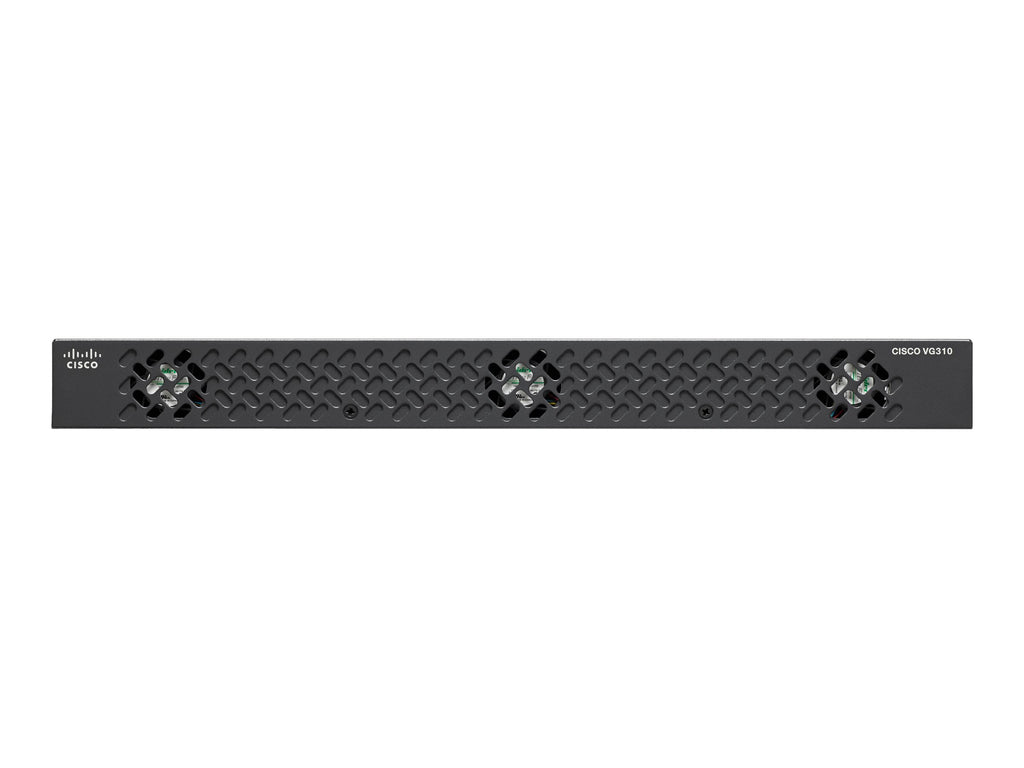

CISCO VG310 MODULAR 24 FXS PORT VOICE OVER IP GATEWAY NGMP300DRA

The Cisco VG Series Analog Voice Gateways are Cisco IOS software-based. The Cisco VG310 is a 24-port gateway. The gateway connects analog phones, fax machines, modems, and speakerphones to an enterprise IP voice system, so you can use them as extensions to your Cisco or third-party IP call-control system. Having these devices tightly integrated with the IP-based phone system is advantageous for increased manageability, scalability, and cost-effectiveness. The Cisco VG Series supports high to low concentrations of analog voice ports for modem calls, fax calls, and analog supplementary services.

The VG310 is built on the Cisco 2901 platform, powered by a single high-performance core processor. It provides high availability during power failure through an external universal power supply (UPS).

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

Device Type	VoIP phone adapter
Height (Rack Units)	1U
Width	17.5 in
Depth	13.5 in
Height	1.7 in
Weight	15.23 lbs
RAM	1 GB SDRAM
Flash Memory	256 MB
Form Factor	Rack-mountable
Connectivity Technology	Wired
Data Link Protocol	Ethernet Fast Ethernet Gigabit Ethernet
Network / Transport Protocol	DHCP DNS
Routing Protocol	HSRP
Remote Management Protocol	Telnet SNMP 3 HTTP TFTP CLI
Features	Wall mountable
Authentication Method	RADIUS TACACS
Compliant Standards	IEEE 802.3 ANSI T1.101 ITU-T G.823 ITU-T G.824
VoIP Protocols	MGCP SCCP SIP H.323 v4 RTP SRTP
Voice Codecs	G.711 G.729a T.38
Telephony Interfaces	24 phone (FXS)
IP Telephony Features	Caller ID call waiting automatic fax/modem detection and pass-through call hold call transfer
Analog Ports Qty	24
Supported Flash Memory Cards	CompactFlash Card
Expansion Slots	1 (total) / 1 (free) x EHWIC \| 1 (total) / 0 (free) x PVDM
Interfaces	2 x 1000Base-T - RJ-45 \| 1 x auxiliary - RJ-45 \| 1 x console - RJ-45 \| 1 x mini-USB \| 1 x USB 2.0 - Type A \| 24 x FXS - RJ-21

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
