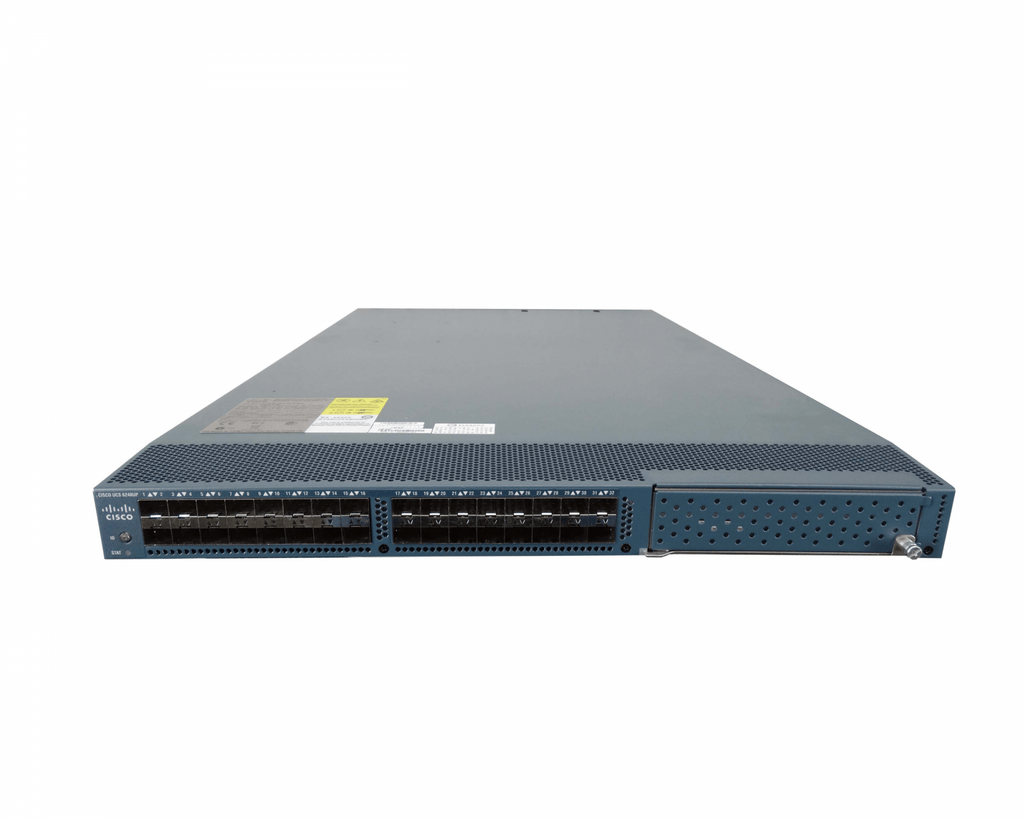

Cisco UCS 6248UP Fabric Interconnect Switch
Roll over image to zoom in Click on image to zoom
Cisco UCS 6248UP Fabric Interconnect Switch

Cisco UCS 6248UP Fabric Interconnect Switch

Save 80%
Condition:  refurbished     MPN:  UCS 6248UP
Price:
$195.00 $999.00
Stock:
In stock

Tech Overview

Cisco UCS 6248UP Fabric Interconnect Switch
View full product specifications

Overview

Device Type Switch - 32 ports - managed
Enclosure Type Rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 12 x 10 Gigabit / FCoE SFP
Performance Throughput: 960 Gbps
MAC Address Table Size 32000 entries
Jumbo Frame Support 9216 bytes
Remote Management Protocol RMON
Features Layer 2 switching, IGMP snooping, Data Center Bridging Exchange (DCBX) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST )
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s
Interfaces 1 x 1000Base-T RJ-45 management ¦ 32 x SFP
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power Device Internal power supply - hot-plug
Installed Qty 0 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1 1 (with optional power supply)
Compliant Standards BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, GB 4943, CAN/CSA C22.2 No. 60950-1
Width 17.3 in
Depth 30 in
Height 1.7 in
Min Operating Temperature 32 °F
Max Operating Temperature 104 °F
Humidity Range Operating 5 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 - 95% (non-condensing)

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
