| Brand | Cisco |
| Model | UCS-IOM-2204XP |
| Series | Cisco UCS 2200 Series Fabric Extenders |

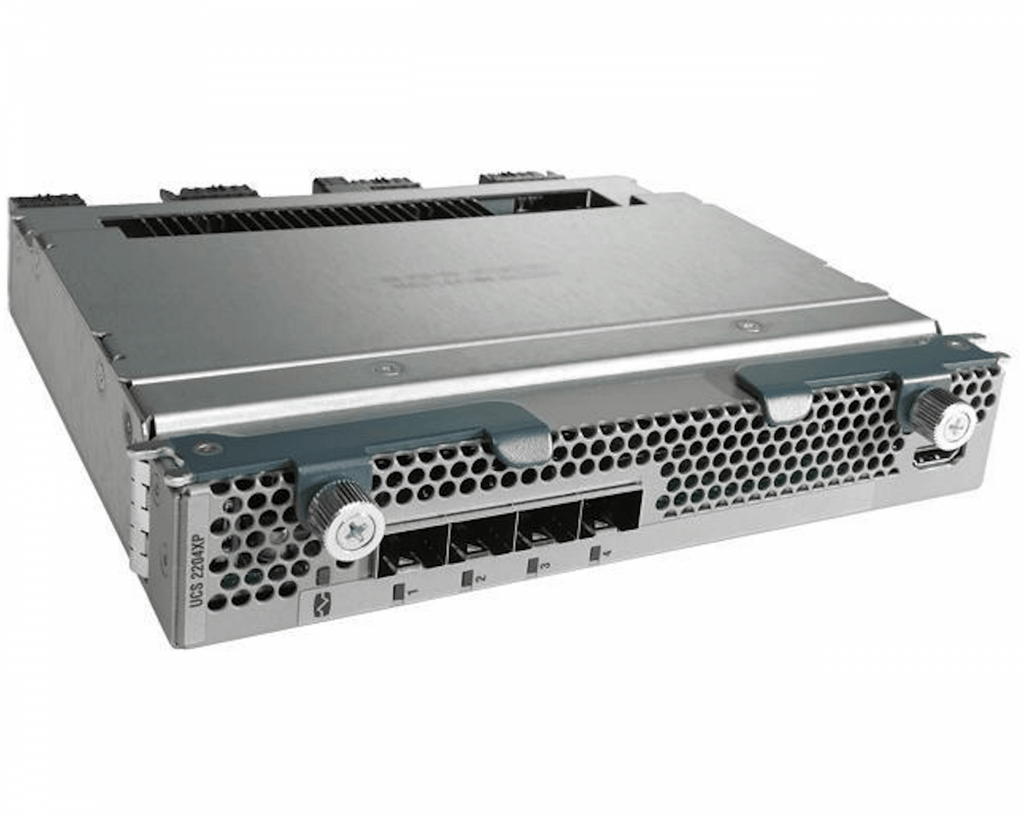

| Product Description | UCS 2204XP I/O Module (4 External, 16 Internal 10Gb Ports) |
| Product Type | Fabric extender (I/O module) |
| Compatible Chassis | Cisco UCS 5108 blade server chassis |
| External Ports | 4 x 10 Gigabit Ethernet SFP+, FCoE-capable |
| Internal Ports | 16 x 10 Gigabit Ethernet through the midplane |
| Bandwidth | Up to 80 Gbps of I/O to the chassis (redundant pair) |
| Modules per Chassis | Up to 2 |
| Link Aggregation | Fabric PortChannel, IEEE 802.3ad |
| High Availability | Active-active data plane with failover, active-passive management plane |
| VLANs and VSANs | Up to 1024 |
| Jumbo Frames | Up to 9216 bytes |
| Pause Frames | IEEE 802.3x |
| Hardware Queues per Port | 8 |
| Quality of Service | IEEE 802.1p CoS, CoS-based egress queuing, strict-priority queuing, WRR scheduling |
| Flow Control | Priority flow control (PFC) |
| Standards | IEEE 802.1p, 802.1Q, 802.3, 802.3ad, 802.3ae |
| Dimensions (H x W x D) | 7.64 x 1.36 x 7.2 in |
| Weight | 2.5 lb (1.134 kg) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Nonoperating Temperature | -40 to 158 F (-40 to 70 C) |
| Humidity | 5 to 95% noncondensing |
| Operating Altitude | 0 to 10,000 ft (0 to 3000 m) |
| Safety | UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943 |
| EMC Emissions | 47CFR Part 15 Class A, AS/NZS CISPR22 Class A, CISPR22 Class A, EN55022 Class A, ICES003 Class A, VCCI Class A |
| EMC Emissions, Additional | EN61000-3-2, EN61000-3-3, KN22 Class A, CNS13438 Class A |
| EMC Immunity | EN50082-1, EN61000-6-1, EN55024, CISPR24, EN300386, KN 61000-4 series |
| Related Models | UCS-IOM2204-8FET (UCS 2204XP I/O Module with 8 FET Optics), UCS-IOM-2204XP++= (TAA UCS 2204XP I/O Module) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
