Cisco Systems Nexus N3K-C34180YC48P 10/25G SFP 6P 40/100G

Roll over image to zoom in Click on image to zoom

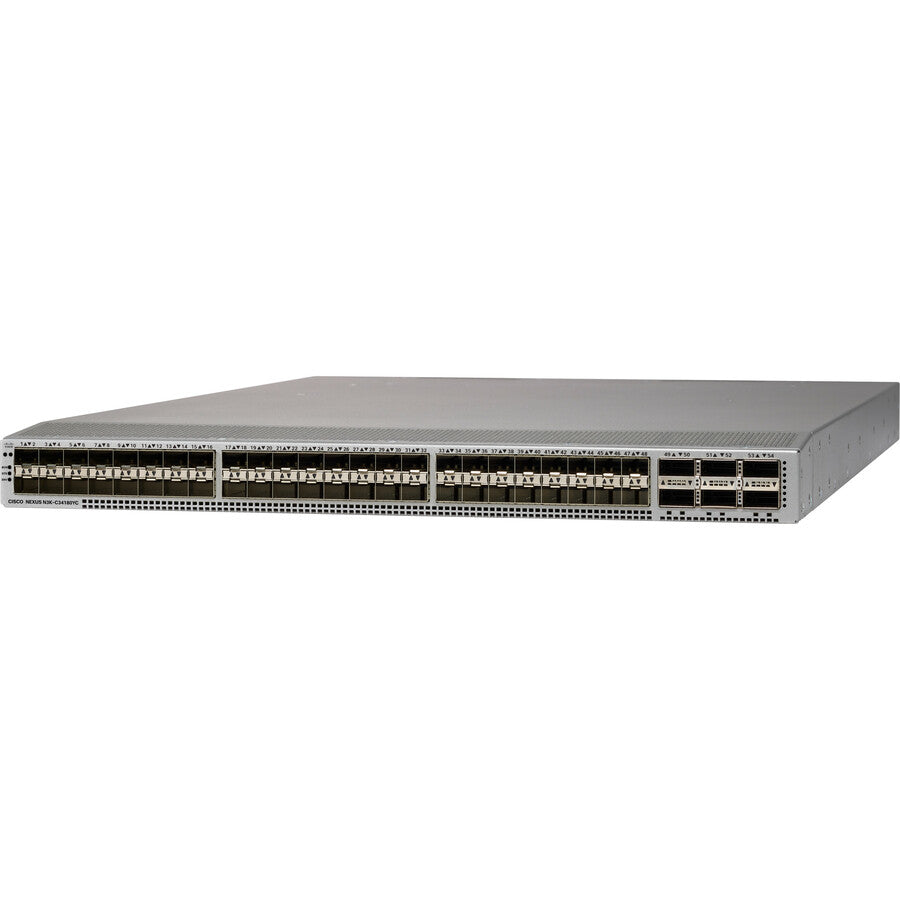

CISCO NEXUS N3K-C34180YC48P

N3K-C34180YC is the Nexus 34180YC programmable switch, providing 48 10/25G SFP and 6 40/100G QSFP28 ports. The Cisco Nexus 34180YC programmable switch is a high-speed, low-power, high-density fixed data center switch. Joining the industry’s widely deployed Cisco Nexus 3000 Series portfolio, it supports enterprise applications, service provider hosting, financial networks applications, and secured cloud computing environments. This switch supports a wide range of port speeds, with flexible combinations of 10-, 25-, 40-, and 100-Gigabit Ethernet connectivity and improved scalability and configurability because of the switch’s capacity to modify and customize packet-forwarding behavior.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

N3K-C34180YC Specification
Ports	48 x SFP /SFP28 and 6 x QSFP /QSFP28 ports
Port speeds	10 and 25 Gb on SFP ports 40, 4x10, 100, and 4x25 Gb on QSFP ports
CPU	4 cores
System memory	16 GB
SSD drive	128 GB
System buffer	20 MB
Management ports	2 ports: 1 RJ-45 and 1 SFP
USB ports	1
RS-232 serial ports	1
Power supplies (up to 2)	500W AC, 930W DC, or 1200W HVAC/HVDC
Typical power (AC/DC)	190W
Maximum power (AC/DC)	350W
Input voltage AC	100 to 240V
Input voltage (high-voltage AC [HVAC])	200 to 277V
Input voltage DC	–48 to –60V
Input voltage (high-voltage DC [HVDC])	–240 to –380V
Frequency (AC)	50 to 60Hz
Fans	4
Airflow	Port-side intake and exhaust
Physical dimensions (H x W x D)	1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
Weight	18.4 lb. (8.4 kg)
Acoustics	63.9 dBA at 50% fan speed, 68.9 dBA at 70% fan speed, and 77.4 dBA at 100% fan speed
RoHS compliance	Yes
MTBF	347,890 hours
LAN Enterprise license (N3K‑LAN1K9)	· Layer 3 features, including full OSPF, EIGRP, BGP, and VXLAN
Cisco Nexus Data Broker license (NDB-FX-SWT-K9)	· License for using the TAP and SPAN aggregation functions with Cisco Nexus Data Broker
Cisco ONE™ Foundation for Networking	Cisco ONE Foundation for Networking includes the following integrated products to help you deploy an architecturally flexible data center network: · Cisco Enterprise Layer 3 Services (LAN) · Cisco Prime® Infrastructure, Cisco Prime Data Center Network Manager (DCNM), and Cisco Energy Management (JouleX) · Cisco Intelligent Traffic Director (ITD) · Cisco Remote Integrated Services Engine (RISE)
Operating temperature	32 to 104°F (0 to 40°C)
Non-operating (storage) temperature	–40 to 158°F (–40 to 70°C)
Humidity	5 to 95% (noncondensing)
Altitude	0 to 13,123 ft (0 to 4000 m)

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
