| SFP-10/25G-LR-S= Specification | |||

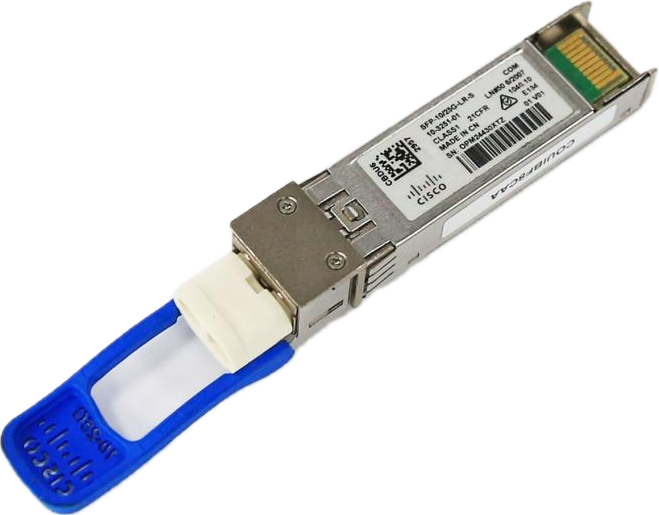

| Description | Cisco 10/25GBASE-LR SFP28 Module for SMF | ||
| 25G Port cabling specifications | |||
| Cable Distance | 10km | ||
| Max Power Consumption (W) | 1.3 | ||
| Pull Tab Color | Blue | ||
| SFP28 port cabling specifications | |||
| Wavelength (nm) | 1310 | ||
| Cable Type | SMF | ||
| Core Size (Microns) | G.652 | ||
| Modal Bandwidth | \ | ||
| Cable Distance | 10km | ||
| Optical transmit and receive specifications | |||
| Type | Transmit Power (dBm) | Receive Power (dBm) | Transmit and Receive Wavelength (nm) |
| 10G | Max: 0.5 Min:-8.2 | Max: 0.5 Min:-14.4 | 1260 to 1355 (10G) |
| 25G | Max: 0.5 Min:-14.4 | Max: 2 Min:-13.3 | 1295 to 1325 (25G) |
| Environmental Conditions and Power Requirements | |||
| Commercial temperature | 0 to 70°C (32 to 158°F) | ||
| Storage temperature | -40 to 85°C (-40 to 185°F) | ||
| Regulatory and Standards compliance | |||
| Standards | •SFF-8402: SFP 28 Gb/s 1x Pluggable Transceiver Solution (SFP28) - Rev 1.0 March 30, 2014 •SFF-8472: Diagnostic Monitoring Interface for Optical Transceivers - Rev 12 August 29, 2014 •IEEE 802.3™- 2015 IEEE Standard for Ethernet •IEEE P802.3by™- 2016 Amendment 2: Media Access Control Parameters, Physical Layers, and Management Parameters for 25 Gb/s Operation •IEEE P802.3cc™ - 2017 Amendment 11: Physical Layer and Management Parameters for Serial 25 Gb/s Ethernet Operation Over Single-Mode Fiber •RoHS 6 | ||
| Safety | • Laser Class 1 21CFR-1040 LN#50 7/2001 •Laser Class 1 IEC60825-1 •Cable jacket of SFP copper modules is UL E116441 Compliant •SFP copper cables are ELV Compliant |
