Cisco QSFP-40G-LR4-S 40GBase LR4 QSFP Module - New

Roll over image to zoom in Click on image to zoom

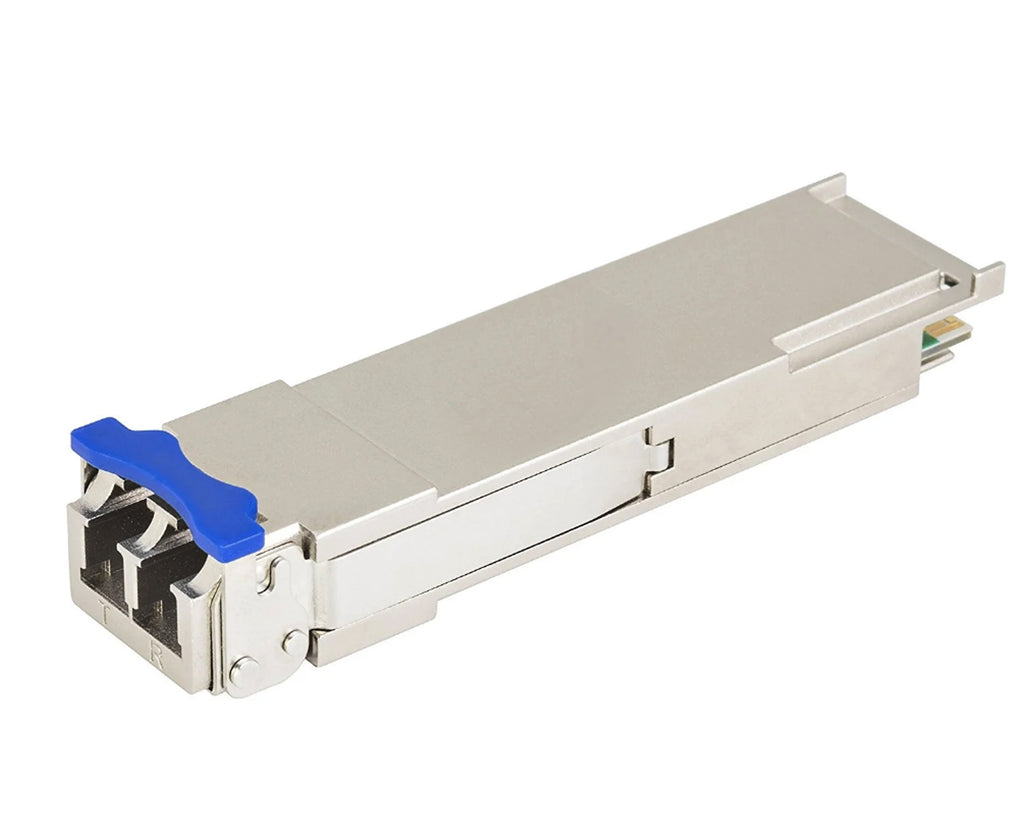

Cisco QSFP-40G-LR4-S

The QSFP+ module is designed for use in 40GBASE Ethernet throughput up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

QSFP-40G-LR4-S Specifications
Dimensions	13.5 x 18.4 x 72.4 mm
QSFP Port cabling specifications
Wavelength (nm)	1310
Cable Type	SMF
Core Size (microns)	G.652
Modal Bandwidth (MHz-km)	\
Cable Distance	10km
Power Consumption (W)	3.5
Pull Tab Color	Blue
Optical characteristics
Type	40GBASE-LR4, 1310 nm, SMF
Transmit Power (dBm)	Max: 2.3 per lane Min:-7.0 per lane
Receive Power (dBm)	Max: 2.3 per lane Min:-13.7 per lane
Transmit and Receive Wavelength (nm)	Four lanes: 1271, 1291, 1311, 1331
Environmental conditions
Commercial temperature	0 to 70°C (32 to 158°F)
Storage temperature	-40 to 85°C (-40 to 185°F)
Regulatory and standards compliance
Standards	•GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •IEEE 802.3ba (-SR4, -LR4) •IEEE 802.3ae (-CSR4) •QSFP MSA SFF-8436 •SFP MSA SFF-8431 and -8461 •RoHS 6
Safety	•Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are E

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
