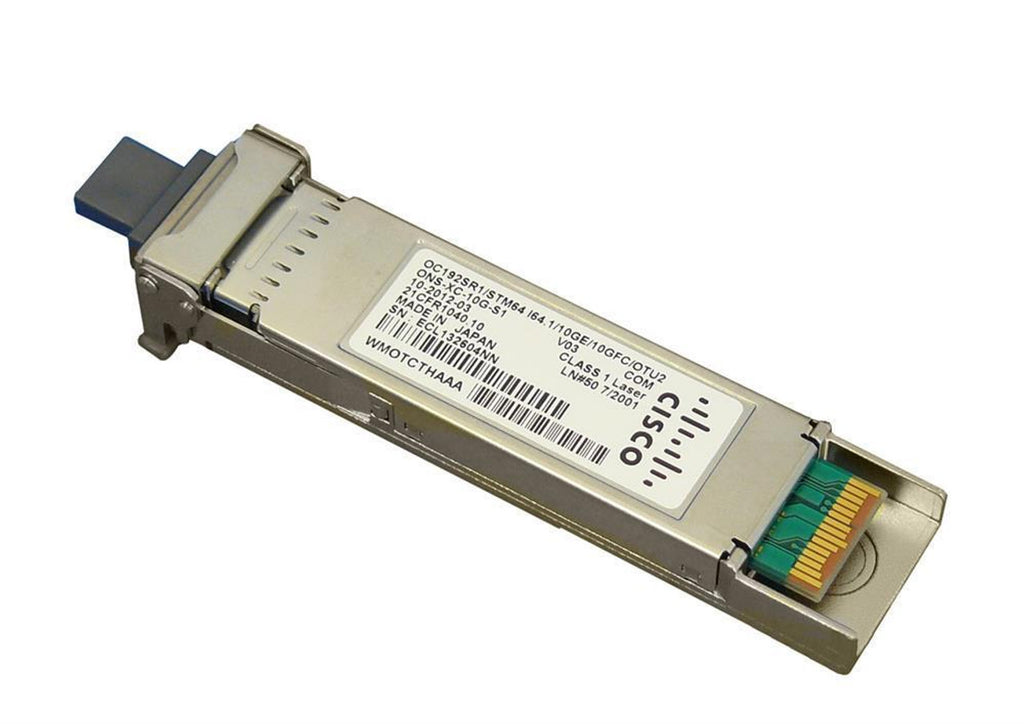

| Device Type | XFP transceiver module |
|---|---|
| Form Factor | Plug-in module |
| Connectivity Technology | Wired |
| Cabling Type | 10GBase-LR |
| Data Link Protocol | SONET/SDH 10 GigE 10Gb Fibre Channel |
| Data Transfer Rate | 10 Gbps |
| Optical Wave Length | 1310 nm |
| Line Rate | OC-192/STM-64 |
| Max Transfer Distance | 6.2 miles |
| Interfaces | 1 x network - LC single-mode x 2 |
| Compatible Slots | 1 x XFP |
| Width | 0.7 in |
| Depth | 3.1 in |
| Height | 0.4 in |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 158 °F |
| Designed For | P/N: 15454E-10G-XR 15454E-10G-XR= |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
