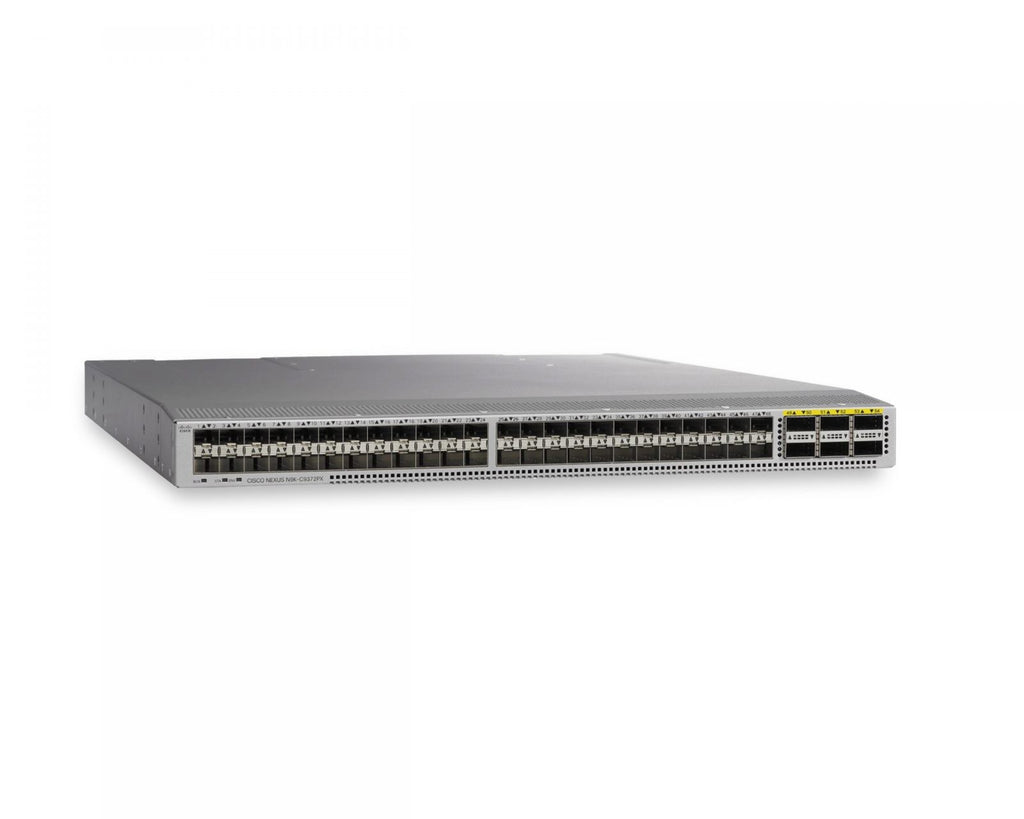

| Manufacturer | Cisco |
| Product Line | Nexus 9000 |
| Series | Nexus 9300 |
| Product Type | Layer 2/3 Data Center Switch |
| Access Ports | 48x 1/10G SFP+ |
| Uplink Ports | 6x 40G QSFP+ |
| Management Port | 1x 10/100/1000 RJ45 |
| Switching Capacity | 1.44 Tbps |
| Forwarding Rate | 1,150 Mpps |
| Buffer | 25 MB shared |
| MAC Address Table | 96,000 entries |
| VLANs | 4,096 |
| IPv4 LPM Entries | 128,000 |
| Multicast Routes | 32,000 |
| VRF Entries | 1,000 |
| ACL Entries | 4,000 ingress; 1,000 egress |
| ECMP | 64-way |
| Layer 2 | 802.1Q VLANs; MSTP; RPVST+; vPC; LACP; VXLAN/VTEP; BGP EVPN |
| Layer 3 Routing | BGP; OSPFv2/v3; EIGRP; RIPv2; PIM-SM/SSM; HSRP; VRRP |
| Security | MACsec; ACLs; CoPP; RBAC; DHCP snooping |
| Management | NX-OS; ACI mode; POAP; NX-API; NETCONF/YANG; Python scripting; streaming telemetry; SNMP; SSH |
| CPU | Dual-core 2.5 GHz x86 |
| Memory | 16 GB RAM; 64 GB SSD |
| Power Supplies | 2x hot-swappable; 650W AC / 930W DC / 1200W HVAC/HVDC |
| Cooling | Hot-swappable fan modules; port-side intake or exhaust airflow |
| Operating System | Cisco NX-OS |
| Form Factor | 1U rack-mountable |
| Dimensions | 1.72 x 17.3 x 22.5 in |
| Weight | 22.2 lbs (without PSU/fans) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
