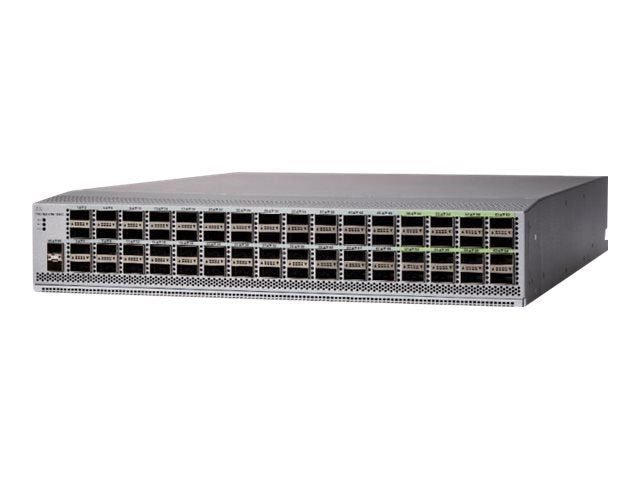

| Product & Series | Cisco N9K-C9364C (Cisco N9364C ACI Spine Switch), part of the Cisco Nexus 9000 Series |
| Form Factor | 2RU |
| Ports | 64 x 40/100G QSFP28 ports; 2 x 1/10G SFP+ ports |
| Breakout | Breakout cables are not supported |
| Throughput | 12.84 Tbps |
| Packet Rate | 4.3 Bpps |
| Packet Buffer | 40 MB |
| MACsec | Wire-rate MACsec encryption on the last 16 ports |
| Security and Telemetry | VXLAN, VTEP-to-VTEP overlay encryption, CloudSec, Streaming Statistics Export (SSX) |
| Operating Modes | Cisco ACI spine mode or NX-OS mode |
| IPv4 Routes | LPM routes 7,000 default or 262,000 LPM heavy; host entries 96,000 default or 262,000 LPM heavy |
| IPv6 Routes | LPM routes 3,500 default or 131,000 LPM heavy; host entries 96,000 default or 262,000 LPM heavy |
| MAC Address Entries | 92,000 |
| Multicast Routes | 8,000 default or 32,768 LPM heavy |
| IGMP Snooping Groups | 8,000 |
| ACL Entries | Per slice 4,000 ingress and 2,000 egress; maximum 16,000 ingress and 8,000 egress |
| VLANs | 4,096 (127 reserved) |
| VRF Instances | 1,000 |
| ECMP | 64 paths, 1,024 groups |
| VTEPs | 256 |
| CPU and Memory | Broadwell-DE CPU, 4 cores; 32 GB system memory; 128 GB SSD |
| Console and Management | 1 x RS-232 serial console; 2 management ports (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP); 1 x USB |
| Power Supplies | NXA-PAC-1200W-PE and NXA-PAC-1200W-PI (1200W AC); N9K-PUV-1200W (1200W, 200 to 277 VAC or 240 to 380 VDC); NXA-PDC-930W-PE and NXA-PDC-930W-PI (930W, -48V DC); NXA-PHV-1100W-PE and NXA-PHV-1100W-PI (1100W HV AC and DC) |
| Input Voltage | 100 to 240V AC or -40 to -72V DC; -48 to -60V DC nominal |
| Power Consumption | Typical 429W (AC); maximum 1245W (AC) |
| Fans and Airflow | Hot-swappable dual fan trays with redundant fans; NXA-FAN-160CFM-PI, NXA-FAN-160CFM-PE, NXA-FAN-35CFM-PI, NXA-FAN-35CFM-PE; port-side intake or port-side exhaust |
| Dimensions (H x W x D) | 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm) |
| Weight | 36.9 lb (16.74 kg) with power supplies and fans; 27.4 lb (12.43 kg) without |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Storage Temperature | -40 to 158 F (-40 to 70 C) |
| Humidity | 5 to 90 percent, noncondensing |
| Altitude | 0 to 13,123 ft (0 to 4000 m) |
| MTBF | 257,860 hours |
| Mounting Accessories | N9K-C9300-ACK, N9K-C9300-RMK, NXK-ACC-KIT-2RU |
| Compliance | RoHS compliant |
| Sibling Comparison | N9332C is 1RU with 32 QSFP28 ports, 6.4 Tbps and 4.4 Bpps |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
