| Manufacturer | Cisco |

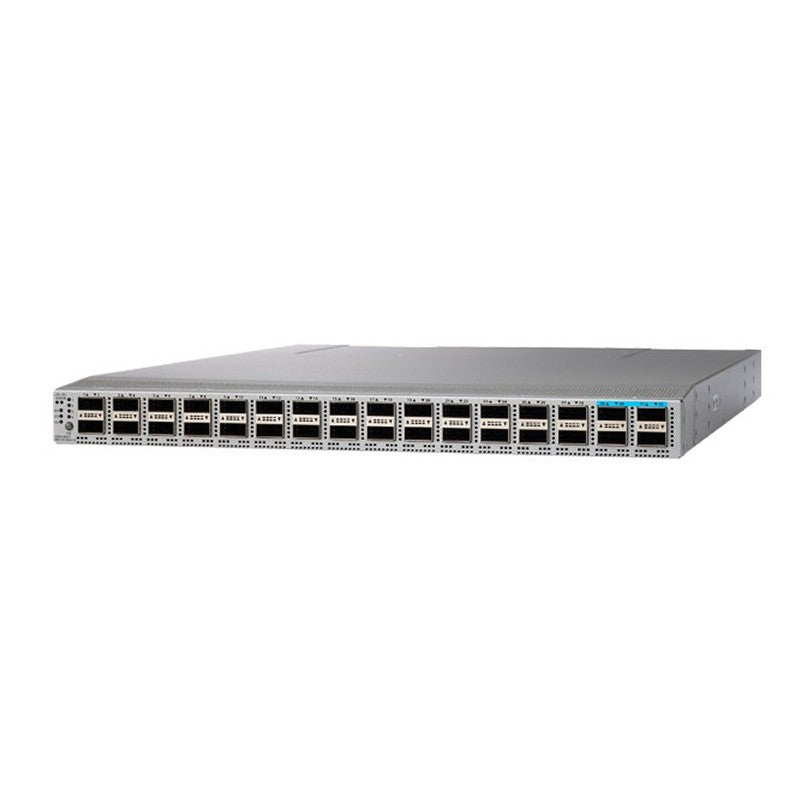

| Model | N9K-C93180LC-EX |
| Series | Nexus 9300-EX |
| Switch Type | Layer 3 Managed |
| ASIC | Cisco Cloud Scale |
| Downlink Ports | 24 x 40/50GE QSFP+ |
| Uplink Ports | 6 x 40/100GE QSFP28 (ports 25, 27, 29, 30, 31, 32) |
| Flexible Configurations | Up to 32x 40/50G QSFP+, or up to 18x 100G QSFP28, or up to 72x 10G (breakout) |
| Switching Capacity | 3.6 Tbps |
| Forwarding Rate | 2.6 Bpps |
| MAC Address Table | 512,000 entries |
| System Buffer | 40 MB |
| CPU | 4 cores |
| System Memory | 24 GB |
| SSD | 64 GB |
| Operating Modes | NX-OS or ACI |
| Routing | OSPF, BGP, EIGRP, RIP, HSRP, PIM-SM, MSDP, ECMP, MPLS |
| Virtualization | VXLAN EVPN, vPC, VRF (up to 1,000 / max 16,000) |
| VLANs | 4,096 |
| High Availability | vPC, ISSU, 64-way ECMP, N+1 redundant PSU/fans |
| Management | 1 x RJ-45, 1 x SFP+ mgmt, 1 x USB, 1 x RS-232 console |
| Programmability | NETCONF/RESTCONF, Ansible, Puppet, Chef, open APIs |
| Power Supply | Dual hot-swappable (500W AC, 930W DC, or 1200W HVAC/HVDC) |
| Fans | 4 (hot-swappable) |
| Typical Power | 210W |
| Maximum Power | 470W |
| Airflow | Front-to-back or back-to-front (configurable) |
| Form Factor | Rack-mountable (1U) |
| Dimensions (H x W x D) | 1.73 x 17.3 x 22.5 in |
| Weight | 17.2 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
