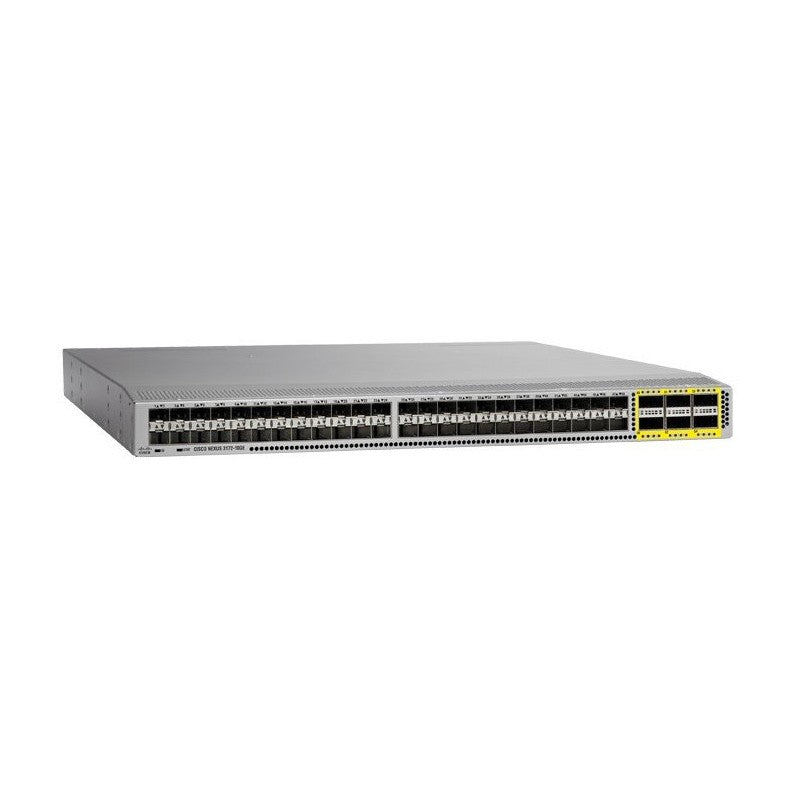

CISCO NEXUS N3K-C3172PQ-XL ETHERNET SWITCH

Roll over image to zoom in Click on image to zoom

The Cisco Nexus 3172PQ-XL (N3K-C3172PQ-XL) is a 1 rack unit (RU) switch with 8GB of RAM and dual-core 2.5GHz x86 CPUs and 10-Gigabit enhanced small form-factor pluggable (SFP ) ports with 48 SFP ports and 6 Quad SFP (QSFP ) ports. Each SFP port can operate in 100-Mbps, 1-Gbps, or 10-Gbps mode, and each QSFP port can operate in native 40-Gbps or 4 x 10-Gbps mode. The Cisco Nexus 3172PQ-XL is a minor hardware revision of the Cisco Nexus 3172PQ respectively. Enhancements include an additional 4 GB of memory (for a total of 8 GB). The additional memory allows users to perform object-model programming.

Product Code	N3K-C3172PQ-XL
Enclosure Type	1 RU
Switching Capacity	1.4-Tbps
Forwarding Rate	Up to 1 bpps
Configurable Maximum Transmission Units (MTUs)	Up to 9216 bytes (jumbo frames)
Ports	48 x SFP ports and 6 x Quad SFP (QSFP ) ports
System Memory	8 GB
Number of power supplies	2
Typical operating power	143 W
Dimensions (H x W x D)	4.4 x 43.9 x 43.2 cm
Net Weight	8 4 kg

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
