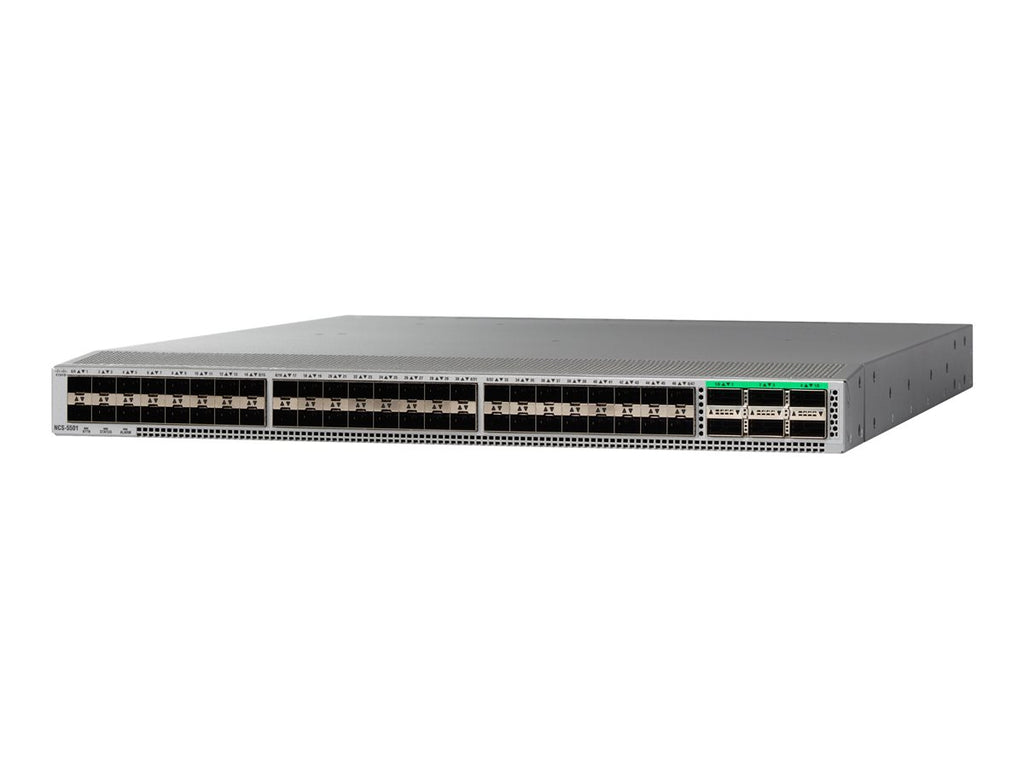

| Model | Cisco NCS-5001 |
| Series | Cisco NCS 5000 Series |
| Product | Cisco NCS 5001 Routing System |
| Form Factor | 1RU |
| SFP+ Ports | 40 ports, GE and 10GE (16 regular, 24 DWDM and ZR capable) |
| QSFP28 Ports | 4 ports, 100GE |
| Throughput | Up to 800 Gbps |
| DRAM | 16 GB |
| Packet Buffer | 16 MB |
| Storage | 32 GB eUSB |
| Software | Cisco IOS XR |
| Console and USB | Management console and USB interface on the fan side |
| Power Supplies | 2 x 1+1 redundant, hot-swappable, AC or DC |
| Fans | 2 x N+1 redundant, hot-swappable fan modules |
| Airflow | Front to back or back to front (port-side intake or exhaust) |
| Power Input | AC 90 to 265V, 50 to 60 Hz or DC -40V to -72V |
| Typical Power Consumption | 200W |
| Maximum Power Consumption | 275W |
| Dimensions (H x W x D) | 1.72 x 17.44 x 19.3 in (4.3688 x 44.2976 x 49.022 cm) |
| Weight | 20.5 lb (9.29 kg) |
| Operating Temperature | 0 to 40 C nominal, 0 to 55 C short term |
| Operating Humidity | 5% to 95% noncondensing nominal, 5% to 93% short term |
| Storage Temperature | -40 to 70 C |
| Storage Humidity | 93% at 40 C per NEBS GR-63-CORE |
| Operating Altitude | 0 to 3000 m (0 to 10,000 ft) |
| NEBS | Designed to meet GR-63-CORE and GR-1089-CORE |
| Layer 2 | 802.1Q, Q-in-Q, 802.1ad, LACP bundles up to 32 ports, jumbo frames up to 9216 bytes, L2 ingress ACLs, IRB |
| Layer 3 | IPv4 and IPv6, static, OSPFv2, OSPFv3, IS-IS, BGP, BFD, 32-way ECMP, HSRP/VRRP, L3VPN |
| Multicast | PIM-SM, PIM-SSM, IGMP versions 2 and 3 |
| MPLS | Label switching, LDP, EoMPLS |
| Segment Routing | SR transport, IS-IS and OSPF extensions, BGP egress peer engineering, SR-TE |
| QoS | Classification by L2 CoS, L3 DSCP, IP ACL, IP precedence and RTP/UDP ports, DSCP marking, 8 user-traffic queues, priority queuing |
| Automation | Zero-touch provisioning, iPXE, NETCONF/YANG |
| Security | ACLs, control-plane and management-plane protection, routing authentication, AAA, TACACS+, SSH, SNMPv3 |
| Management | MIB, XML, JSON, GPB, SNMP, MPLS OAM, Ethernet OAM |
| Supported 100G Optics | QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-100G-CWDM4-S, QSFP-100G-CUxM copper cables 1 to 5 m, QSFP-100G-AOCxM cables 1 to 30 m |
| Supported 10G Optics | SFP-10G-SR, SFP-10G-LR, SFP-10G-SR-X, SFP-10G-LR-X, SFP-10G-ER, SFP-10G-ZR, SFP-10G-AOC, SFP-H10GB-CU, SFP-H10GB-ACU, DWDM-SFP10G-xxxx, CWDM-SFP10G-xxxx |
| Supported 1G Optics | GLC-SX-MMD, GLC-LH-SMD, GLC-EX-SMD, GLC-ZX-SMD, GLC-TE, CWDM-SFP-xxxx, DWDM-SFP-xxxx |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
