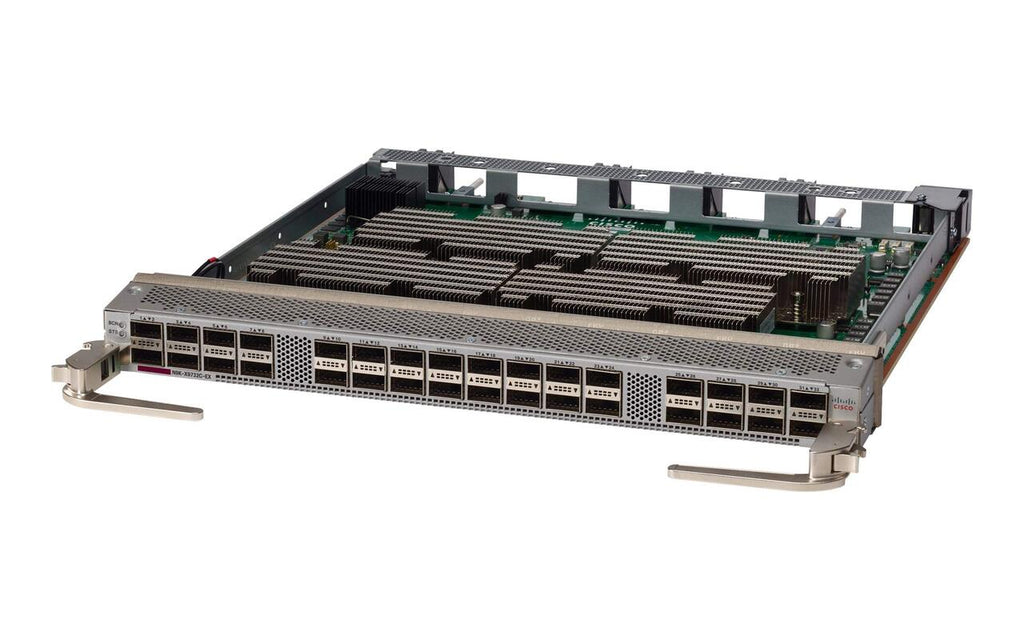

| Model | Cisco N9K-X9732C-FX |
| Series | Cisco Nexus 9500 Series |
| Module Type | Cloud-scale line card, N9500 32p 100G QSFP |
| Ports | 32 x 100GbE QSFP28 |
| Breakout Modes | 1x100G, 2x50G, 1x40G, 4x25G, 4x10G, 1x1/10G, subject to breakout cables and software support |
| ASIC | Cisco cloud-scale ASIC |
| Packet Buffer | 160 MB |
| Line-Rate Encryption | MACsec |
| Streaming Analytics Export | Off chip |
| Operating Mode | NX-OS |
| Compatible Chassis | Nexus 9504, 9508, 9516 |
| Fabric Modules for Maximum Bandwidth | 4 |
| Hot Swap | Supported |
| Airflow | Port-side intake |
| Typical Power | 520W |
| Maximum Power | 840W |
| MTBF | 429,090 hours |
| Weight | 15 lb (6.8 kg) |
| MAC Addresses | Up to 512K |
| IPv4 LPM Routes | Up to 2M |
| IPv6 LPM Routes | 1,900 to 1M, depending on prefix length |
| IPv4 Host Entries | Up to 2M |
| IPv6 Host Entries | Up to 32K |
| Multicast Routes | Up to 131K |
| VLANs | Up to 4,096 |
| VRFs | Up to 16K |
| ECMP Paths | Up to 64 |
| Port Channels | Up to 512, up to 32 links each |
| Spanning Tree | MST up to 64 instances, RPVST up to 4,000 instances |
| HSRP Groups | Up to 490 |
| VTEPs | Up to 10K |
| Ordering Description | Cisco N9500 32p 100G QSFP cloud-scale line card |
| Part Number | N9K-X9732C-FX (spare: N9K-X9732C-FX=) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
