| Brand | Cisco |

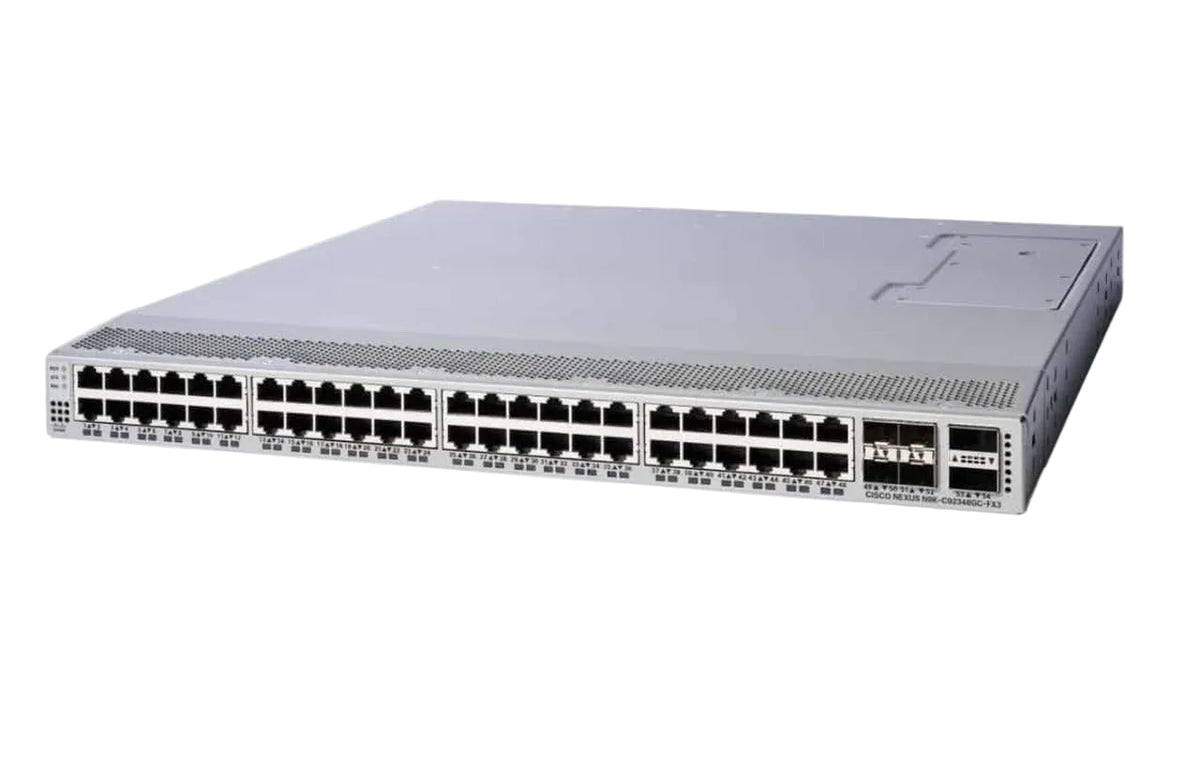

| Model | N9K-C92348GC-FX3 |
| Series | Cisco Nexus 9000 Series Switches |
| Form Factor | 1 RU fixed-port Layer 2 and Layer 3 switch |
| Downlink Ports | 48 x 10M/100M/1G BASE-T (RJ-45) |
| Uplink Ports, SFP28 | 4 x 10/25G SFP28 |
| Uplink Ports, QSFP28 | 2 x 40/100G QSFP28 |
| Total Bandwidth | 696 Gbps |
| Management Ports | 1 x RJ-45 and 1 x SFP |
| Console Port | 1 |
| USB Port | 1 |
| Fan Modules | 3 (NXA-SFAN-30CFM-PI port-side intake, NXA-SFAN-30CFM-PE port-side exhaust) |
| Fan Speed | 40% typical and minimum, 100% maximum |
| Fan Fault Behavior | Operates normally if one rotor in any one fan module fails; powers down if fewer than 2 fans are operational |
| Airflow | Port-side intake or port-side exhaust; airflow directions must not be mixed |
| Power Supplies | 2 (1 for operation and 1 for redundancy) |
| Power Supply Options | NXA-PAC-350W-PI2 and NXA-PAC-350W-PE2 (350 W AC); NXA-PHV-350W-PI and NXA-PHV-350W-PE (350 W PHV); NXA-PDC-440W-PI and NXA-PDC-440W-PE (440 W DC); NXA-PDC-715W-PI (715 W DC) |
| Mixed AC and DC Supplies | Supported in the same chassis for up to 15 minutes |
| 350 W AC Input | 100 to 120 VAC at 4 A, 200 to 240 VAC at 2 A, 50 to 60 Hz |
| 350 W PHV Input | 240 to 380 VDC or 100 to 277 VAC, 50 to 60 Hz |
| 440 W DC Input | -48 to -60 VDC |
| Typical Power | 226 W |
| Maximum Power | 242 W |
| Heat Dissipation | 825.738 BTU per hour |
| Hot-Swappable Modules | Fan modules and power supply modules are field replaceable; one of each can be replaced during operation |
| Dimensions (H x W) | 1.72 x 17.3 in (4.4 x 43.9 cm), 1 RU |
| Depth, Chassis Without Power Supplies | 18.0 in (45.72 cm) |
| Depth With 350 W AC or 350 W PHV Power Supplies | 19.7 in (49.9 cm) |
| Depth With 440 W DC or 715 W DC Power Supplies | 21.0 in (53.34 cm) |
| Weight, Chassis | 14.5 lb (6.57 kg) |
| Weight, NXA-SFAN-30CFM-PI Fan Module | 0.26 lb (0.12 kg) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Nonoperating Temperature | -40 to 158 F (-40 to 70 C) |
| Operating Relative Humidity | 5% to 90% |
| Nonoperating Relative Humidity | 5% to 95% |
| Operating Altitude | 0 to 13,123 ft (0 to 4,000 m) |
| Regulatory Compliance | Safety to UL, CSA, IEC and EN 62368-1; Class A emissions (47 CFR Part 15, CISPR 22, EN 55022, ICES-003, VCCI) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
