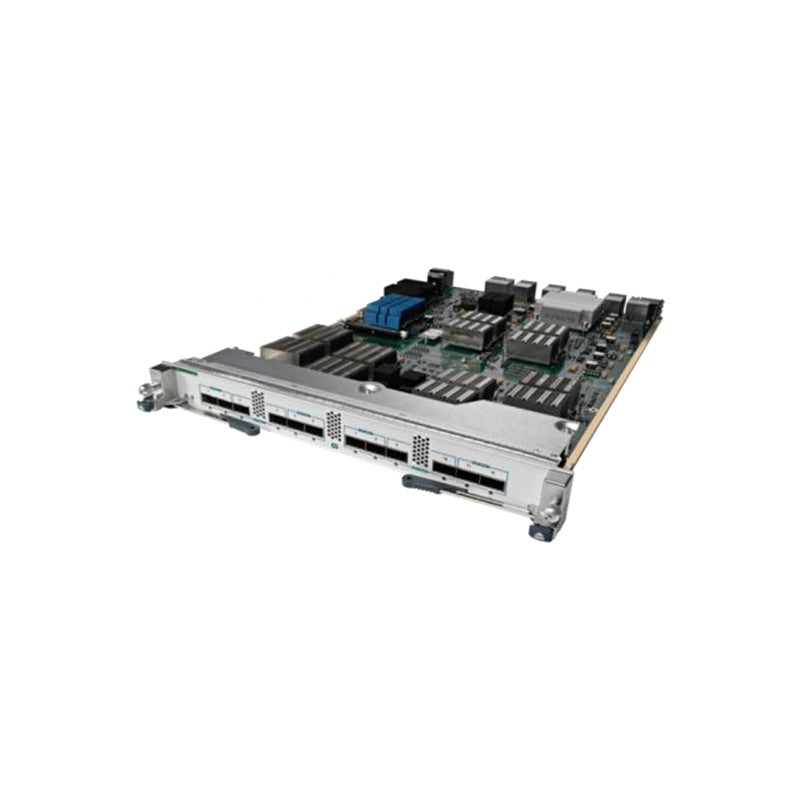

| Device Type | Expansion module |
|---|---|
| Form Factor | Plug-in module |
| Ports | 40 Gigabit QSFP x 12 |
| Connectivity Technology | Wired |
| Data Link Protocol | 40 Gigabit Ethernet |
| Data Transfer Rate | 40 Gbps |
| Performance | Throughput: 480 Gbps ¦ Forwarding performance: 720 Mpps |
| Capacity | Virtual interfaces (VLANs): 4096 ¦ Host table entries (IPv6): 32000 ¦ Host table entries (IPv4): 64000 ¦ ACL entries: 16000 ¦ Jumbo frame size: 9216 |
| MAC Address Table Size | 64K entries |
| Remote Management Protocol | CLI |
| Status Indicators | Link OK Unit ID status |
| Features | MPLS support IPv6 support Access Control List (ACL) support Jumbo Frames support IPv4 support |
| Interfaces | 12 x 40Gb Ethernet / FCoE |
| Compliant Standards | ETSI CISPR 22 Class A CISPR 24 EN 61000-3-2 EN 61000-3-3 EN55024 EN55022 Class A EN50082-1 EN 61000-6-1 EMC ICES-003 Class A FCC CFR47 Part 15 UL 60950-1 IEC 60950-1 EN 60950-1 NEBS CSA C22.2 No. 60950-1 AS/NZS 60950 GR-1089-CORE VCCI Class A CNS 13438(95) Class A GR-63-CORE KN22 Class A ETSI 300 019 AS/NZS CISPR22:2006 Class A EN 300386 |
| Width | 15.3 in |
| Depth | 21.9 in |
| Height | 1.7 in |
| Weight | 14.99 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
