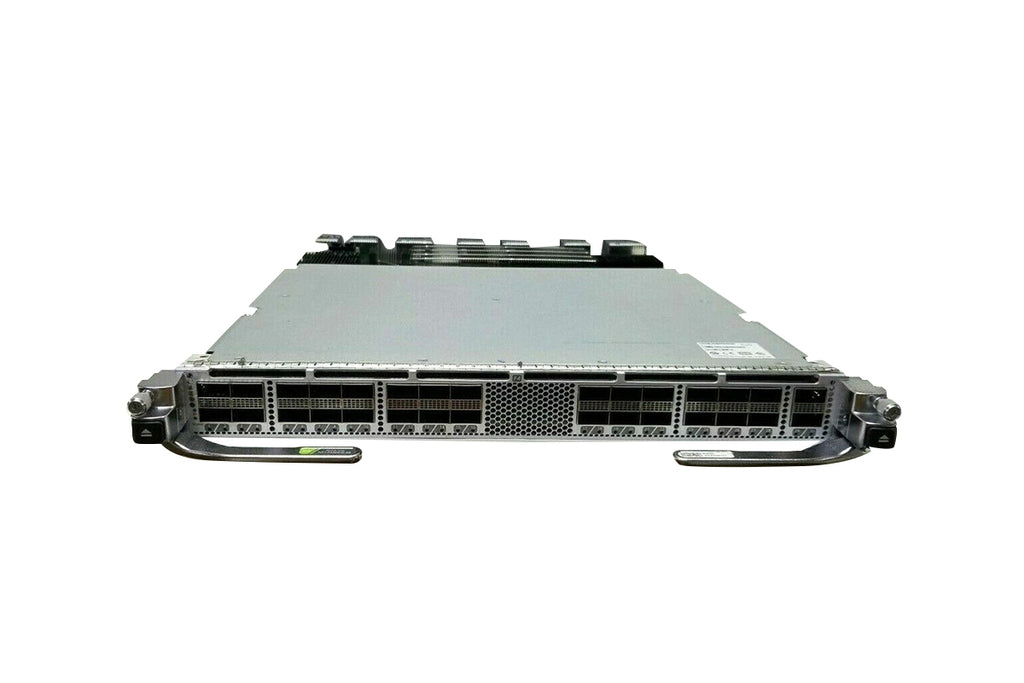

| Model | Cisco N77-F430CQ-36 |
| Series | Nexus 7700 F4-Series Ethernet Module |
| Module type | 100 Gigabit Ethernet line card |
| Chassis compatibility | Nexus 7700 2-slot 6-slot 10-slot chassis |
| Slot usage | Occupies one I O module slot |
| Port configuration | 30 x QSFP+ ports |
| Port speed options | 100GbE 40GbE 4x10GbE breakout |
| Port density | 30 ports in 2-slot 120 ports in 6-slot 240 ports in 10-slot chassis |
| Throughput | Up to 3 Tbps |
| Forwarding performance | 1.44 bpps Layer 2 and Layer 3 IPv4 and IPv6 |
| Queues per port | 4 ingress and 8 egress |
| VOQ buffer | 204 MB |
| Jumbo frames | Up to 9216 bytes |
| MAC address entries | 384000 |
| VLANs | 4096 per VDC |
| IPv4 entries | 128000 |
| IPv6 entries | 64000 |
| ACL entries | 32000 |
| Policers | 8000 |
| Typical power | 730 W |
| Maximum power | 1000 W |
| MTBF | 168150 hours |
| Dimensions | 1.75 x 15.9 x 21.8 in |
| Weight | 23 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
