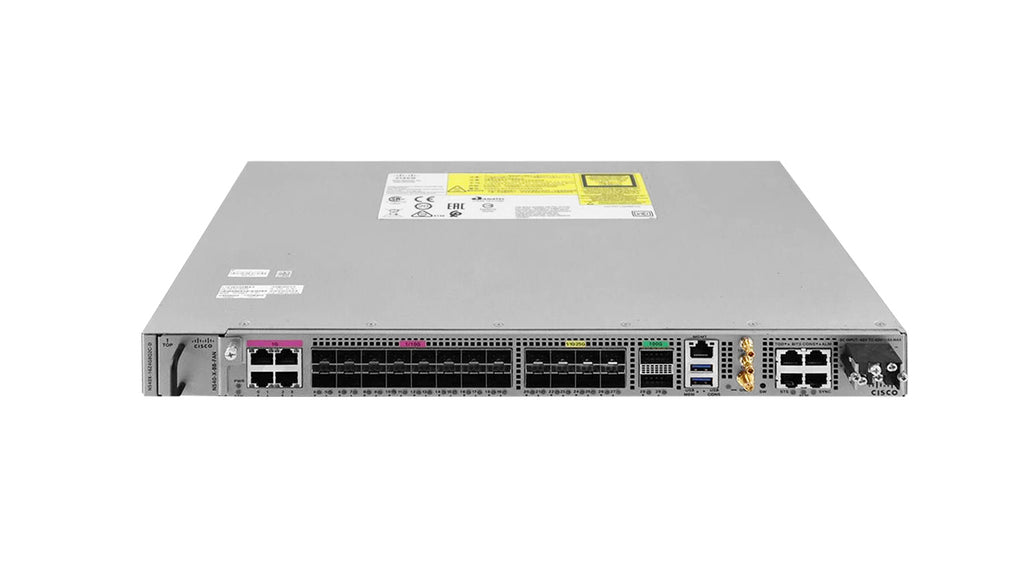

Cisco N540X-16Z4G8Q2C-D NCS 540X System w/ 16x10G+4x1G Cu+8x25G+2x100G, DC - New

Save 45%
Condition:  new     MPN:  N540X-16Z4G8Q2C-D
Price:
Sale price$3,255.00 Regular price$5,950.00
Stock:
In stock

Tech Overview

Cisco Network Convergence System 540 - Router - 40 Gigabit LAN - 100 Gigabit Ethernet - 25 Gigabit LAN - front to back airflow - rack-mountable
View full product specifications

Overview

Device TypeRouter
Enclosure TypeFront to back airflow rack-mountable - 1U
Connectivity TechnologyWired
Data Link ProtocolGigabit Ethernet 10 Gigabit Ethernet 40 Gigabit Ethernet 100 Gigabit Ethernet 25 Gigabit Ethernet
PerformanceThroughput: 300 Mpps
CapacityIPv4 forwarding information base (FIB): 128000
Jumbo Frame Support9216 bytes
Routing ProtocolIS-IS BGP HSRP VRRP OSPFv2 IGMPv3 OSPFv3 ECMP MLDv2 IS-ISv6 MPLS Bidirectional Forwarding Detection (BFD)
Remote Management ProtocolSNMP
Authentication MethodTACACS
FeaturesLayer 2 switching Virtual Route Redundancy Protocol (VRRP) support Access Control List (ACL) support SSH support Jumbo Frames support Link Aggregation Control Protocol (LACP) Management Information Base (MIB) 3GB packet buffer Label Distribution Protocol (LDP) Ethernet Virtual Private Network (EVPN) Authentication Authorization and Accounting (AAA) Hierarchical Quality of Service (HQoS) Layer 2 VPN (L2VPN) support Zero-touch provisioning (ZTP) Intermediate System to Intermediate System (IS-IS) Integrated Routing and Bridging (IRB) Protocol Independent Multicast (PIM) Link Aggregation Group (LAG) Bridge Virtual Interface (BVI)
Compliant StandardsIEEE 802.1Q IEEE 802.1ad CISPR 22 Class A CISPR 24 EN 61000-3-2 EN 61000-3-3 EN55024 EN50082-1 EN 61000-6-1 EN 61000-4-2 EN 61000-4-6 ICES-003 Class A EN 61000-4-11 EN 61000-4-8 UL 60950-1 Second Edition RoHS 6/6 EN 60950-1 Second Edition IEC 60950-1 Second Edition EN 50121-4 GR-1089-CORE VCCI Class A KN24 GR-63-CORE KN22 Class A GR-1244-CORE EN 55022 Class A FCC CFR47 Part 15 A EN 300 386 KN 61000-4-2 KN 61000-4-11 KN 61000-4-6 ANSI T1.101 SR-3580 NEBS Level 3 CAN/CSA-C22.2 No. 60950-1-07 Second Edition EN 300386 Class A ETSI EN 300 019 AS/NZS 60950-1:2003 GR-3108 ETSI EN 300 753 ITU-T G.8264 ITU-T G.8265.1 ITU-T G.8275.2
Processor1 x 1.5 GHz
RAM16 GB
Hard Drive128 GB
Built-in DevicesGNSS receiver
Interfaces24 x 10Gb Ethernet - SFP/SFP ¦ 8 x 25Gb Ethernet - SFP /SFP28 ¦ 2 x 100Gb Ethernet - QSFP28/QSFP ¦ Management: 2 x RJ-45
Power DeviceInternal power supply - hot-plug
Power RedundancyYes
Installed Qty0 (installed) / 2 (max)
Power Consumption Operational270 Watt
Included AccessoriesAccessory kit
OS RequiredCisco IOS XR 6.3.2
Width17.3 in
Depth10 in
Height1.7 in
Weight0.22 oz

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
