| Brand | Cisco |

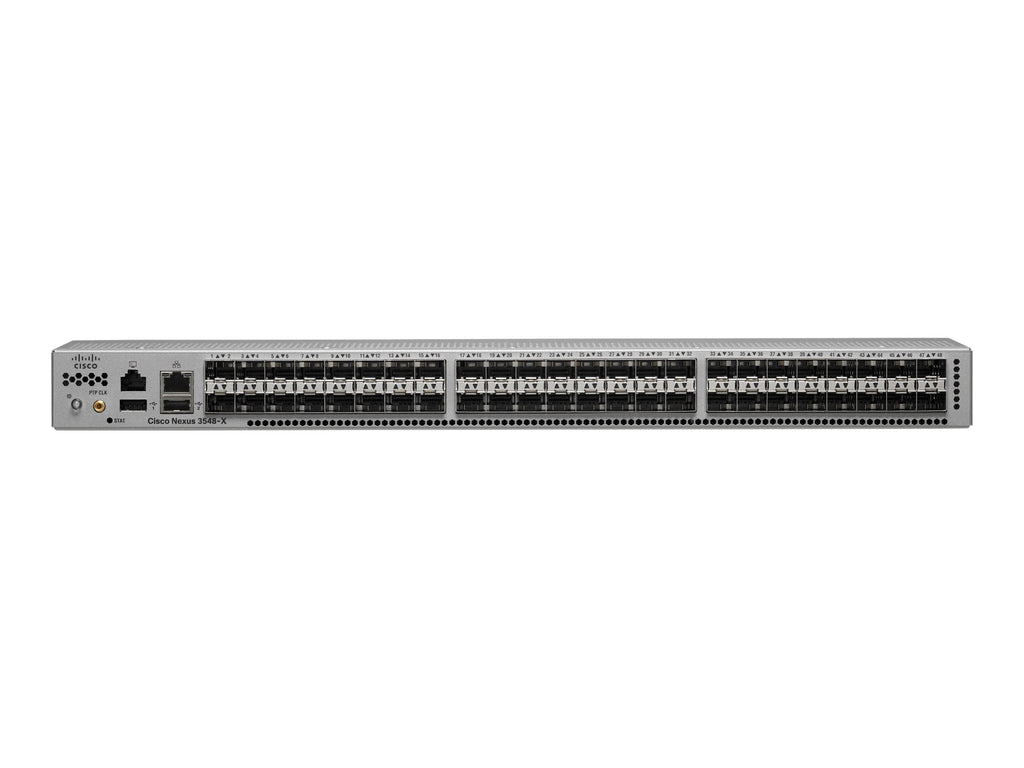

| Model | N3K-C3548P-10GX |
| Series | Cisco Nexus 3000 Series Switches |
| Platform | Cisco Nexus 3500 platform |
| Cisco Ordering Description | Nexus 3548-X Switch, 48 SFP+ |
| Product Type | Fixed-configuration 1/10 Gigabit Ethernet SFP+ switch |
| Form Factor | 1RU fixed |
| Ports | 48 x fixed SFP+ (1 or 10 Gbps) |
| Management Port | 1 x 10/100/1000 Mbps |
| Console Port | 1 x RS-232 serial |
| USB Ports | 2 |
| Locator LED | Yes, with locator LED button |
| Switching Capacity | 960 Gbps |
| Forwarding Rate | 720 mpps |
| Throughput | Line-rate Layer 2 and Layer 3 on all ports |
| Maximum MTU | 9216 bytes (configurable) |
| Switching Latency (Nexus 3500 Platform) | Less than 200 ns, Layer 2 and Layer 3 |
| Packet Buffer | 18 MB total; 6 MB shared among 16 ports |
| MAC Address Table | 64,000 (normal mode); 8000 (warp mode) |
| IPv4 Unicast Routes | 24,000 (normal mode); 4000 (warp mode) |
| IPv4 Hosts | 64,000 (normal mode); 8000 (warp mode) |
| IPv4 Multicast Routes | 8000 |
| VLANs | 4096 |
| ACL Entries | 4096 |
| Spanning Tree Instances | RSTP 512; MST 64 |
| EtherChannels | 24; up to 24 ports per EtherChannel |
| System Memory | 4 GB |
| Boot Flash | 4 GB |
| Power Supply Slots | 2, redundant |
| Power Supply Types | AC or DC, in forward and reversed airflow versions |
| AC Power Supply Input | 100 to 240 VAC, 50 to 60 Hz; 89 to 91% efficiency at 220 V |
| Typical Operating Power | 112 W |
| Maximum Power | 213 W |
| Heat Dissipation | Typical 383 BTU/hr; maximum 727 BTU/hr |
| Cooling | 4 individual hot-swappable fans, 3+1 redundant |
| Airflow | Forward (port-side exhaust) and reversed (port-side intake) schemes supported; set by the fan and power supply type |
| Compatible Fan Modules | NXA-FAN-30CFM-F (forward airflow); NXA-FAN-30CFM-B (reversed airflow) |
| Compatible Power Supplies | N2200-PAC-400W, N2200-PAC-400W-B (AC); N2200-PDC-400W, N3K-PDC-350W-B (DC) |
| Supported 10G Optics | SFP-10G-SR, SFP-10G-LR, SFP-10G-ER, DWDM-SFP10G (multiple varieties) |
| Supported 10G Copper Cables | Passive SFP-H10GB-CU1M, CU3M, CU5M; active SFP-H10GB-ACU7M, ACU10M |
| Supported 1G Optics | GLC-TE, GLC-SX-MM, GLC-SX-MMD, GLC-LH-SM, GLC-LH-SMD |
| Related Model (Nexus 3548-XL) | N3K-C3548P-XL: 2.5 GHz CPU, 16 GB system memory, 16 GB boot flash |
| Dimensions (H x W x D) | 1.72 x 17.3 x 18.38 in (4.36 x 43.9 x 46.7 cm) |
| Weight | 17.4 lb (7.9 kg) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Storage Temperature | -40 to 158 F (-40 to 70 C) |
| Operating Humidity | 10% to 85%, noncondensing |
| Nonoperating Humidity | 5% to 95%, noncondensing |
| Altitude | 0 to 10,000 ft (0 to 3000 m) |
| Safety | UL 60950-1 Second Edition; CAN/CSA-C22.2 No. 60950-1; EN 60950-1; IEC 60950-1; AS/NZS 60950-1; GB4943 |
| EMC Emissions (Class A) | 47CFR Part 15; AS/NZS CISPR22; CISPR22; EN55022; ICES003; VCCI; KN22; CNS13438 |
| EMC Emissions (Additional Standards) | EN61000-3-2; EN61000-3-3 |
| EMC Immunity | EN55024; CISPR24; EN300386; KN24 |
| CE Marking | Directives 2004/108/EC and 2006/95/EC |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
