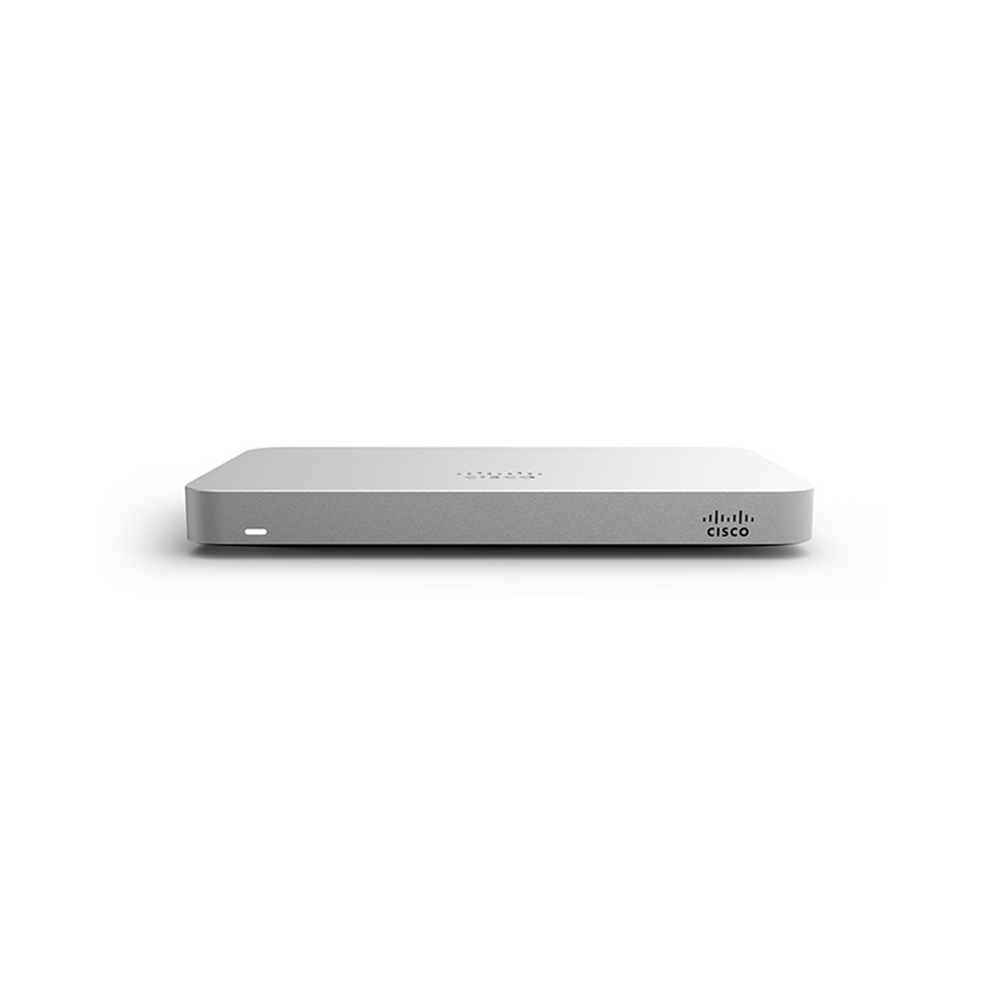

| MX64-HW Specification | |
| Recommended Use Cases | Small branch |
| Recommended Clients | 50 |
| Stateful Firewall Throughput | 250 Mbps |
| Advanced Security Throughput | 200 Mbps |
| Maximum VPN Throughput | 100 Mbps |
| Maximum Concurrent VPN Tunnels | 50 |
| WAN Interfaces | Dedicated: 1 x GbE RJ45 1 x USB (cellular failover1 ) Dual-purpose: 1 x GbE RJ45 |
| LAN Interfaces | Fixed: 4 x GbE RJ45 |
| Web Caching | - |
| Mounting | Desktop or Wall mount |
| Dimensions (w x d x h) | 9.5” x 5.2” x 1” (239mm x 132mm x 25mm) |
| Weight | 1.61 lb (0.7 kg) |
| Power Supply | 30W DC (included) |
| Power Load (idle/max) | 4W / 10W |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 5% to 95% |
| Management | - Managed via the web using the Cisco Meraki dashboard - Single pane-of-glass into managing wired and wireless networks - Zero-touch remote deployment (no staging needed) - Automatic firmware upgrades and security patches - Templates based multi-network management - Org-level two-factor authentication and single sign-on - Role based administration with change logging and alerts |
| Network and Firewall Services | - Stateful firewall, 1:1 NAT, DMZ - Identity-based policies - Auto VPN: Automated site-to-site (IPsec) VPN, for hub-and-spoke or mesh topologies - Client (IPsec L2TP) VPN - Multiple WAN IP, PPPoE, NAT - VLAN support and DHCP services - Static routing - User and device quarantine |
| Regulatory | FCC (US) CB (IEC) CISPR (Australia/New Zealand) PTCRB (US) RCM (Australia/New Zealand, Asia Pacific) GCF (EU) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
