| Brand | Cisco Meraki |
| Model | MV73M-HW |
| Series | MV73 Series |

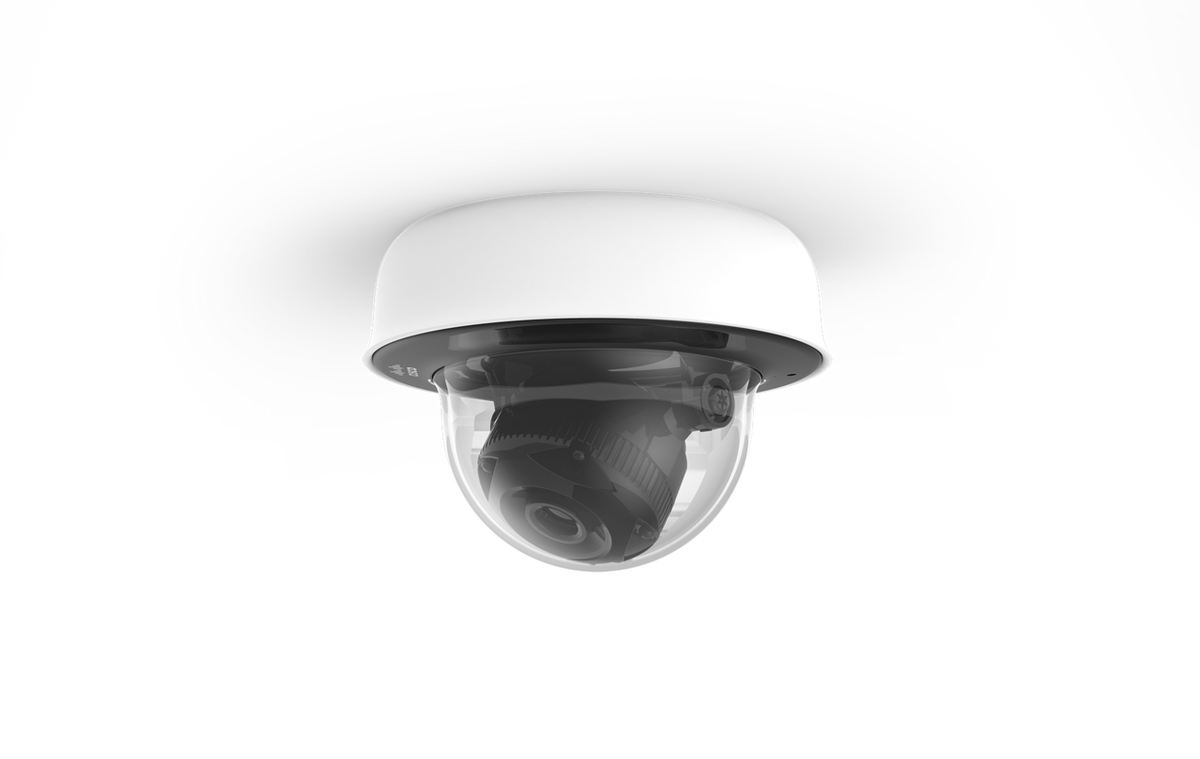

| Type | Outdoor Varifocal Dome Security Camera |
| Onboard Storage | 512 GB high-endurance SSD |
| Image Sensor | 1/2.8 in 8.41 MP (3854 x 2176) progressive CMOS |
| Lens | Varifocal, 3.0 to 9.0 mm, f/1.6 to f/2.9 |
| Field of View | Horizontal 36 to 112 degrees, vertical 20 to 57 degrees, diagonal 42 to 138 degrees |
| Shutter | 1/30 s to 1/32,000 s |
| Day/Night | Automatic switching |
| Infrared Illumination | Built-in, effective up to 30 m (98 ft) |
| Heating Elements | Yes |
| Video Compression | H.264 Smart Codec |
| Frame Rate, 4K (3840 x 2160) | Up to 15 fps |
| Frame Rate, 4MP (2560 x 1440) | Up to 24 fps |
| Frame Rate, 1080p (1920 x 1080) | Up to 24 fps |
| HDR | Supported |
| Audio | 4 built-in microphones, external microphone switch |
| DORI Wide Field of View (Detect / Observe / Recognize / Identify) | 63.8 m / 25.3 m / 12.8 m / 6.4 m |
| DORI Telescopic Field of View (Detect / Observe / Recognize / Identify) | 244.5 m / 97 m / 48.9 m / 24.4 m |
| Wired Network | 1 x 10/100/1000BASE-T Ethernet (RJ45) |
| Wireless 2.4 GHz | 802.11b/g/n |
| Wireless 5 GHz | 802.11a/n/ac, 20/40/80 MHz channels, 1x1 with 1 spatial stream, up to 256-QAM |
| PoE | 802.3at, 25.5 W maximum |
| Alternate Power | 12 VDC or 24 VAC via screw terminals |
| Disk Encryption | Full disk encryption, AES-256 |
| Ingress and Impact Protection | IP67, IK10+ |
| Diameter | 166.39 mm (6.55 in) |
| Height | 103 mm (4.06 in) |
| Weight | 1480 g (3.26 lb) |
| Status Indicators and Controls | Multicolor status LED, reset button |
| Compatible Mounting Accessories (sold separately) | MA-MNT-MV-18, MA-MNT-MV-28, MA-MNT-MV-38, MA-MNT-MV-48, MA-MNT-MV-58, MA-MNT-MV-68, MA-MNT-MV-78, MA-MNT-MV-88 |
| Compatible PoE Injector (sold separately) | MA-INJ-4 (802.3at) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
