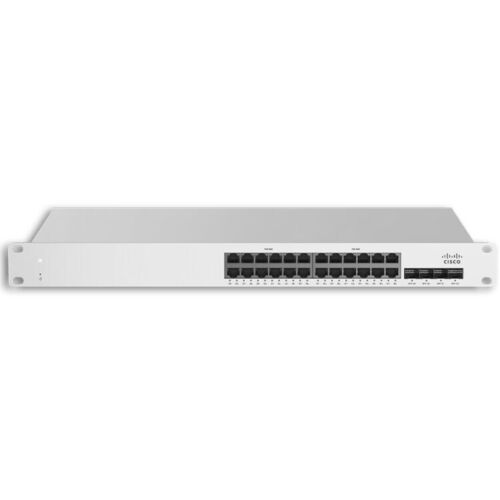

| MS225-24P-HW Specification | |
| Interfaces | • 24 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) and PoE • 4 x SFP 10GbE uplink • 2 x stacking ports • RJ45 Management port |
| Switching capacity | 128 Gbps |
| Stacking Bandwidth | 80G (dual interface) |
| Forwarding rate | 95.24mpps |
| Available PoE Power | 370 W |
| Idle / Full Load Power | 21 / 448 W |
| Power Supply Configuration | Fixed internal |
| Optional Redundant Power Supply | External RPS |
| Dimensions | 1.72 x 19.08 x 9.84” (4.38 x 48.46 x 25cm) |
| Weight | 8.18 lb (3.71 kg) |
| Management | • Managed via the Web with the Meraki cloud management platform • Integrated with Meraki Wireless and complete portfolio of IT products and solutions • Zero-touch remote provisioning (no staging needed) • Detailed historical per-port and per-client usage statistics • DHCP, client, and hostname fingerprinting • SNMPd and SYSLOG support for integration with other network management solutions • Automatic firmware upgrades with scheduling control |
| Layer 3 | • Static routing • DHCP Relay |
| Remote Diagnostics | • Email, SMS and Mobile push notification alerts • Cable testing and link failure detection with alerting • Live remote packet capture • Dynamic and interactive network discovery and topology • Combined event and configuration change logs with instant search |
| Power | • Power input: 100 - 240 VAC, 47-63 Hz • Power consumption: 15 - 882W • RPS interface: Requires RPS-2300 chassis |
| Stacking | • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration • Stacking-compatible with the MS210 |
| Mounting | • 1U Rack-mountable with included rack mount hardware • 2-post front mounting options available • Desktop-mountable with included feet |
| Ethernet Switching Capabilities | • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) • 802.1Q VLAN and trunking support for up to 4,094 VLANs • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) • Broadcast storm control • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches • Port mirroring • IGMP snooping for multicast filtering • MAC forwarding entries: 16K |
| Environment | • Operating temperature: -5°C to 50°C • Humidity: 5 to 95% non-condensing • MS225-24 feature fanless operation |
| Regulatory | • CSA-US (US, Canada) • FCC (USA) • IC (Canada) • CE (Europe) • RCM (Australia/New Zealand) • RoHS |
| Security | • Integrated two-factor authentication for Dashboard management • Role-based access control (RBAC) with granular device and configuration control • Corporate wide password policy enforcement • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing • Multi-Domain/Multi-Host/Multi Authentication • Port security: Sticky MAC, MAC whitelisting • DHCP snooping, detection and blocking, Dynamic ARP Inspection • STP Enhancements: BPDU guard, Root guard, Loop guard • IPv4 and IPv6 ACLs |
| MTBF Ratings | 391,648 |
