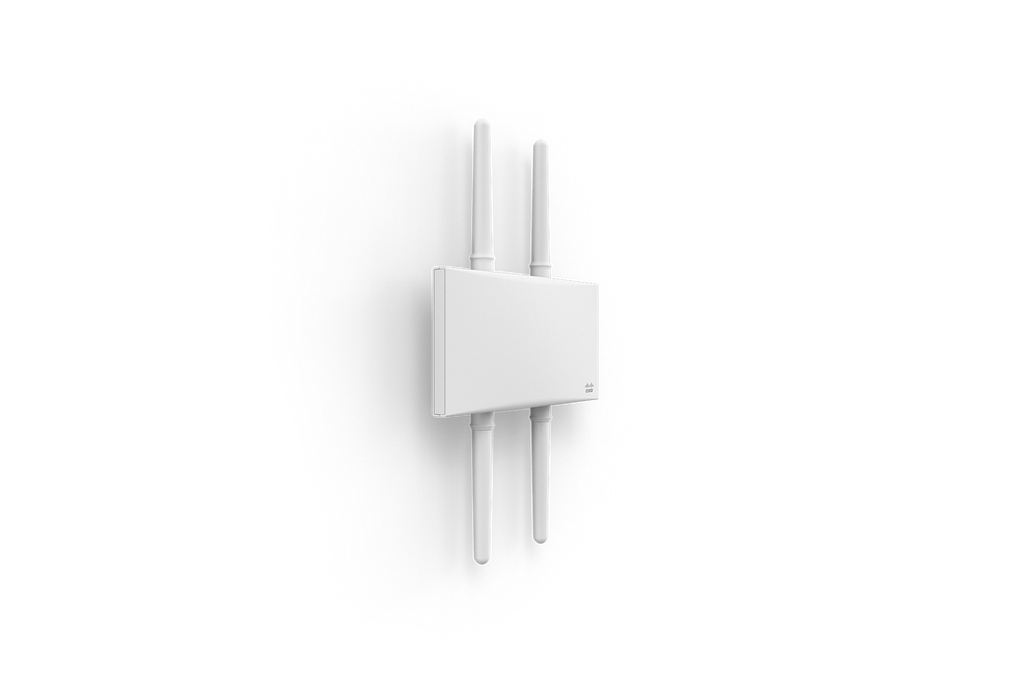

| MR74 Specifications | |
|---|---|
| Radios | 2.4 GHz 802.11b/g/n client access radio 5 GHz 802.11a/n/ac client access radio 2.4 GHz & 5 GHz WIDS/WIPS, spectrum analysis, and location analytics radio 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support Concurrent operations of all four radios Supported frequency bands (country-specific restrictions apply): 2.412-2.484 GHz 5.150-5.250 GHz (UNII-1) 5.250-5.350 GHZ (UNII-2) 5.470-5.600, 5.660-5.725 GHz (UNII-2e) 5.725 -5.825 GHz (UNII-3) |
| 802.11ac and 802.11n Capabilities | 2 x 2 multiple input, multiple output (MIMO) with two spatial streams SU-MIMO and MU-MIMO support Maximal ratio combining (MRC) & Beamforming 20 and 40 MHz channels (2.4Ghz), 20, 40, and 80 MHz channels (5Ghz) Up to 256 QAM on both 2.4 GHz and 5 GHz bands Packet aggregation |
| Power | Power over Ethernet: 37 - 57 V (802.3af compatible) Power consumption: 11 W max (802.3af) Power over Ethernet injector sold separately |
| Mounting | Mounts to walls and vertical poles. Mounting hardware included |
| Physical Security | Security screw included |
| Environment | Operating temperature: -40 °F to 131 °F (-40 °C to 55 °C) IP67 environmental rating |
| Physical Dimensions | 10” x 6.2” x 2.6” (256 mm x 158 mm x 65 mm) Weight: 2.4 lbs. (1.09 kg) |
| Interfaces | 1x 100/1000Base-T Ethernet (RJ45) Four external N-type female antenna connectors |
| Security | IIntegrated layer 7 firewall with mobile device policy management Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal Flexible guest access with device isolation VLAN tagging (802.1Q) and tunneling with IPSec VPN PCI compliance reporting WEP, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM TKIP and AES encryption Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration) |
| Quality of Service | Advanced Power Save (U-APSD) WMM Access Categories with DSCP and 802.1p support Layer 7 application traffic identification and shaping |
| Mobility | PMK, OKC, and 802.11r for fast Layer 2 roaming Distributed or centralized layer 3 roaming |
| LED Indicators | 1 power/booting/firmware upgrade status |
| Regulatory | RoHS For additional country-specific regulatory information, please contact Meraki sales |
| Warranty | 1 year hardware warranty with advanced replacement included |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
