Specifications
| Category | Specifications |
| Radios | 2.4 GHz 802.11b/g/n/ax client access radio 5 GHz 802.11a/n/ac/ax client access radio 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio 2.4 GHz Bluetooth Low Energy (BLE) radio with beacon and scanning support Concurrent operation of all four radios Supported frequency bands (country-specific restrictions apply) Supported frequency bands (country-specific restrictions apply): 2.412-2.484 GHz 5.150-5.250 GHz (UNII-1) 5.250-5.350 GHZ (UNII-2) 5.470-5.600, 5.660-5.725 GHz (UNII-2e) 5.725 -5.825 GHz (UNII-3) |
| Antenna | Internal antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz) |
| 802.11ax, 802.11ac Wave 2 and 802.11n Capabilities | DL-OFDMA**, UL-OFDMA**, TWT support**, BSS coloring** 4 x 4 multiple input, multiple output (MIMO) with four spatial streams SU-MIMO, UL MU-MIMO**, and DL MU-MIMO support Maximal ratio combining (MRC) & beamforming 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax) Up to 1024-QAM on both 2.4 GHz and 5 GHz bands Packet aggregation ** Feature is automatically enabled via firmware update to MR 27 |
| Power | Power over Ethernet: 42.5 - 57 V (802.3at compliant) Alternative: 12 V DC input Power consumption: 30W max (802.3at required) Power over Ethernet injector and DC adapter sold separately Note: Actual power consumption may vary depending on the AP usage. |
| Interfaces | 1x 100/1,000/2.5G BASE-T Ethernet (RJ45) 1x DC power connector (5.5 mm x 2.5 mm, center positive) |
| Mounting | All standard mounting hardware included Desktop, ceiling, and wall mount capable Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes Bubble level on mounting cradle for accurate horizontal wall mounting |
| Physical Security | Two security screw options (included) (13.5 mm long, 2.5 mm diameter, 5 mm head) Kensington lock hard point Concealed mount plate with anti-tamper cable bay |
| Environment | Operating altitude: Up to 40,000 feet (12,192 meters) Operating temperature: 32 °F to 104 °F (0 °C to 40 °C) Humidity: 5% to 95% non-condensing |
| Reliability | Mean time between failure (MTBF): 1,406,652 hrs at 25°C operating temperature |
| Physical Dimensions | 12.05” x 5.06” x 1.74” (30.6 cm x 12.84 cm x 4.43 cm), not including desk mount feet or mount plate Weight: 28.22 oz (800 g) |
| Security | Integrated layer 7 firewall with mobile device policy management Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal Flexible guest access with device isolation VLAN tagging (802.1q) and tunneling with IPsec VPN PCI compliance reporting WEP*, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal**, WPA3 - Enterprise**, WPA3 - Enhanced Open (OWE)*** EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM TKIP and AES encryption Enterprise mobility management (EMM) and Mobile device management (MDM) integration Cisco ISE integration for guest access and BYOD posturing * Feature can be enabled by contacting support ** Feature supported on firmware MR 27 and can be made available on MR 26; see the WPA3 article for more information *** Feature will be made available via a future software update |
| Quality of Service | Advanced power save (U-APSD) WMM access categories with DSCP and 802.1p support Layer 7 application traffic identification and shaping |
| Mobility | PMK, OKC, and 802.11r for fast layer 2 roaming Distributed or centralized layer 3 roaming |
| Analytics | Embedded location analytics reporting and device tracking Global layer 7 traffic analytics reporting per network, per device, and per application |
| LED Indicators | 1 power/booting/firmware upgrade status |
| Regulatory | RoHS For additional country-specific regulatory information, please contact Meraki sales |
| Warranty | Lifetime hardware warranty with advanced replacement included |

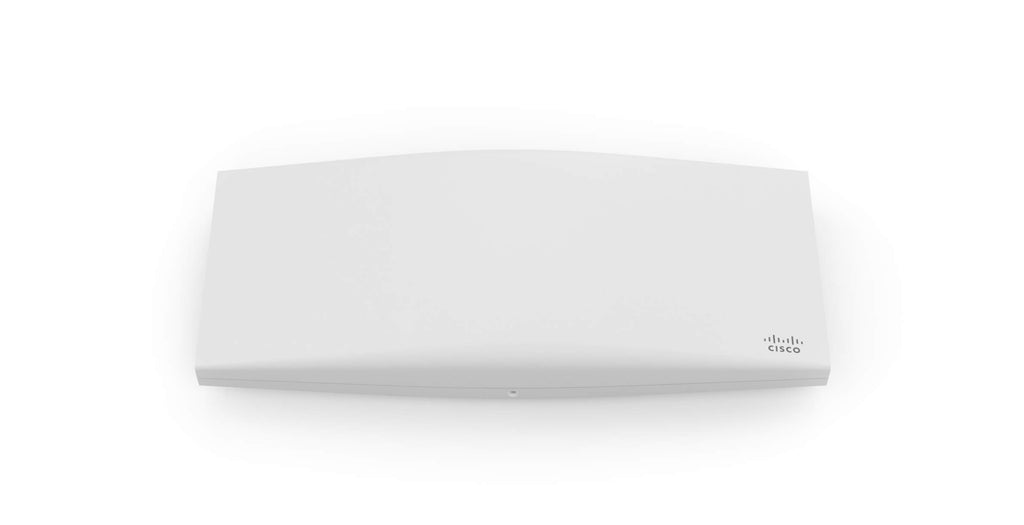

| Ordering Information | MR46-HW: Meraki MR46 cloud managed 802.11ax AP MA-PWR-30W-XX: Meraki AC adapter for MR series (XX = US/EU/UK/AU) MA-INJ-4-XX: Meraki gigabit 802.3at power over Ethernet injector (XX = US/EU/UK/AU) MA-INJ-5-XX: Meraki multigigabit 802.3at power over Ethernet injector (XX = US/EU/UK/AU) Note: Meraki access point license required |
