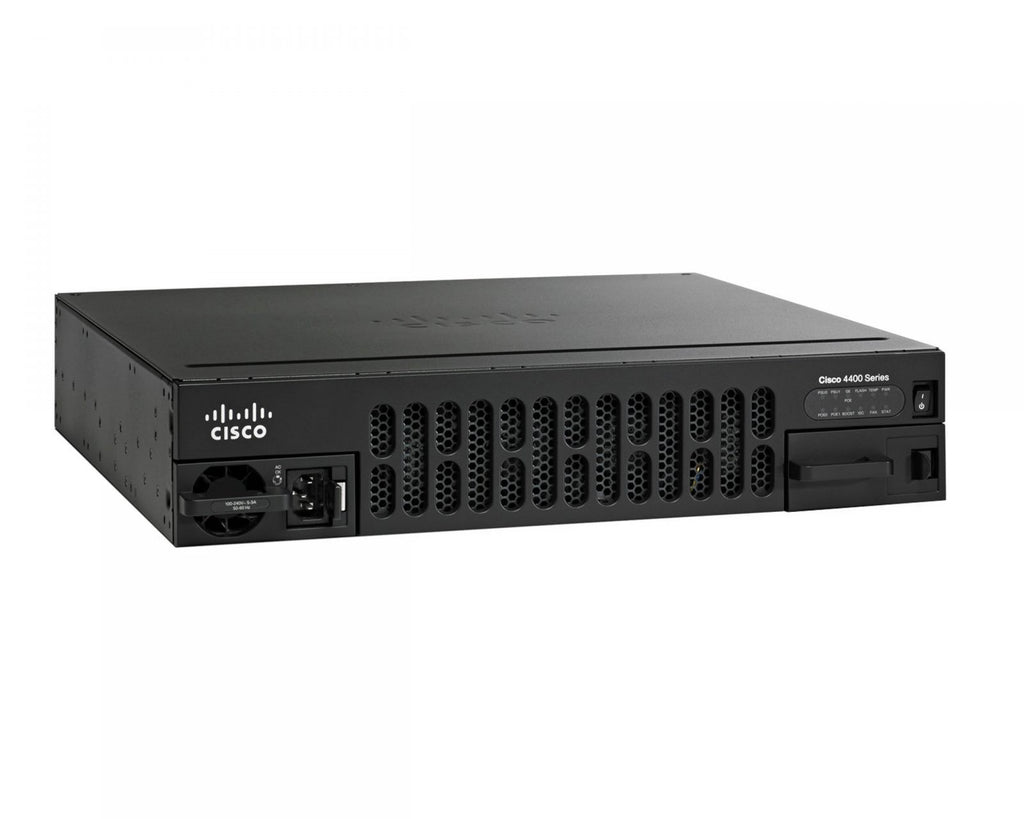

Cisco ISR4451-X-AXV/K9 Integrated Services Router ISR 4451 AXV Bundle PVDM4-64 w/APP SEC UC License CUBE-25

Condition:  refurbished     MPN:  ISR4451-X-AXV/K9
Price:
Sale price$1,895.00
Stock:
In stock

Tech Overview

Cisco 4451-X Integrated Services Router - Application Experience with Voice Bundle - router - GigE - WAN ports: 4 - rack-mountable
View full product specifications

Overview

Product Number ISR4451-X-AXV/K9
Product Description Cisco ISR 4451 AXV Bundle. PVDM4-64 w/APP. SEC. UC lic. CUBE-25.
Aggregate Throughput 1 Gbps to 2Gbps
Total onboard WAN or LAN 10/100/1000 ports 4
RJ-45-based ports 4
SFP-based ports 4
Enhanced service-module slots 2
Doublewide service-module slots 1 (assumes no singlewide SM-X modules installed)
NIM slots 3
OIR (all I/O modules) Yes
Onboard ISC slot 1
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) NA
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) NA
Default memory DDR3 ECC DRAM (data plane) 2 GB
Maximum memory DDR3 ECC DRAM (data plane) 2 GB
Default memory DDR3 ECC DRAM (control/services plane) 4 GB
Maximum memory DDR3 ECC DRAM (control/services plane) 16 GB
Default flash memory 8 GB
Maximum flash memory 32 GB
External USB 2.0 slots (type A) 2
USB console port -type B mini (up to 115.2 kbps) 1
Serial console port - RJ45 (up to 115.2 kbps) 1
Serial auxiliary port - RJ45 (up to 115.2 kbps) 1
Power-supply options Internal: AC, DC and PoE
Redundant power supply Internal: AC, DC and PoE
AC input voltage 100 to 240 VAC autoranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 7.1 to 3.0A
AC input surge current <50 A
Typical power (no modules) (watts) 158
Maximum power with AC power supply (watts) 450 (no PoE)
Maximum power with PoE power supply (platform only) (watts) 1000 with PoE redundant 1450 with PoE boost no redundancy
Maximum endpoint PoE power available from PoE power supply (watts) 500 W with optional redundancy
Maximum endpoint PoE power capacity with PoE boost (watts) 950 W no redundancy

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
