| Brand | Cisco |
| Model | IR1101-K9 |

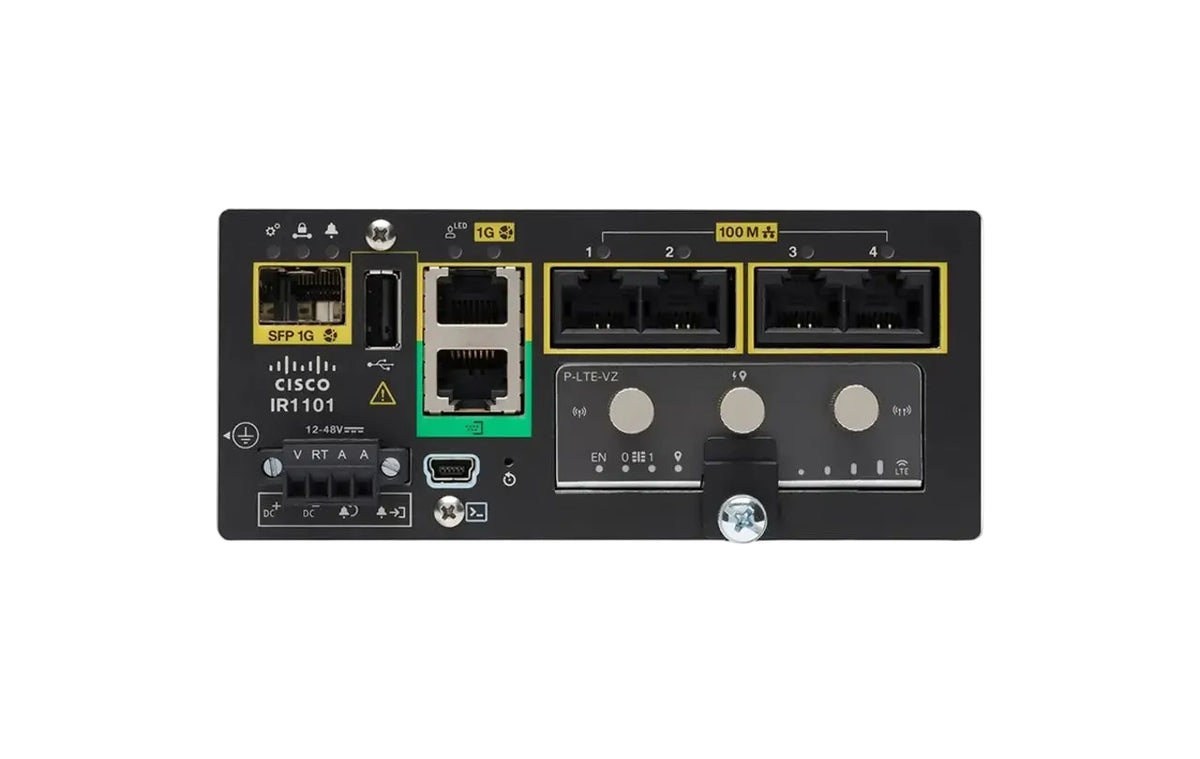

| Product Name | Catalyst IR1101 Rugged Series Router |
| Series | Catalyst IR1100 Rugged Series |
| WAN Port | 1 x combo 10/100/1000 Mbps Ethernet (RJ-45 and SFP) |
| LAN Ports | 4 x 10/100 Mbps Fast Ethernet RJ-45 |
| Serial Interface | 1 x isolated RS-232 RJ-45 DTE, asynchronous up to 115,200 baud |
| Serial Protocols | SCADA, DNP3, T101-104, Raw Socket TCP and UDP |
| Console Port | Mini Type-B USB |
| Alarm Input | 1 x ALARM input port |
| Cellular Options | LTE Category 4, LTE Advanced Category 7, 5G NR RedCap, 5G Standalone and Non-Standalone Sub-6 GHz pluggable modules |
| Cellular Module PIDs | P-LTE-GB, P-LTEA7-NA, P-LTEA7-EAL, P-LTEA7-JP, P-5GS6-RC-GL, P-5GS6-R16SA-GL |
| Expansion Modules | IRM-1100-SP, IRM-1100-SPMI, IRM-1100-4A2T, IRM-1100-4S8I |
| Operating System | Cisco IOS XE |
| Power Input | 9.6 to 60V DC (nominal ±12V to ±48V DC) |
| Power Consumption | 6.6 W idle, 9.8 W typical, 12 W maximum |
| Dimensions | 2.36 x 5.22 x 4.92 in (6.0 x 13.25 x 12.49 cm) |
| Weight | 2.25 lb (1.02 kg) |
| Mounting | DIN rail (vertical or horizontal), panel, wall |
| Operating Temperature | -40 to 140°F (-40 to 60°C) sealed NEMA cabinet with no airflow; -40 to 158°F (-40 to 70°C) vented cabinet with 40 LFM; -40 to 167°F (-40 to 75°C) forced-air enclosure with 200 LFM |
| Storage Temperature | -40 to 185°F (-40 to 85°C) |
| Operating Altitude | Up to 13,800 ft |
| Ingress Protection | IP30 |
| Hazardous Locations | Class I Division 2, Class I Zone 2 (ANSI/ISA 12.12.01, CSA 213, IECEx, ATEX) |
| Industry Standards | IEC 61850-3, IEEE 1613, EN 50121-4 |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
