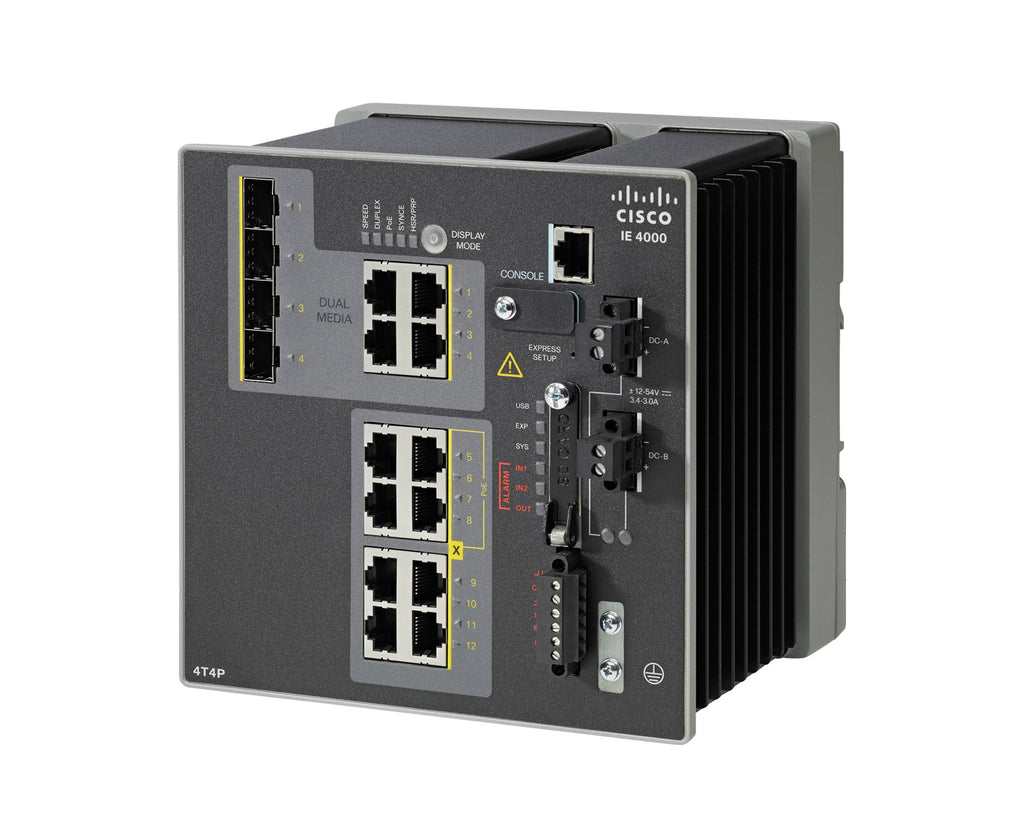

Cisco Industrial Ethernet 4000 Series - IE-4000-4T4P4G-E Switch - 12 p

Roll over image to zoom in Click on image to zoom

Robust industrial design

It is built for harsh environment and temperature range (-40 to 70 C). It is hardened for vibration, shock and surge, and noise immunity. It has resilient dual ring design via 4x Gigabit Ethernet uplink ports and complies with multi-industry specifications for automation, ITS, and substation environments. It also improves uptime, performance, and safety of industrial systems and equipment. It is fitted with compact, PLC (Programmable Logic Control) style DIN rail compliant form factor ideal for industrial deployment.

User-friendly GUI device manager

It allows easily configuration and monitoring via a web browser. It also eliminates the need for more complex terminal emulation programs.

SwapDrive: "Zero-Config" replacement

It has simple switch replacement in case of a failure. It helps ensure fast recovery.

High-density industrial power over Ethernet (PoE)

It reduces complexity with one cable for both connectivity and power. It controls costs by limiting wiring, distribution panels, and circuit breakers. It also creates space and reduces heat dissipation. It enables ready-to-use PoE devices like IP phones and wireless access points.

Full Gigabit Ethernet switch

It connects the wireless access point (802.11n and 802.11ac), enables HD IP Cameras and the PLC (Programmable Logic Control), allows SCADA (Supervisory Control And Data Acquisition) connectivity. It also provides introduction of the bandwidth-hungry applications in the industrial space and delivers multiple rings, redundant ring topology for the network configurations. It extends geographical scalability where longer distance connectivity is required.

Device Type	Switch - 12 ports - managed
Enclosure Type	DIN rail mountable
Subtype	Fast Ethernet
Ports	4 x 10/100 4 x 10/100 (PoE ) 4 x combo Gigabit SFP
Power Over Ethernet (PoE)	PoE
Capacity	Virtual interfaces (VLANs): 1000 \| IGMP groups: 1000
MAC Address Table Size	16K entries
Routing Protocol	Static IPv4 routing
Remote Management Protocol	SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, HTTP, SSH, CLI
Authentication Method	RADIUS, TACACS
Features	NAT support, BOOTP support, trunking, VLAN support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), DHCP relay, Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN), NTP time synchronization, Class of Service (CoS), Precision Time Protocol (PTP), IGMP filtering, PROFINET v2, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), SmartPort technology, Parallel Redundancy Protocol (PRP)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 1613
RAM	512 MB
Flash Memory	128 MB
Interfaces	4 x 100Base-TX RJ-45 PoE \| 4 x 1000Base-T RJ-45 uplink \| 4 x SFP uplink \| 1 x mini-USB Type B \| 1 x console RJ-45 \| 4 x 100Base-TX RJ-45
Expansion Slots	1 (total) / 0 (free) x SD Memory Card
Voltage Required	DC 9.6 - 60 V
Electric Current Required	3.7 A
Power Consumption Operational	35 Watt
Included Accessories	1 GB SD card
MTBF	562,300 hours
Compliant Standards	CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN55024, EN55022 Class A, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, EN 61000-4-8, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, IEC 60529 IP30, CSA 22.2 No. 142, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, EN50155, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-52, IEC 60068-2-60, EN 50121-4, NOM-019-SCFI-1998, VCCI Class A, KN22, China RoHS, EN 50121-3-2, EN 61326, IEC 61163, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC/UL/CSA/EN 60950-1, IEC 60068-2-3, EN 61373, ISO 9223
TAA Compliant	Yes
Software Included	Cisco IOS LAN Base
Width	6.1 in
Depth	5.1 in
Height	6.1 in
Weight	6.35 lbs
Service & Support	Limited warranty - advance parts replacement - 5 years - response time: 10 days
Min Operating Temperature	-40 °F
Max Operating Temperature	167 °F
Humidity Range Operating	5 - 95% (non-condensing)
Min Storage Temperature	-40 °F
Max Storage Temperature	185 °F

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
