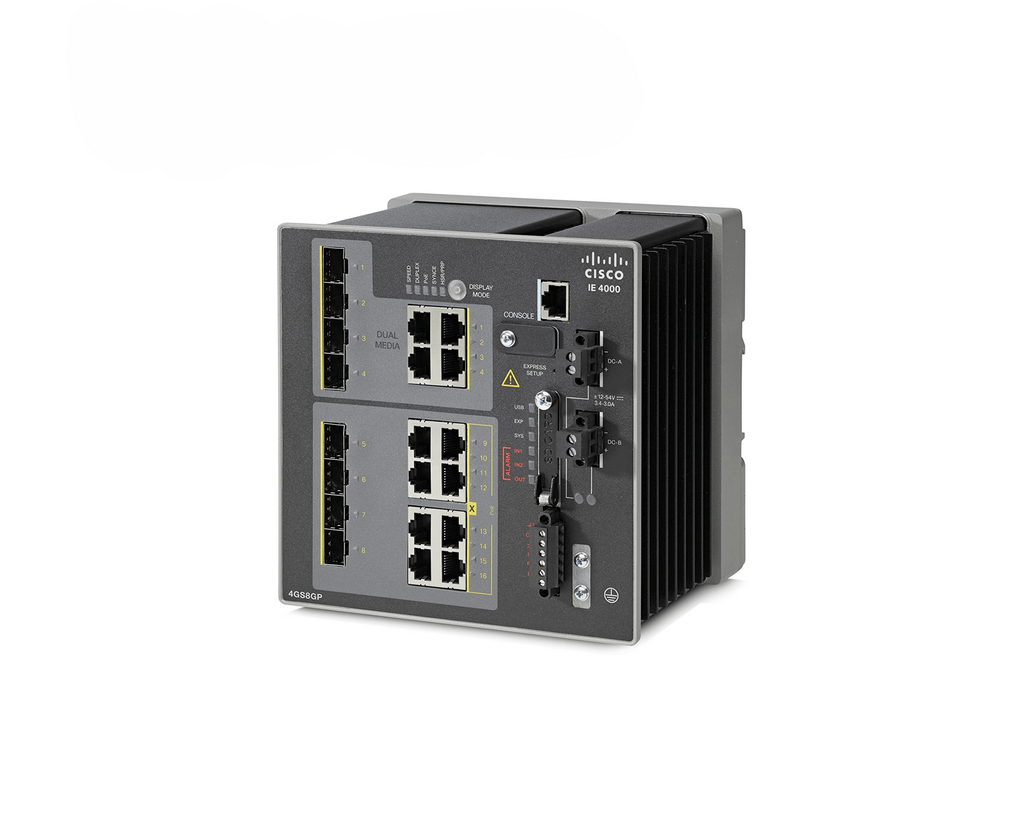

| Manufacturer | Cisco |
| Product Line | Industrial Ethernet 4000 Series |
| Product Type | Ruggedized Industrial Switch |
| SFP Ports | 4x GE SFP |
| PoE Ports | 8x GE PoE+ (125W Total Budget) |
| Uplink Ports | 4x GE Combo (SFP or RJ45, One Active Per Port at a Time) |
| Total Ports | 16 |
| Sibling | IE-4000-8GT8GP4G-E — 8x GE PoE+ Ports, 240W Total Budget (Higher Tier) |
| Switching Capacity | 20 Gbps Nonblocking (Series-Wide) |
| Forwarding Rate | Line Rate For All Ports and All Packet Sizes |
| Egress Queues | 4 |
| Unicast MAC Addresses | 16,000 |
| IGMP Multicast Groups | 1,000 |
| VLANs | 1,000 |
| Memory | 1GB DRAM, 128MB Onboard Flash, 1GB Removable SD Flash Card (Included) |
| Alarm I/O | 2x Alarm Input (Dry Contact), 1x Alarm Output Relay |
| Management Ports | 1x RJ-45 Console, 1x USB Mini-Type B Console |
| Input Voltage | Redundant DC, 9.6 to 60VDC |
| Maximum Input Current | 4.3A |
| Power Consumption | 40W (Measured at 9.6V, Excludes PoE) |
| Default Software | LAN Base (IOS) |
| Redundancy Protocols | REP, PRP, MRP Ring, HSR, EtherChannel, Flex Links |
| Industrial Protocols | EtherNet/IP (CIP), PROFINET, Modbus TCP |
| Operating Temperature | -40 to 75°C (-40 to 70°C Vented, -40 to 60°C Sealed Enclosure) |
| Humidity | 5 to 95% Non-Condensing |
| Ingress Protection | IP30 (EN60529) |
| MTBF | 536,220 Hours |
| Mounting | DIN Rail Compliant |
| Dimensions (H x W x D) | 6.12 x 6.12 x 5.09 in |
| Weight | 6.35 lb (2.88 kg) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
