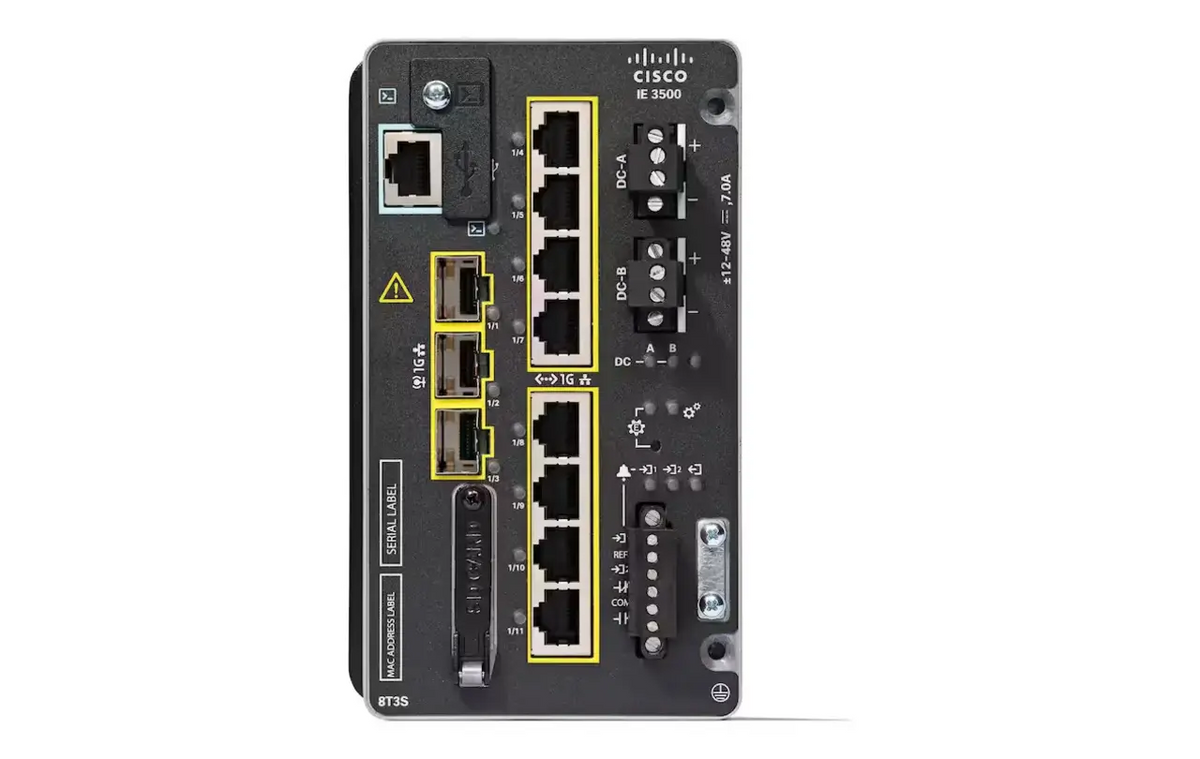

| Brand | Cisco |
| Model | IE-3500-8T3S-E |
| Series | IE3500 Rugged Series |
| Type | Rugged Managed Switch |
| Operating System | Cisco IOS XE |
| Downlink Ports | 8 x 10/100/1000 RJ45 |
| Uplink Ports | 3 x 100/1000 SFP |
| Total Base Ports | 11 |
| PoE | None (non-PoE model) |
| Expansion Modules (Sold Separately) | IEM-3500-8T=, IEM-3500-8S=, IEM-3500-16T=, IEM-3500-6T2S=, IEM-3500-14T2S= |
| Console Ports | 1 x RS-232 (RJ-45), 1 x USB Type C |
| USB | USB 2.0, for loading images and configurations |
| Removable Storage | Optional SD card, sold separately (16 GB) |
| Alarm | 2 inputs, 1 output (output rating 1.0 A at 24 VDC or 0.5 A at 48 VDC, resistive loads only) |
| Power Input | Dual DC, 12 to 48 VDC nominal, 9.6 to 60 VDC absolute |
| Input Current | 7.0 A |
| Power Consumption | 29 W (measured at 12 V) |
| Optional Power Supplies | PWR-IE50W-AC=, PWR-IE50W-AC-IEC=, PWR-IE50W-AC-L= (50 W, non-PoE) |
| Forwarding Rate | Line rate on all ports for all packet sizes |
| Queues | 8 |
| Unicast MAC Addresses | 24,000 |
| IGMP Multicast Groups | 1,024 |
| Active VLANs | 1,024 |
| VLAN IDs | 4,096 |
| SVIs | 32 |
| IPv4 Indirect Routes | 7,000 |
| IPv6 Indirect Routes | 3,500 |
| Spanning Tree Instances | 128 |
| Access Control Entries | 1,536 |
| User Flash | 5.1 GB |
| Jumbo Frames | 9,198 bytes (2,000 bytes with ERSPAN, DLR, PRP or HSR) |
| Layer 2 | 802.1Q, RSTP, MSTP, PVST+, LACP, EtherChannel, PAgP, Q-in-Q, LLDP, CDP, UDLD, VTP, voice VLAN, IGMP v1 to v3 snooping, MLD |
| Layer 3 | Inter-VLAN routing, static routing, OSPFv2, OSPFv3, RIP, policy-based routing |
| QoS | Ingress policing, rate limiting, egress queuing and shaping, auto QoS |
| Industrial Protocols | CIP EtherNet/IP, IEEE 1588 PTP v2, PROFINET, GOOSE classification, Modbus TCP/IP |
| Time-Sensitive Networking | Frame preemption (IEEE 802.3br, 802.1Qbu) |
| Redundancy | REP ring (including REP Fast), PROFINET MRP |
| Security | Port security, 802.1X (multidomain and MAB), DHCP snooping, Dynamic ARP Inspection, IP source guard, storm control, BPDU guard, SSH, SCP, SNMPv3, TACACS+, RADIUS, PACL, RACL, VACL, MACsec-128 |
| Management | Cisco Catalyst Center, WebUI, SNMP, syslog, DHCP server, SPAN, RSPAN, ERSPAN, NETCONF, RESTCONF, gRPC, Flexible NetFlow, IOx native Docker containers |
| Supported SFP Types | 100BASE-FX, LX10, EX, ZX, BX10; 1000BASE-SX, LX/LH, ZX, EX, BX10, BX40, BX80, T copper; CWDM, DWDM (sold separately) |
| Industrial-Rated SFP Examples | GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD=, GLC-T-RGD=, GLC-FE-100FX-RGD=, GLC-FE-100LX-RGD= |
| Mounting | DIN rail |
| Dimensions (W x H x D) | 3.48 x 6.00 x 5.29 in (8.84 x 15.24 x 13.44 cm) |
| Weight | 3.90 lb (1.77 kg) |
| Operating Temperature | -40 C to 70 C (40 LFM vented enclosure), -40 C to 60 C (sealed enclosure), -40 C to 75 C (enclosure with at least 200 LFM fan or blower) |
| Storage Temperature | -40 C to 85 C |
| Operating Humidity | 5% to 95% non-condensing |
| Operating Shock | 50 G, 3 ms |
| Altitude | Up to 15,000 ft with no derating |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
