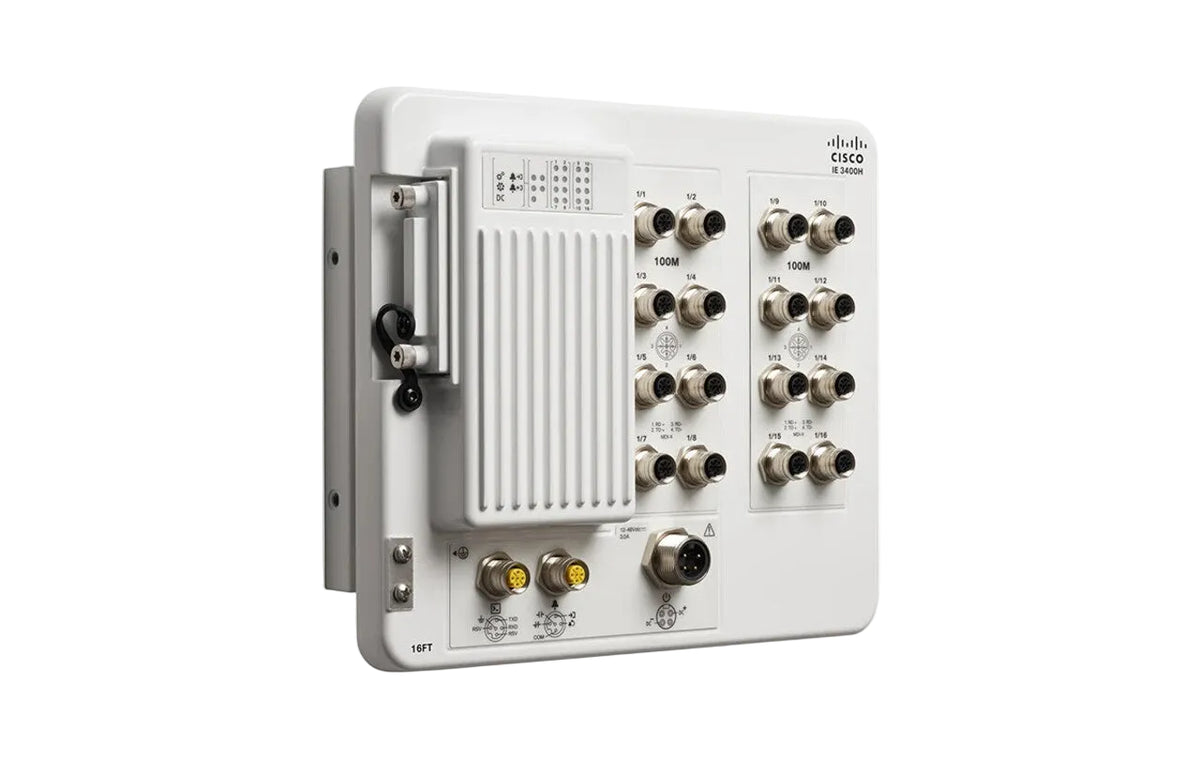

| Brand | Cisco |
| Model | IE-3400H-16FT-E |
| Series | Catalyst IE3400 Heavy Duty Series |
| Type | Heavy Duty Managed Layer 3 Ethernet Switch |
| Operating System | Cisco IOS XE |
| Ports | 16 x 10/100 Fast Ethernet, M12 D-coded 4-pin |
| Alarm | 1 alarm input and 1 alarm output relay, M12 A-coded 5-pin (relay rating 24VDC at 1A or 48VDC at 0.5A) |
| Console Port | 1 x M12 A-coded 5-pin |
| Removable Storage | Optional SD card, sold separately (4 GB or 16 GB) |
| Power Input | Mini-change connector, single power source |
| Input Voltage | 9.6 to 60 VDC (marked 12 to 48 VDC) |
| Input Current | 4.0 A at 9.6 V, 0.65 A at 60 V |
| Power Consumption | 38.4 W at 9.6 V, 39.0 W at 60 V |
| Forwarding Rate | Line rate on all ports for all packet sizes |
| Queues | 8 |
| Unicast MAC Addresses | 16,000 |
| IGMP Multicast Groups | 1,000 |
| VLANs | 256 |
| Spanning Tree Instances | 128 |
| Access Control Entries | 3,024 |
| DRAM | 4 GB |
| User-Accessible Flash | 1.5 GB |
| Jumbo Frames | 8,996 bytes (limited to 2,000 bytes with ERSPAN, DLR, PRP, HSR or SGT) |
| Layer 2 | Spanning tree variants, LACP, EtherChannel, Q-in-Q, LLDP, CDP, IGMP v1 to v3 snooping |
| Layer 3 | Inter-VLAN routing, static routing |
| Industrial Protocols | CIP EtherNet/IP, PROFINET, IEEE 1588 PTP v2, GOOSE and Modbus TCP/IP classification |
| Redundancy | REP, PROFINET MRP, PRP (ports 1/1 to 1/4), HSR, DLR |
| Security | 802.1X, port security, DHCP snooping, Dynamic ARP Inspection, IP source guard, storm control, SSH, SNMPv3, TACACS+, RADIUS |
| Management | Cisco Catalyst Center, WebUI, SNMP, syslog, NETCONF, RESTCONF, YANG, Flexible NetFlow, IOx native Docker containers |
| Mounting | Wall mount |
| Dimensions (H x W x D) | 9.58 x 10.90 x 3.15 in (24.33 x 27.69 x 8.00 cm) |
| Weight (With Mounting Bracket) | 11.25 lb (5.10 kg) |
| Ingress Protection | IP66 and IP67 |
| Operating Temperature | -40 C to 75 C (measured inside the enclosure) |
| Storage Temperature | -40 C to 85 C |
| Operating Humidity | 5% to 95% non-condensing |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
