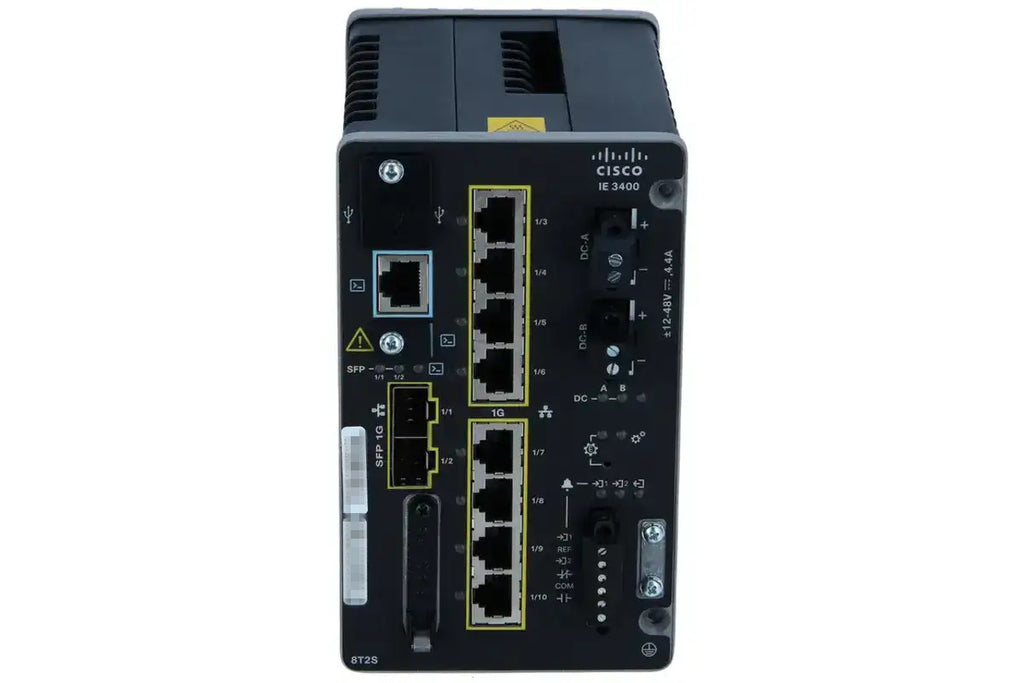

| Manufacturer | Cisco |
| Product Line | Catalyst IE3400 Rugged Series |
| Product Type | Ruggedized Industrial Switch |
| Copper Ports | 8x 10/100/1000 RJ-45 |
| SFP Ports | 2x 100/1000 |
| Total Ports (Base) | 10, Expandable To 26 With Compatible Modules |
| PoE | Not Applicable (Non-PoE Model) |
| License | Network Advantage — Same Hardware as IE-3400-8T2S-E (Network Essentials) |
| Forwarding Rate | Line Rate For All Ports and All Packet Sizes |
| Queues | 8 |
| MAC Address Table | 16,000 |
| IGMP Multicast Groups | 1,000 |
| VLANs | 256 |
| IPv4/IPv6 Indirect Routes | 3,000 / 512 |
| STP Instances | 128 |
| ACL Entries (PACL/VACL/RACL) | 3,000 |
| DRAM | 4GB |
| Flash (User Accessible) | 1.5GB |
| SD Card Support (Optional) | 4GB or 16GB |
| Jumbo Frames | 8,996 Bytes (2,000 Bytes When Using ERSPAN/DLR/PRP/HSR/SGT) |
| Removable Storage | USB, SD Card (Both Optional, Not Included By Default) |
| Alarms | 2 In, 1 Out |
| Console Ports | 1x RS-232 (RJ-45), 1x USB Mini Type B |
| Power Input | Dual DC, Redundant, 9.6 to 60VDC |
| Input Current | 6.3A |
| Power Consumption | 36W Typical |
| Redundancy Protocols | REP, MRP, PRP (Select Ports), DLR, HSR-SAN |
| MTBF | 549,808 Hours |
| Operating Temperature | -40 to 70°C (Vented), -40 to 60°C (Sealed), -40 to 75°C (Fan/Blower-Equipped) |
| Storage Temperature | -40 to 85°C |
| Operating Altitude | Up To 15,000 ft |
| Humidity | 5 to 95% Non-Condensing |
| Dimensions (H x W x D) | 6 x 3.6 x 5.3 in |
| Weight | 3.8 lb (1.7 kg) |
| Mounting | DIN Rail |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
