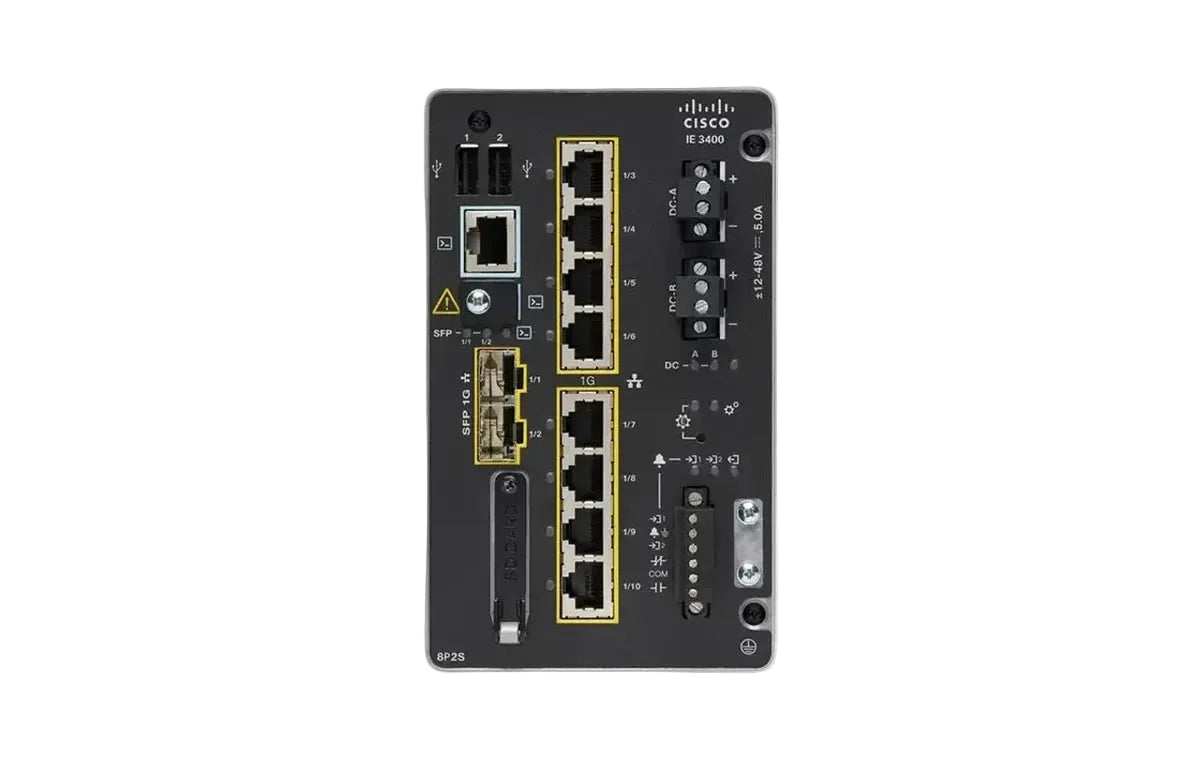

| Brand | Cisco |
| Model | IE-3400-8P2S-E |
| Series | Catalyst IE3400 Rugged Series |
| Type | Rugged Managed PoE Switch |
| Operating System | Cisco IOS XE |
| Downlink Ports | 8 x 10/100/1000 RJ45, PoE/PoE+ |
| Uplink Ports | 2 x 100/1000 SFP |
| Total Base Ports | 10 |
| Maximum Ports With Expansion Module | 26 |
| PoE Standards | IEEE 802.3af PoE, IEEE 802.3at PoE+ |
| PoE Budget | 240 W base, 480 W with expansion module (up to 24 PoE/PoE+ ports) |
| Console Ports | 1 x RS-232 (RJ-45), 1 x USB Mini Type B |
| USB | USB 2.0, for loading images and configurations |
| Removable Storage | Optional SD card, sold separately (4 GB or 16 GB) |
| Alarm | 2 inputs, 1 output |
| Power Input | Redundant dual DC, 9.6 to 60 VDC (PoE requires 48 VDC, PoE+ requires 54 VDC) |
| Forwarding Rate | Line rate on all ports for all packet sizes |
| Queues | 8 |
| Unicast MAC Addresses | 16K |
| IGMP Multicast Groups | 1K |
| VLANs | 256 |
| Spanning Tree Instances | 128 |
| Access Control Entries | 3K |
| DRAM | 4 GB |
| User-Accessible Flash | 1.5 GB |
| Jumbo Frames | 8996 bytes (limited to 2000 bytes with ERSPAN, DLR, PRP, HSR or SGT) |
| Layer 2 | 802.1Q, RSTP, MSTP, LLDP, CDP, LACP, EtherChannel, Q-in-Q, VTP, IGMP v1 to v3 snooping |
| QoS | Ingress policing, rate limiting, egress queuing and shaping, auto QoS |
| Industrial Protocols | CIP EtherNet/IP, IEEE 1588 PTP v2, PROFINET |
| Redundancy | REP, PROFINET MRP, PRP (ports Gig1/1 to Gig1/4), HSR, DLR, HSR-PRP dual redbox |
| Security | Port security, 802.1X, DHCP snooping, Dynamic ARP Inspection, storm control, SSH, SNMPv3, RADIUS, TACACS+, MACsec-128 |
| Management | Cisco Catalyst Center, WebUI, Flexible NetFlow, NETCONF, RESTCONF, YANG, IOx native Docker containers |
| Expansion Modules (PoE, Sold Separately) | IEM-3400-8P=, IEM-3300-8P=, IEM-3300-16P=, IEM-3300-4MU= |
| Optional PoE-Capable Power Supplies | PWR-IE65W-PC-AC= (65 W), PWR-IE65W-PC-DC= (65 W), PWR-IE170W-PC-AC= (170 W), PWR-IE170W-PC-DC= (170 W), PWR-IE240W-PCAC-L= (240 W), PWR-IE480W-PCAC-L= (480 W) |
| Mounting | DIN rail |
| Dimensions (H x W x D) | 6 x 4.4 x 5.3 in (15.2 x 11.2 x 13.5 cm) |
| Weight | 5.0 lb (2.3 kg) |
| Operating Temperature | -40 C to 70 C (40 LFM vented enclosure), -40 C to 60 C (sealed enclosure), -40 C to 75 C (enclosure with at least 200 LFM fan or blower) |
| Storage Temperature | -40 C to 85 C |
| Operating Humidity | 5% to 95% non-condensing |
| Altitude | Up to 15,000 ft |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
