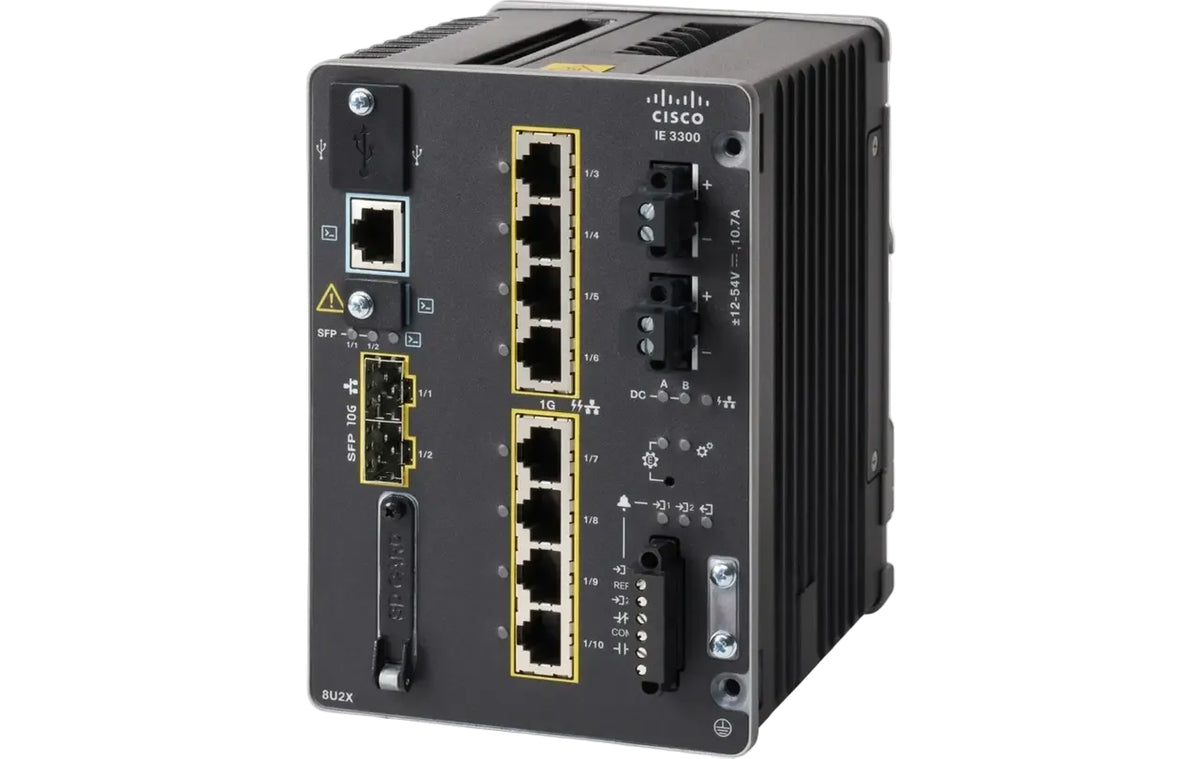

| Brand | Cisco |
| Model | IE-3300-8U2X-E |
| Series | Catalyst IE3300 Rugged |
| Form Factor | Modular, fanless, convection-cooled |
| Base Ports | 10 total |
| Copper Ports | 8 x Gigabit (4PPoE Type 3) |
| Uplink Ports | 2 x 1G/10G SFP+ |
| Expansion | Up to 26 Gigabit ports with one expansion module |
| PoE Power Budget | Up to 480W (including expansion module) |
| Forwarding Rate | Line rate for all ports and all packet sizes |
| Number of Queues | 8 |
| Unicast MAC Addresses | 16K |
| IGMP Multicast Groups | 1K |
| VLANs | 256 |
| IPv4 Indirect Routes | 3000 |
| IPv6 Indirect Routes | 512 |
| STP Instances | 128 |
| Access Control Entries (PACL/VACL/RACL) | 3K |
| DRAM | 4 GB |
| Flash (User Accessible) | 1.5 GB |
| SD Card Capacity | 4 GB, 16 GB |
| Removable Storage | USB, SD card |
| Jumbo Frames | 8996 bytes |
| Alarm Ports | 2 alarms in, 1 alarm out |
| Console Ports | 1 RS-232 (via RJ-45), 1 USB Mini Type B |
| Power Inputs | Dual DC power inputs |
| Dimensions | 6 x 4.4 x 5.3 in (15.2 x 11.2 x 13.5 cm) |
| Weight | 4.5 lb (2.0 kg) |
| Mounting | DIN rail |
| Ingress Protection | IP30 |
| Operating Temperature | -40 to 167°F (-40 to 75°C) with minimum 200 LFM fan or blower-equipped enclosure |
| Storage Temperature | -40 to 185°F (-40 to 85°C) |
| Relative Humidity | 5% to 95%, non-condensing |
| Altitude | Up to 15,000 ft |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
