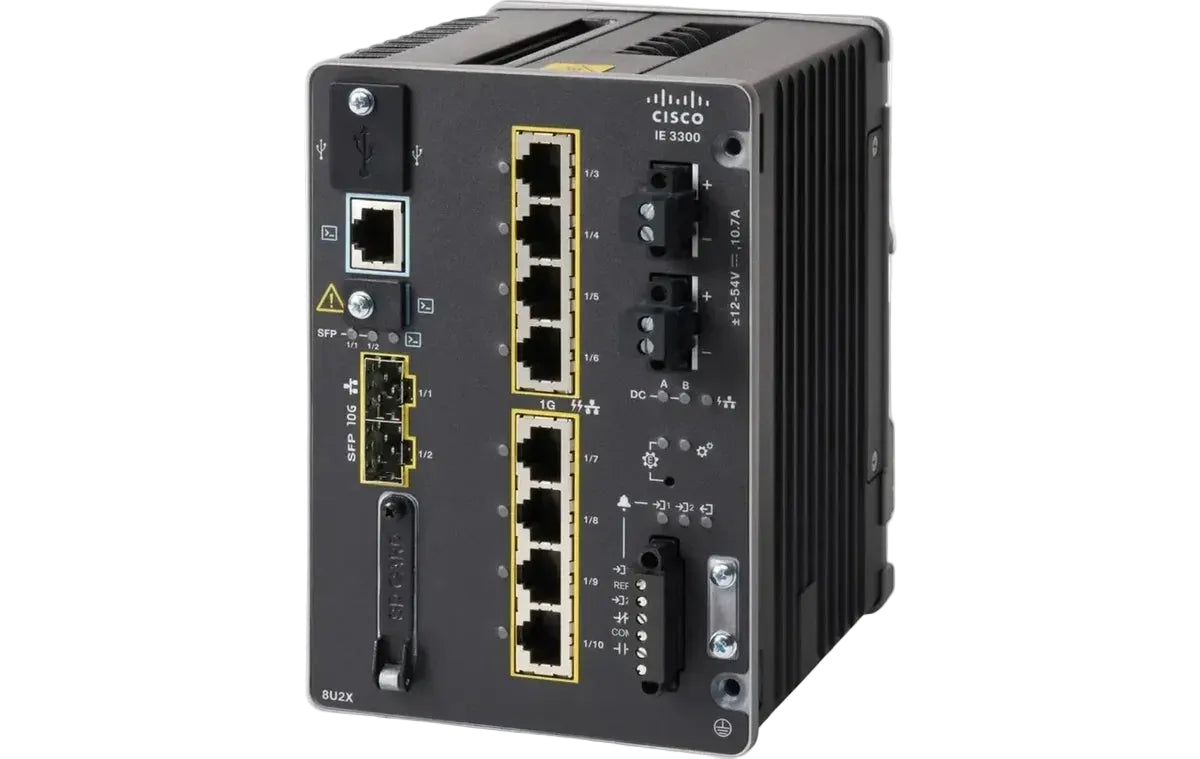

| Brand | Cisco |
| Model | IE-3300-8U2X-A |
| Series | Catalyst IE3300 Rugged Series |
| Type | Rugged Managed PoE Switch |
| Operating System | Cisco IOS XE |
| Downlink Ports | 8 x 10/100/1000 RJ45, 4PPoE Type 3 |
| Uplink Ports | 2 x 1G/10G SFP+ |
| Total Base Ports | 10 |
| PoE Standard | IEEE 802.3bt Type 3 (4PPoE) on the copper ports |
| PoE Budget | 480 W |
| Expansion Modules (Sold Separately) | IEM-3300-8T=, IEM-3300-8S=, IEM-3300-16T=, IEM-3300-6T2S=, IEM-3300-14T2S=, IEM-3300-8P=, IEM-3300-16P=, IEM-3300-4MU= |
| Console Ports | 1 x RS-232 (RJ-45), 1 x USB Mini Type B |
| USB | USB 2.0, for loading images and configurations |
| Removable Storage | Optional SD card, sold separately (4 GB or 16 GB) |
| Alarm | 2 inputs, 1 output |
| Power Input | Redundant dual DC, 9.6 to 60 VDC absolute (PoE requires 48 VDC, PoE+ and 4PPoE require 54 VDC) |
| Power Consumption | 42 W (measured at 54 V, excluding PoE power) |
| Optional PoE-Capable Power Supplies | PWR-IE65W-PC-AC= (65 W), PWR-IE65W-PC-DC= (65 W), PWR-IE170W-PC-AC= (170 W), PWR-IE170W-PC-DC= (170 W), PWR-IE240W-PCAC-L= (240 W), PWR-IE480W-PCAC-L= (480 W) |
| Forwarding Rate | Line rate on all ports for all packet sizes |
| Queues | 8 |
| Unicast MAC Addresses | 16K |
| IGMP Multicast Groups | 1K |
| VLANs | 256 |
| Spanning Tree Instances | 128 |
| Access Control Entries | 3K |
| IPv4 Indirect Routes | 3,000 |
| IPv6 Indirect Routes | 512 |
| DRAM | 4 GB |
| User-Accessible Flash | 1.5 GB |
| Jumbo Frames | 8996 bytes |
| Layer 2 | 802.1Q, RSTP, MSTP, PVST+, LACP, EtherChannel, Q-in-Q, VTP, IGMP v1 to v3 snooping |
| Layer 3 | Inter-VLAN routing, static routing, OSPF (IPv4 and IPv6), BGP, RIP, IS-IS, EIGRP, policy-based routing, VRRP, HSRP, BFD echo mode for OSPFv3, VRF-lite |
| IP Multicast | PIM-SM, PIM-DM, MSDP, BSR, Auto-RP, Embedded RP |
| QoS | Ingress policing, rate limiting, egress queuing and shaping, auto QoS |
| Industrial Protocols | CIP EtherNet/IP, IEEE 1588 PTP v2 (default profile only on 10G uplinks), PROFINET, GOOSE classification, Modbus TCP/IP |
| Redundancy | REP ring (including REP Fast and REP Autodiscover), PROFINET MRP |
| Security | Port security, 802.1X, DHCP snooping, Dynamic ARP Inspection, IP source guard, storm control, SSH, SNMPv3, TACACS+, RADIUS, MACsec-256 |
| Management | Cisco Catalyst Center, WebUI, SNMP, syslog, DHCP server, SPAN, RSPAN, NETCONF, RESTCONF, YANG, Flexible NetFlow, IOx native Docker containers |
| Supported 10G SFP+ Types | 10GBASE-SR, LR, LRM, ER, ZR, BiDi, passive twinax, CWDM, DWDM (sold separately) |
| 10G SFP+ Examples | SFP-10G-SR, SFP-10G-SR-X, SFP-10G-LR, SFP-10G-LR-X, SFP-10G-ER, SFP-H10G-CUxM |
| Mounting | DIN rail |
| Dimensions (H x W x D) | 6 x 4.4 x 5.3 in (15.2 x 11.2 x 13.5 cm) |
| Weight | 4.5 lb (2.0 kg) |
| Operating Temperature | -40 C to 70 C (40 LFM vented enclosure), -40 C to 60 C (sealed enclosure), -40 C to 75 C (enclosure with at least 200 LFM fan or blower) |
| Storage Temperature | -40 C to 85 C |
| Operating Humidity | 5% to 95% non-condensing |
| Operating Shock | 50 G, 3 ms half sine |
| Altitude | Up to 15,000 ft |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
