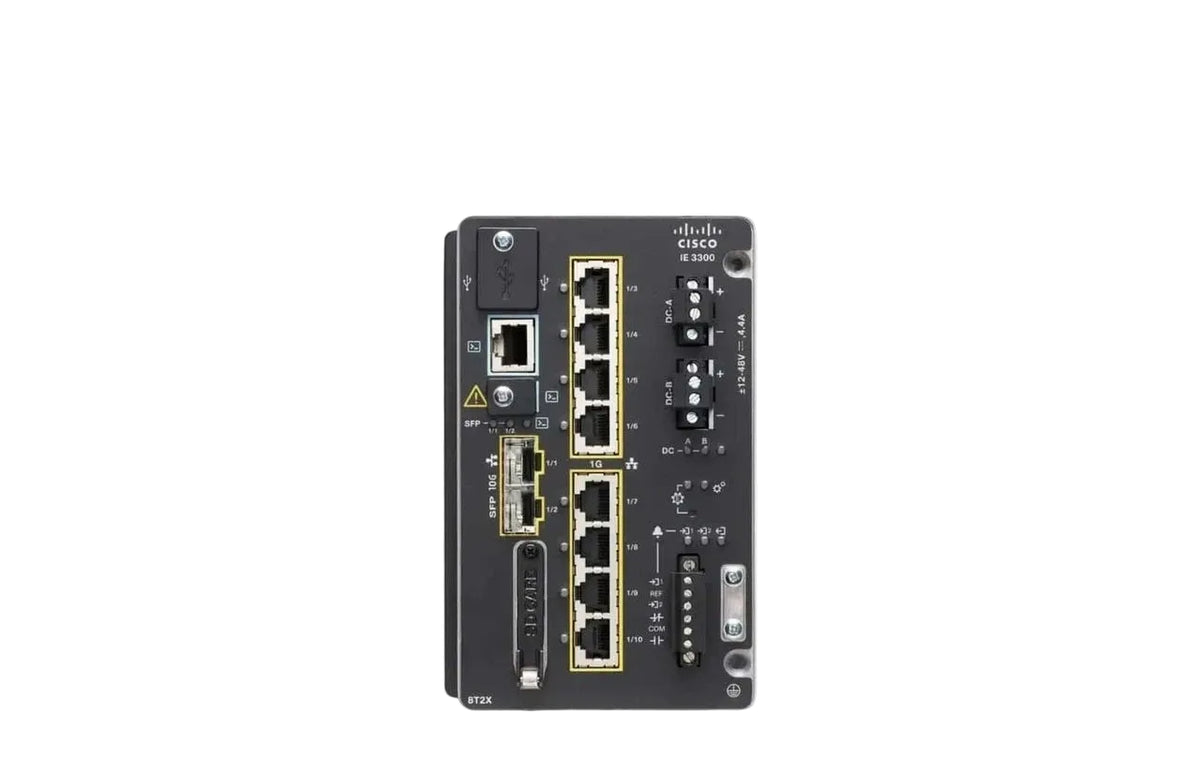

| Brand | Cisco |
| Model | IE-3300-8T2X-A |
| Series | Catalyst IE3300 Rugged Series |
| Product Type | Modular industrial Ethernet switch |
| Total Ports | 10 |
| RJ-45 Ports | 8 x 10/100/1000 |
| SFP+ Ports | 2 x 1G/10G SFP+ |
| PoE | Not supported |
| Power Inputs | Dual redundant DC |
| Input Voltage | 9.6 to 60 VDC |
| Maximum Input Current | 4.5 A |
| Power Consumption | 28 W (measured at 12 V) |
| Alarm Contacts | 2 inputs, 1 output |
| Console | 1 x RS-232 (RJ-45), 1 x USB Mini Type B |
| USB | USB 2.0 for loading images and configurations (optional storage) |
| SD Card | Optional, 4 GB or 16 GB |
| Forwarding Rate | Line rate on all ports and all packet sizes |
| Queues | 8 |
| Unicast MAC Addresses | 16K |
| IGMP Multicast Groups | 1K |
| VLANs | 256 |
| STP Instances | 128 |
| Access Control Entries (PACL/VACL/RACL) | 3K |
| IPv4 Indirect Routes | 3000 |
| IPv6 Indirect Routes | 512 |
| Jumbo Frames | 8996 bytes |
| DRAM | 4 GB |
| User-Accessible Flash | 1.5 GB |
| Mounting | DIN rail |
| Expansion Module Width | Adds 2 in (single-wide) or 3 in (double-wide) |
| Dimensions (H x W x D) | 6 x 3.8 x 5.3 in (15.2 x 9.7 x 13.5 cm) |
| Weight | 3.6 lb (1.6 kg) |
| Operating Temperature | -40 to 70 C (vented enclosure, 40 LFM), -40 to 60 C (sealed enclosure), -40 to 75 C (fan or blower enclosure, minimum 200 LFM) |
| Storage Temperature | -40 to 85 C |
| Operating Humidity | 5% to 95% relative, non-condensing |
| Altitude | Up to 15,000 ft |
| Ingress Protection | IP30 |
| Shock (Operational) | 50 G, 3 ms half sine (IEC 60068-2-27) |
| Vibration | Sinusoidal, 5 to 150 Hz (IEC 60068-2-6) |
| MTBF | 463,629 hours (Telcordia Issue 3, predicted) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
