| Brand | Cisco |

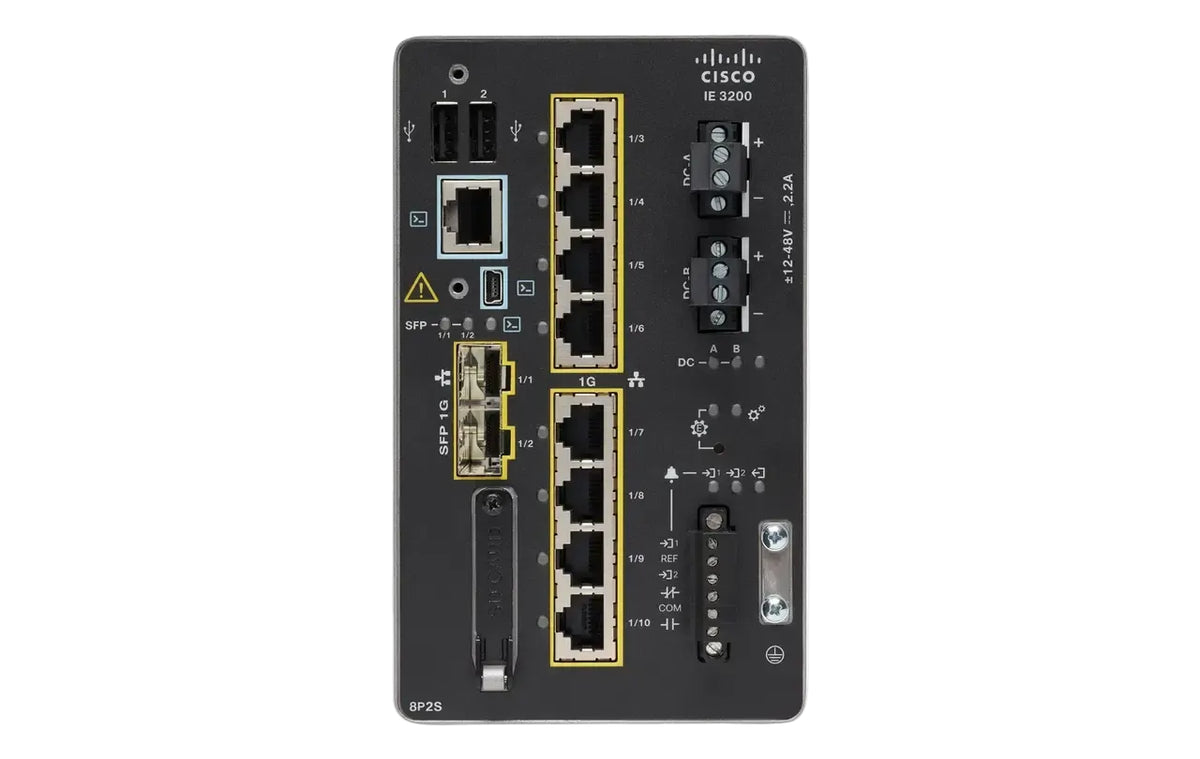

| Model | IE-3200-8P2S-E |
| Series | Catalyst IE3200 Rugged Series |
| Type | Managed Layer 2 and Layer 3 Industrial Ethernet Switch |
| 10/100/1000 RJ-45 Ports | 8 |
| 100/1000 SFP Ports | 2 |
| PoE Budget | 240 W |
| Forwarding Rate | Line rate, all ports and packet sizes |
| Queues | 8 |
| Unicast MAC Addresses | 16K |
| IGMP Multicast Groups | 1K |
| VLANs | 256 |
| STP Instances | 128 |
| Access Control Entries | 3K |
| Jumbo Frames | 8996 bytes |
| DRAM | 2 GB |
| Flash (User Accessible) | 1.5 GB |
| Removable Storage | USB and SD card slots (media sold separately) |
| Alarm Ports | 2 inputs, 1 output |
| Console | 1 RS-232 RJ-45, 1 USB Mini Type B |
| Power Inputs | Dual redundant DC |
| Input Voltage | 9.6 to 60 VDC (48 VDC required for PoE, 54 VDC required for PoE+) |
| Maximum Input Current | 5.5 A |
| Power Consumption | 32 W (measured at 54 V, excluding PoE power) |
| Compatible Power Supplies, PoE Capable | PWR-IE65W-PC-AC=, PWR-IE65W-PC-DC=, PWR-IE170W-PC-AC=, PWR-IE170W-PC-DC=, PWR-IE240W-PCAC-L=, PWR-IE480W-PCAC-L= (switch power plus PoE load must stay within supply wattage) |
| Compatible Power Supplies, No PoE | PWR-IE50W-AC=, PWR-IE50W-AC-IEC=, PWR-IE50W-AC-L= |
| Mounting | DIN rail |
| Ingress Protection | IP30 |
| Operating Temperature | -40 C to 70 C (vented enclosure, 40 LFM); -40 C to 60 C (sealed enclosure); -40 C to 75 C (fan or blower enclosure, minimum 200 LFM) |
| Storage Temperature | -40 C to 85 C |
| Operating and Storage Altitude | Up to 15,000 ft |
| Humidity | 5% to 95% non-condensing |
| Shock (Operational) | 50 G, 3 ms, half sine |
| Vibration | IEC 60068-2-6, 5 Hz to 150 Hz, sinusoidal |
| Dimensions (H x W x D) | 6 x 3.6 x 5.3 in (15.2 x 9.1 x 13.5 cm) |
| Weight | 3.8 lb (1.7 kg) |
| Compatible 100 Mbps SFP, Industrial Temperature | GLC-FE-100FX-RGD, GLC-FE-100LX-RGD |
| Compatible 100 Mbps SFP, Commercial Temperature | GLC-FE-100FX, GLC-FE-100LX, GLC-FE-100EX, GLC-FE-100ZX, GLC-FE-100BX-U, GLC-FE-100BX-D (derate switch operating temperature) |
| Compatible 1000 Mbps SFP, Industrial Temperature | GLC-SX-MM-RGD, GLC-LX-SM-RGD, GLC-ZX-SM-RGD, GLC-T-RGD=, GLC-BX-U-I=, GLC-BX-D-I=, GLC-BX40-U-I=, GLC-BX40-D-I=, GLC-BX40-DA-I=, GLC-BX80-U-I=, GLC-BX80-D-I= |
| Compatible 1000 Mbps SFP, Extended Temperature | SFP-GE-S, SFP-GE-L, SFP-GE-Z, GLC-TE, GLC-SX-MMD=, GLC-LH-SMD=, GLC-ZX-SMD= (derate switch operating temperature) |
| Compatible 1000 Mbps SFP, Commercial Temperature | GLC-SX-MM, GLC-LH-SM, GLC-ZX-SM, GLC-EX-SMD, GLC-BX-U, GLC-BX-D (derate switch operating temperature) |
| Compatible CWDM and DWDM SFP, Commercial Temperature | CWDM-SFP-1470, CWDM-SFP-1490, CWDM-SFP-1530, CWDM-SFP-1610, DWDM-SFP-3033, DWDM-SFP-3112 (derate switch operating temperature) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
