| Brand | Cisco |

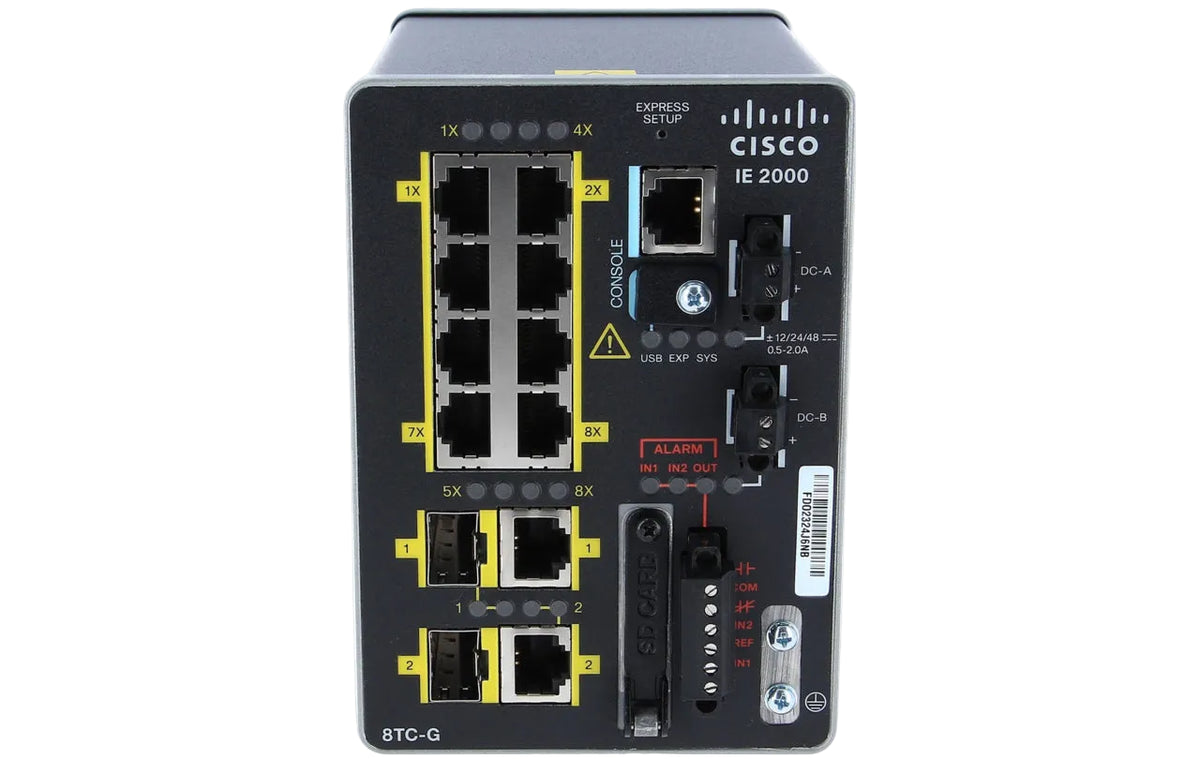

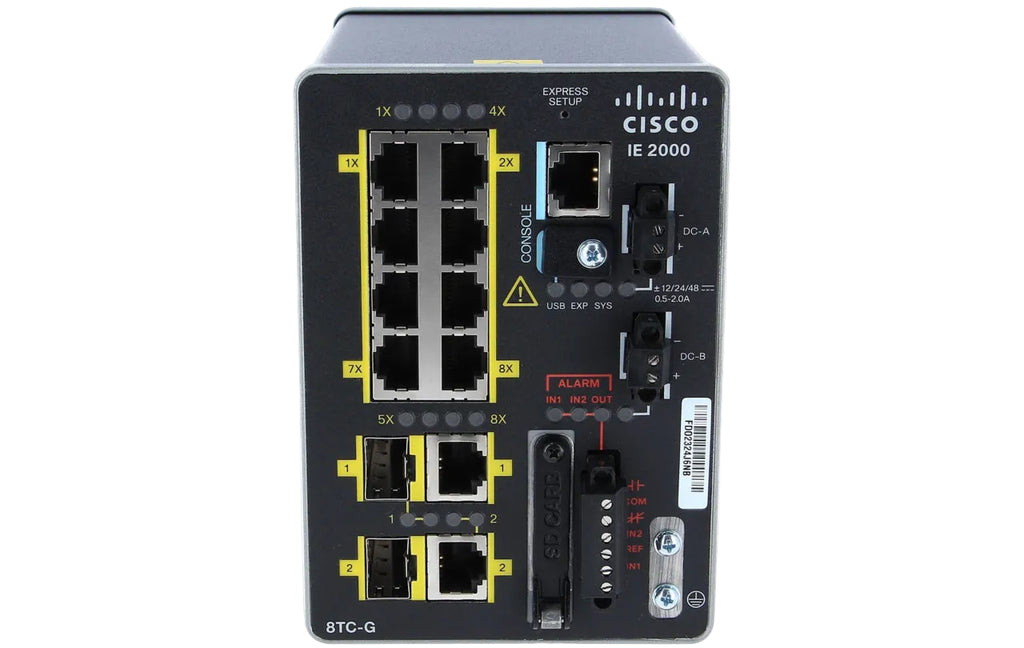

| Model | IE-2000-8TC-G-E |
| Series | Industrial Ethernet 2000 Series |
| Type | Compact Ruggedized Managed Switch |
| Downlink Ports | 8 x 10/100 RJ45 |
| Uplink Ports | 2 x 10/100/1000 combo (RJ-45 or SFP) |
| Total Ports | 10 |
| PoE | None (non-PoE model) |
| IEEE 1588 | Yes (IEEE 1588v2 PTP) |
| DRAM | 256 MB with ECC |
| Onboard Flash | 64 MB |
| Removable Storage | Optional SD card, sold separately (1 GB) |
| USB | Mini-USB connector |
| Alarm | 2 dry-contact inputs, 1 output relay (output rating 1.0 A at 24 VDC or 0.5 A at 48 VDC) |
| Power Consumption | 12.5 to 20 W (8-port downlink models) |
| Optional Power Supplies | PWR-IE50W-AC=, PWR-IE50W-AC-L= (50 W, non-PoE) |
| Forwarding Rate | 5.66 Mpps at 64-byte packets (line rate at all packet sizes) |
| Egress Buffer | 2 MB |
| Unicast MAC Addresses | 8,000 |
| IGMP Multicast Groups | 255 |
| VLANs | 1,005 |
| IPv4 MAC Security ACEs | 384 (default TCAM template) |
| Layer 2 | 802.1Q, 802.1p, 802.1s, 802.1w, 802.3ad LACP, EtherChannel, VTPv3, Voice VLAN, Flexlink, UDLD, CDP, LLDP, IGMP v1 to v3 snooping |
| Layer 3 | IPv4 static routing, IPv6 host support |
| QoS | Ingress policing, rate limiting, egress queuing and shaping, AutoQoS, PROFINET QoS |
| Industrial Protocols | EtherNet/IP (CIP), PROFINET v2, Modbus TCP/IP, IEEE 1588v2 PTP |
| Resiliency | Cisco REP, PROFINET MRP (IEC 62439-2) |
| Security | 802.1X (guest VLAN, MAB, multi-domain), port security, DHCP snooping, Dynamic ARP Inspection, IP source guard, storm control, ACLs, SSHv2, SNMPv3, TACACS+, RADIUS, BPDU Guard |
| Management | Express Setup, Web Device Manager, Cisco Catalyst Center, Prime Infrastructure, CNA, Auto SmartPort, Telnet, HTTPS, SNMP, syslog, SPAN, RSPAN, DHCP server, EEM |
| Supported SFP Types | 100BASE-FX, LX, EX, ZX, BX; 1000BASE-SX, LX/LH, EX, ZX, BX, T copper; CWDM, DWDM (sold separately) |
| Industrial-Rated SFP Examples | GLC-FE-100FX-RGD=, GLC-SX-MM-RGD=, GLC-LX-SM-RGD=, GLC-ZX-SM-RGD=, GLC-T-RGD= |
| Mounting | DIN rail (wall mount kit Wallmount-IE2k-08= sold separately) |
| Operating Temperature | -40 C to 70 C (vented enclosure, 40 LFM), -40 C to 60 C (sealed enclosure), -34 C to 75 C (fan or blower enclosure, 200 LFM) |
| Storage Temperature | -40 C to 85 C |
| Operating Humidity | 5% to 95% non-condensing |
| Operating Shock | 30 G, 11 ms half sine |
| Altitude | Up to 15,000 ft |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
