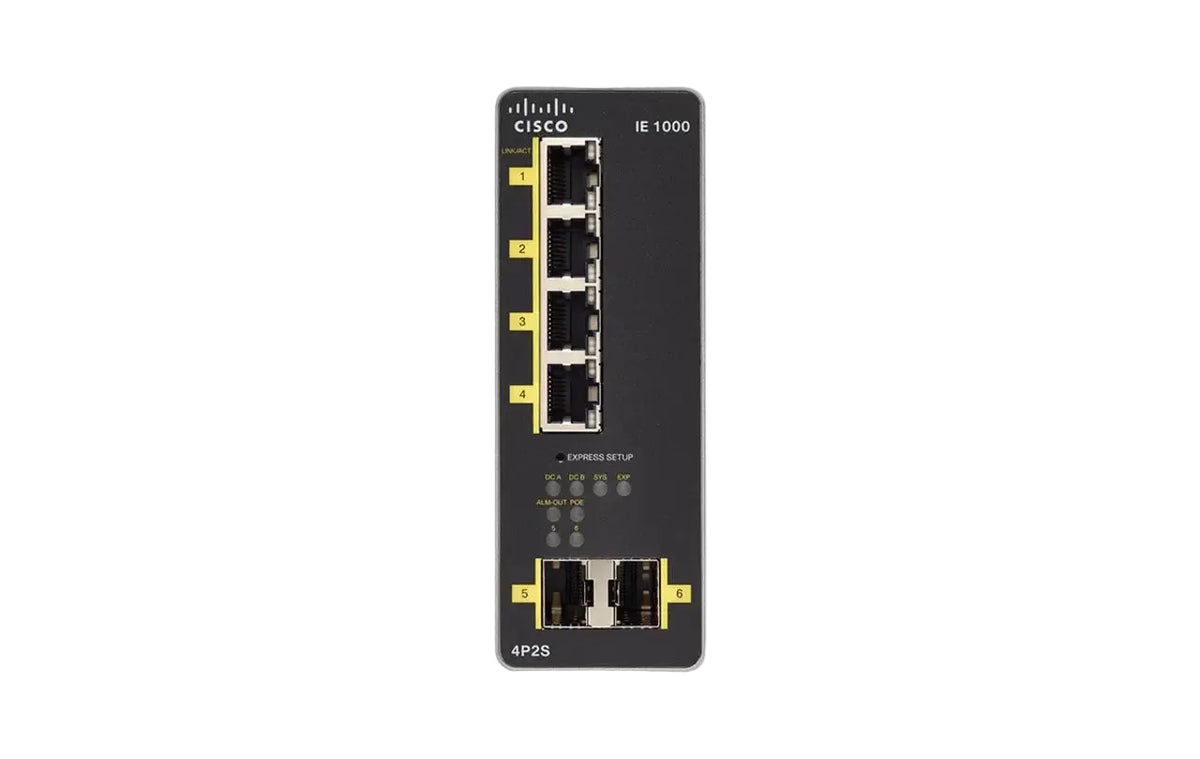

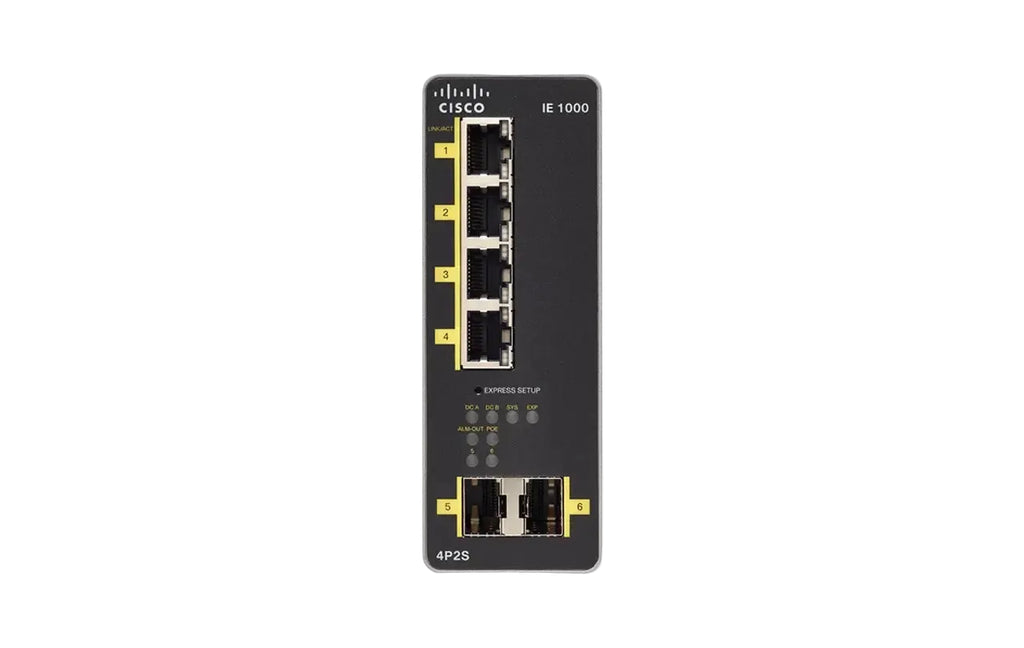

| Product & Series | Cisco IE-1000-4P2S-LM, part of the Cisco Industrial Ethernet 1000 Series |
| Total Ports | 6 |
| Access Ports | 4 x 10/100/1000BASE-T PoE and PoE+ ports, RJ-45, 4-pair Category 5 UTP cabling |
| Uplink Ports | 2 x Gigabit SFP, supporting fiber up to 80 km |
| PoE Budget | 120W |
| PoE Standards | IEEE 802.3af PoE and 802.3at PoE+ |
| Input Power Voltage | 48 to 54V |
| Power Consumption | Without PoE 8.6W; with PoE 72 to 140.4W |
| Maximum Forwarding Bandwidth | 2.8 Gbps |
| Maximum Switching Bandwidth | 5.6 Gbps |
| Memory | 128 MB DDR2 DRAM without ECC; 160 MB onboard flash |
| Alarm | Output connector on top panel, 1.0A at 24VDC or 0.5A at 48VDC |
| Redundancy | Redundant voltage feeds, alarm relay support |
| Boot Time | 50 seconds from cold boot |
| Layer 2 Standards | IEEE 802.1D STP, 802.1p COS, 802.1Q VLAN, 802.1s MSTP, 802.1w RSTP, 802.1AB LLDP, 802.3ad LACP, 802.3x flow control |
| Software Features | LLDP, Cisco CDP aware, MSTP, STP Portfast, static IP, Trust Ingress DSCP, COS, Priority Port, port security, IGMP querier, IGMP snooping, DHCP server, DHCP snooping, BPDU guard, EtherChannel, Smartport Macro, SPAN port mirroring, storm control, alarms, EtherNet/IP (EDS) |
| Security and AAA | IEEE 802.1X, TACACS+ and RADIUS AAA client |
| Management | SNMP v2 and v3, SNMP traps, syslog, SSH, Telnet, HTTP, zero-touch IP discovery or DHCP addressing |
| Dimensions (H x W x D) | 5.0 x 1.8 x 5.3 in. (127 x 45.7 x 134 mm) |
| Weight | 1.70 lb (0.77 kg) |
| Mounting | DIN rail |
| Operating Temperature | -40 to +70 C vented enclosure; -40 to +60 C sealed enclosure; -34 to +75 C fan or blower-equipped enclosure |
| Storage Temperature | -40 to +85 C |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Altitude | Operating up to 13,800 ft; storage up to 15,000 ft |
| Shock | IEC 60068-2-27, operational 30G 11 ms half sine |
| MTBF | 374,052 hours (42.7 years) |
| Sibling Comparison | IE-1000-8P2S-LM has 8 PoE ports; IE-1000-6T2T-LM and IE-1000-4T1T-LM have no PoE |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
