| Brand | Cisco |

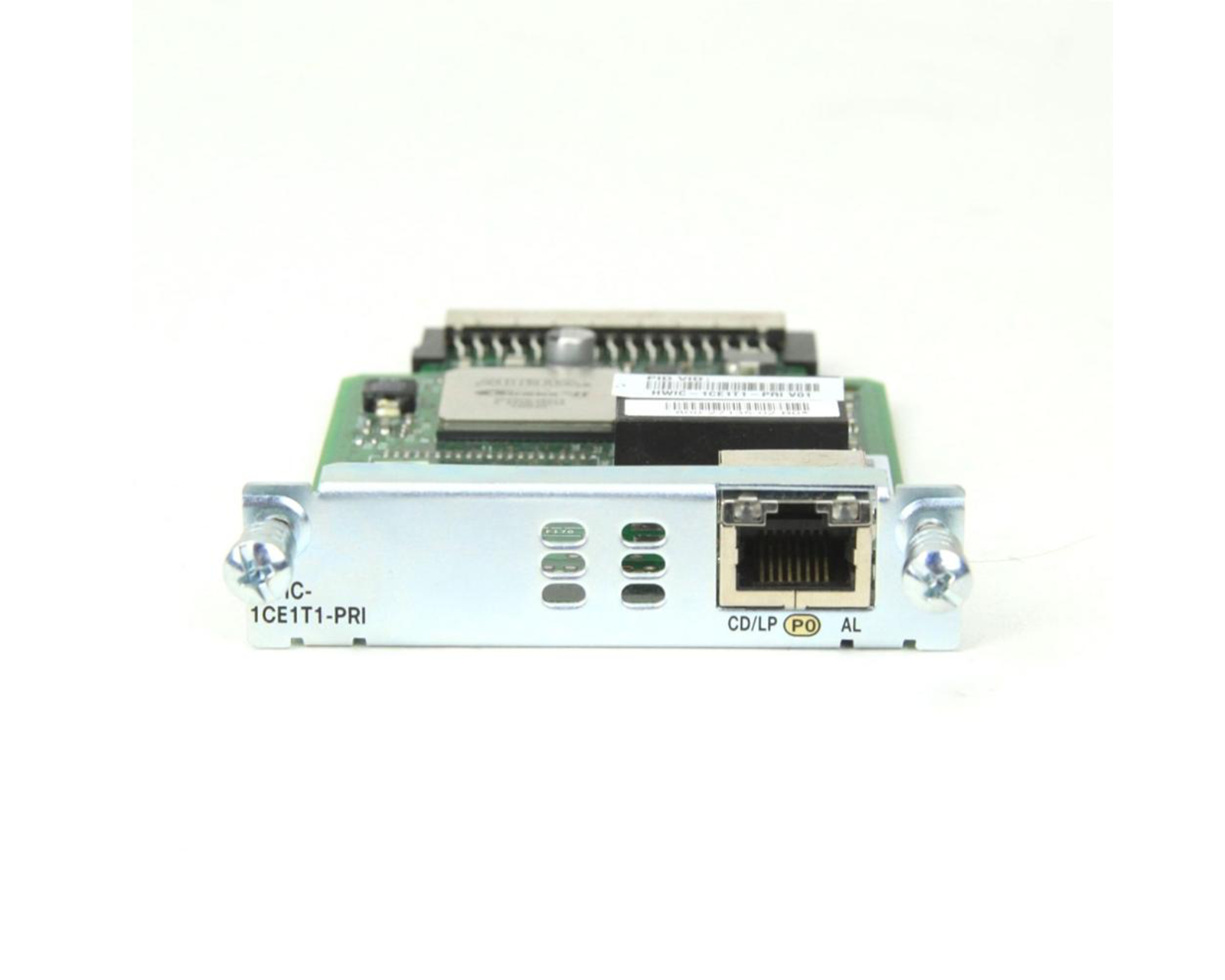

| Model | HWIC-1CE1T1-PRI |
| Cisco Product Description | 1 Port Channelized T1/E1 and ISDN PRI High Speed WAN Interface Card |
| Product Type | High-Speed WAN Interface Card (HWIC), single-wide |
| Host Routers | Cisco Integrated Services Routers with single-wide HWIC slots |
| Ports | 1 x RJ-48C |
| Cable | Straight-through RJ-48C to RJ-48C |
| Line Rates | T1 1.544 Mbps; E1 2.048 Mbps |
| Channels per Port | Up to 24 (T1) or 31 (E1) |
| Channels per Card | Up to 32 |
| Channelized Service | Full or fractional T1/E1 (n x DS-0) |
| ISDN PRI | PRI for data, as primary WAN link or WAN backup |
| Multilink Support | Multilink PPP and Multilink Frame Relay (FRF.16) |
| Dial Access Aggregation | With PVDM2-12DM, PVDM2-24DM or PVDM2-36DM digital modem modules (V.90 and V.92) |
| T1 Framing | Super Frame (SF) and Extended Super Frame (ESF) |
| T1 Line Coding | AMI and B8ZS |
| E1 Framing | CRC4 |
| E1 Line Coding | HDB3 |
| Integrated CSU/DSU | Yes, per port |
| LEDs | Per port: CD/LP (bicolor green and yellow) and AL (yellow) |
| Dimensions (H x W x D) | 0.75 x 3.08 x 4.74 in (1.91 x 7.82 x 12.04 cm) |
| Weight | 0.18 lb (0.08 kg) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Operating Humidity | 5 to 95%, noncondensing |
| Nonoperating Temperature | -40 to 158 F (-40 to 70 C) |
| Related Models | HWIC-2CE1T1-PRI (2 ports, up to 64 channels) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
