| Brand | Cisco |

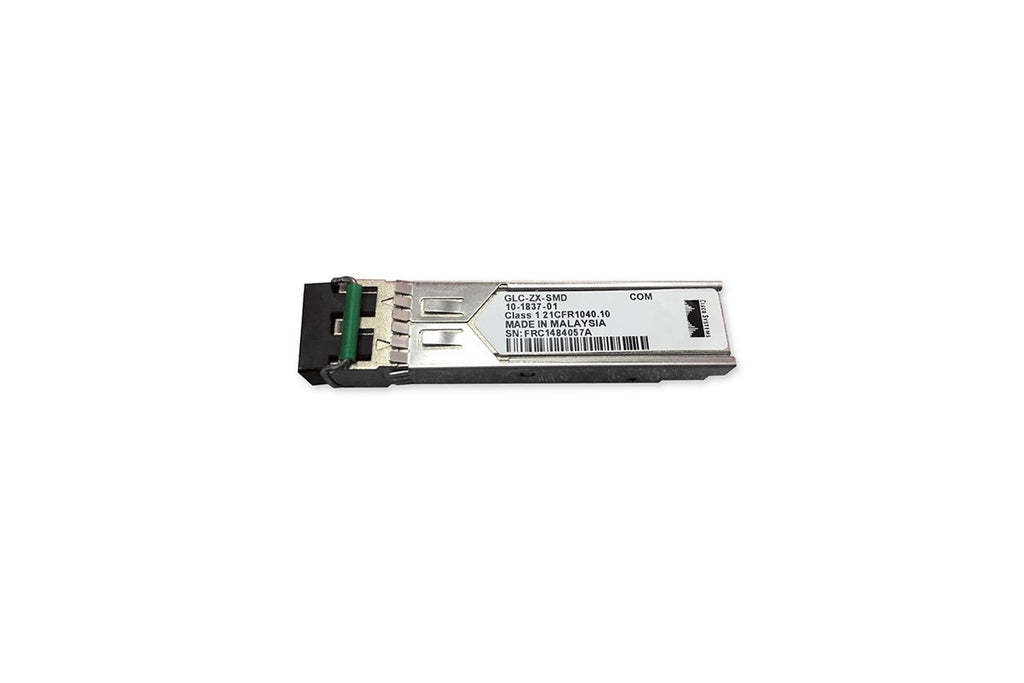

| Model | GLC-ZX-SMD |
| Series | Cisco Gigabit Ethernet SFP Modules |
| Cisco Product Description | 1000BASE-ZX extended distance; with DOM |
| Form Factor | SFP |
| Data Rate | 1 Gbps |
| Wavelength | 1550 nm |
| Transmit and Receive Wavelength Range | 1500 to 1580 nm |
| Connector | Dual LC/PC |
| Patch Cord Connectors | PC or UPC supported; APC not supported |
| Fiber Type | Single-mode (ITU-T G.652) |
| Reach | Approximately 70 km, depending on link loss |
| Transmit Power | +5 to 0 dBm |
| Receive Power | -3 to -23 dBm |
| Optical Link Budget | 21 dB |
| Maximum Channel Insertion Loss | 21 dB (any single-mode fiber) |
| Inline Optical Attenuator | 10 dB at each end of the link when span loss is below 8 dB |
| Digital Optical Monitoring (DOM) | Yes |
| Hot-Swap | Yes |
| Power Consumption (Cisco SFP Modules) | Typically up to 1 W per port |
| Operating Temperature | -5 to 85 C (23 to 185 F), extended range |
| Storage Temperature | -40 to 85 C (-40 to 185 F) |
| Dimensions (Cisco SFP Modules, H x W x D) | 8.5 x 13.4 x 56.5 mm |
| Weight (Cisco SFP Modules) | 75 grams or less |
| Laser Safety | Class I (21CFR1040 LN#50 7/2001, IEC 60825-1) |
| Related 1G SFP Modules | GLC-SX-MMD (1000BASE-SX, multimode fiber only), GLC-LH-SMD (1000BASE-LX/LH, 10 km), GLC-EX-SMD (1000BASE-EX, 40 km), GLC-ZX-SM-RGD (1000BASE-ZX, rugged, industrial temperature range) |
| Supported Platforms (Cisco Gigabit SFPs) | ASA 5500; ASR 901, 903, 1000, 9000 and 9000v; Catalyst Express 500 and 520; Catalyst 2350, 2360, 2900, 2940, 2950, 2960 (including Plus, C, S, SF and X), 2970, 2975, 3000, 3100, 3500XL, 3550, 3560 (including C, E and X), 3750-E, 3750 Metro, 3750-X, 3850, 4500, 4500-X, 4900, 6000 and 6800; Cisco 1941, 2600, 2800, 2900, 3200, 3600, 3700, 4400, 6400, 7200, 7300, 7500, 7600, 10000, 10700 and 12000 series routers; uBR7200 and uBR10000; 5700 Wireless LAN Controller; 2000 Connected Grid Router and 2500 Connected Grid Switch; IE2000, IE2000U and IE3010; MDS 9000; ME 2400, 2600X, 3400, 3600X, 3800X, 4600, 4900 and 6500; MWR 2941; CRS; CSS 11500; RF Gateway; NAM 2200; Nexus 2000, 3000, 4000, 5000, 7000, 9000, 9300 and 9500 |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
