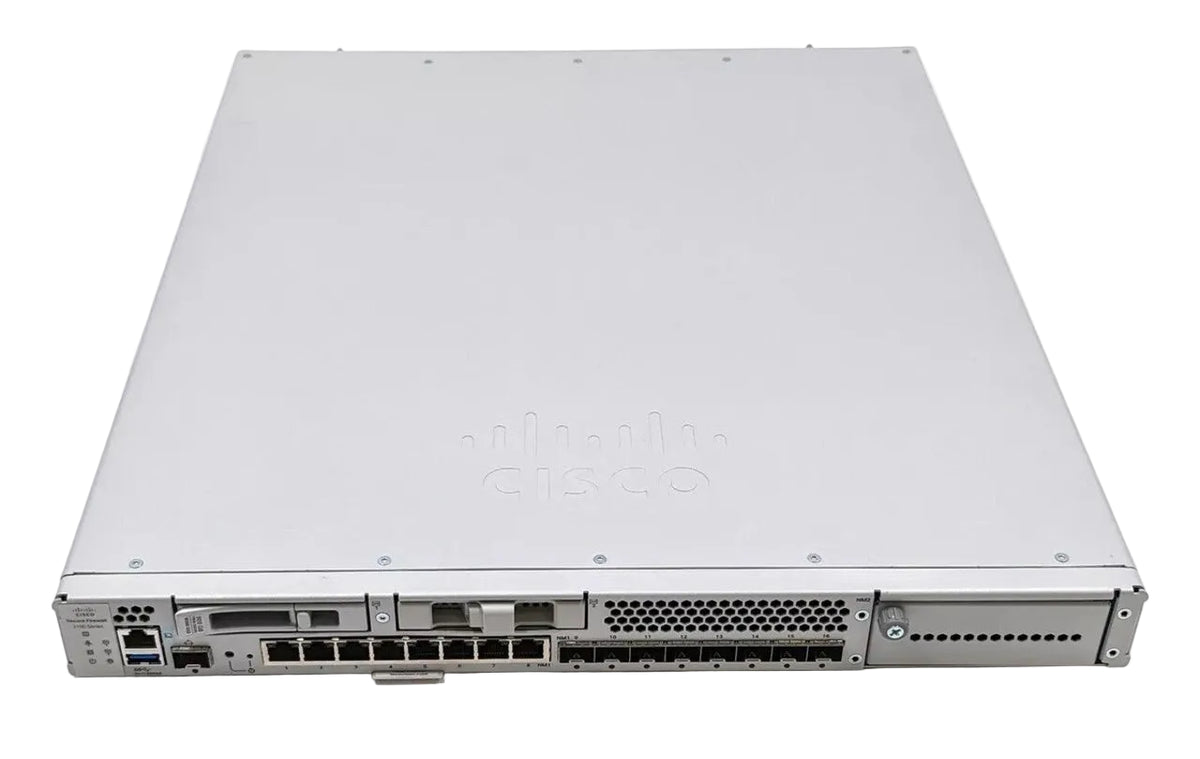

| Brand | Cisco |
| Model | FPR3105-NGFW-K9 |
| Series | Secure Firewall 3100 Series |
| Description | Secure Firewall 3105 next generation firewall chassis 1 RU |
| Form Factor | 1RU |
| Integrated Ethernet Ports | 8 x 10M/100M/1GBASE-T (RJ-45), 8 x 1/10G SFP+ |
| Maximum Ethernet Ports | Up to 24 total |
| Network Module Slot | 1 (8 x 1/10G options) |
| Management Port | 1 x 1/10G SFP |
| Console Port | 1 x RJ-45 serial |
| USB Port | 1 x USB Type-A (900 mA) |
| Firewall Throughput | 10 Gbps |
| Firewall + AVC Throughput (1024B) | 10 Gbps |
| Firewall + AVC + IPS Throughput (1024B) | 10 Gbps |
| NGIPS Throughput (1024B) | 10 Gbps |
| TLS Throughput | 3.2 Gbps |
| Concurrent Sessions (with AVC) | 1.5 million |
| New Connections per Second (with AVC) | 90,000 |
| IPsec VPN Throughput (1024B TCP with Fastpath) | 5.5 Gbps |
| Maximum VPN Peers | 2,000 |
| ASA Stateful Firewall Throughput | 10.0 Gbps |
| ASA Stateful Firewall Throughput (multiprotocol) | 9.0 Gbps |
| ASA Concurrent Connections | 1.5 million |
| ASA New Connections per Second | 150,000 |
| ASA IPsec VPN Throughput (450B UDP L2L) | 5.5 Gbps |
| ASA IPsec VPN Throughput with VPN Offload | 7.0 Gbps |
| ASA High Availability | Active/active and active/standby |
| Software Options | ASA or Firewall Threat Defense (FTD) |
| Deployment Modes | Firewall and dedicated IPS |
| System Memory | 64 GB |
| Storage | 1 x 900 GB NVMe SSD, 1 spare slot |
| Power Supply | 400 W AC, hot-swappable, 2 slots (second 400 W AC optional) |
| AC Input | 100 to 240 VAC, maximum input current less than 6 A at 100 VAC |
| Fans | 2 dual fan module slots (3 + 1), hot-swappable |
| Airflow | Front to rear (I/O side to non-I/O side) |
| Acoustic Noise | 65 dBA at 25 C, 74 dBA maximum |
| Dimensions (H x W x D) | 1.75 x 17 x 20 in (4.4 x 43.3 x 50.8 cm) |
| Weight | 23 lb (10.5 kg) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Operating Altitude | Up to 10,000 ft |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
