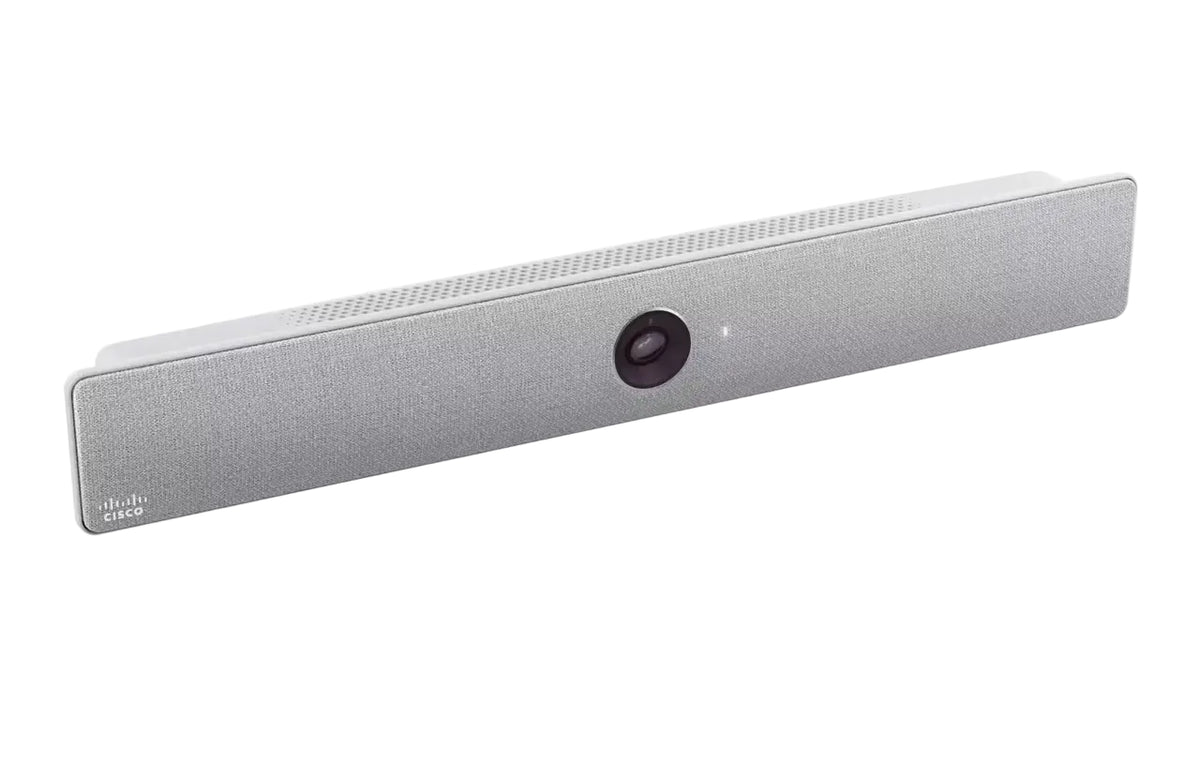

| Brand | Cisco |
| Model | CS-KIT-S-UNIT |
| Product Line | Webex Room Kit |
| Product Type | All-in-one video conferencing unit |
| Integrated Components | Camera, codec, speakers and microphones in a single device |
| Camera | 5K UltraHD |
| Camera Sensor | 15.1 MP, 5184 x 2916 pixels, 1/1.7 CMOS |
| Camera Zoom | 3x |
| Camera Aperture | f/2.0 |
| Camera Field of View | 83 degrees horizontal, 51.5 degrees vertical |
| Camera Focus Distance | 1 m to infinity |
| Video Input | 1 x HDMI, up to 4K (3840 x 2160) at 30 fps, and 1080p at 60 fps |
| Video Outputs | 2 x HDMI, up to 3840 x 2160p60 (4Kp60) |
| Live Video Resolution | Up to 1920 x 1080p30 and p60 (encode and decode) |
| Video Codecs | H.264, H.265 |
| Dual Stream | H.239 (H.323) and BFCP (SIP), up to 3840 x 2160p5 |
| Audio Inputs | 2 x 4-pin mini-jack microphone, 1 x HDMI audio, internal microphone |
| Audio Output | 1 x stereo line out, mini-jack |
| Built-In Speakers | 5, balanced configuration |
| Speaker Amplifier Power | 24 W |
| Speaker Frequency Response | 70 Hz to 20 kHz |
| Maximum Speaker Output Level | 86 dB SPL |
| Microphone Array | 6 elements, with automatic noise reduction |
| Speaker Tracking | Yes, with auto framing (audio and face detection) |
| People Counting | Yes |
| LAN Port | 1 x RJ-45 10/100/1000 |
| Touch Panel Pairing Port | 1 x RJ-45, direct pairing with a Room Navigator touch panel |
| Wi-Fi | 802.11a/b/g/n/ac, 2.4 GHz and 5 GHz (not available on the no-radio version) |
| Bluetooth | Audio input and output (not available on the no-radio version) |
| USB Ports | 1 x USB 2.0, 1 x micro USB, factory reset pinhole |
| Call Protocols | H.323, SIP |
| Management Access | HTTPS and SSH |
| AC Input | 100 to 240 VAC, 50/60 Hz |
| DC Input | 12 V DC |
| Power Consumption | Average 20 W, peak 70 W |
| Dimensions (H x W x D) | 10.6 x 70.0 x 8.8 cm |
| Weight | 7 lb (3.2 kg) |
| Operating Temperature | 0 to 40 C (32 to 104 F) |
| Operating Humidity | 10 to 90% relative humidity |
| Storage Temperature | -20 to 60 C (-4 to 140 F), 10 to 90% relative humidity, noncondensing |
| Related Models | CS-KIT-S-NR (no radio), CS-KIT-S-UNITK7 (no encryption) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
