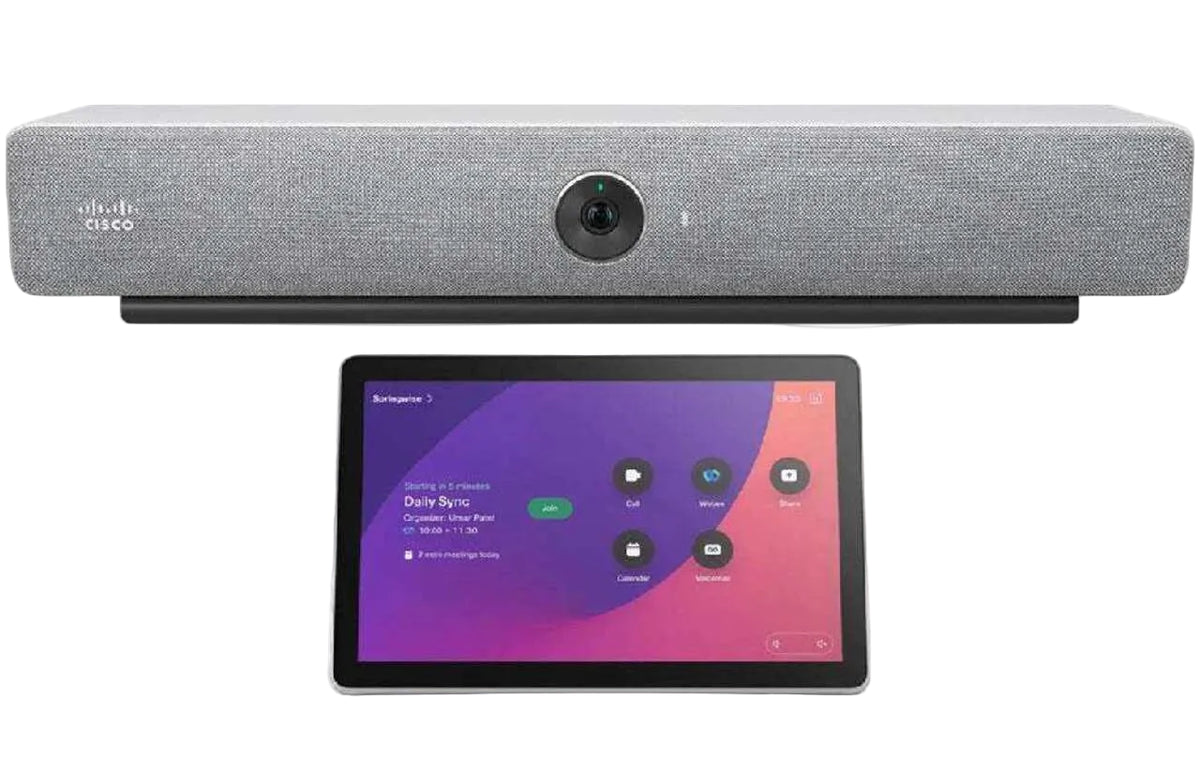

| Product & Series | Cisco CS-BAR-T-K9, part of the Cisco Room Bar family |
| Configuration | Room Bar with table-stand Room Navigator, First Light color |
| Camera | 12MP, 1/2.3-inch CMOS, f/2.5 aperture, 5x digital zoom, 30 frames per second |
| Field of View | 120 degrees horizontal, 95 degrees vertical |
| Video Resolution | Up to 1920 x 1080 at 30 fps and 60 fps (encode and decode), up to 20 Mbps bandwidth |
| Microphones | 4-element beamforming microphone array |
| Speakers | Stereo loudspeaker system with 2 full range drivers, 93 dB maximum sound pressure level |
| Audio Processing | AI-powered noise removal |
| Display Outputs | 2x HDMI, up to 3840 x 2160 at 60 fps |
| Display Inputs | 1x HDMI, 1x USB-C |
| Ethernet | 1x RJ-45 100/1000 Mbps LAN; 1x RJ-45 100/1000 Mbps PoE-enabled port for Cisco Room Navigator |
| Wireless | Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz, 2x2 MIMO; Bluetooth and Bluetooth Low Energy |
| USB | 1x USB 2.0 Type-A |
| Software Platforms | RoomOS 11 or later, or Microsoft Teams Rooms on Android |
| RoomOS Meeting Support | Native Webex meetings, Google Meet and Zoom interoperability, digital signage, custom controls with macros |
| Microsoft Teams Rooms Support | Native Microsoft Teams Rooms meetings, Zoom interoperability; Webex meetings via one button to push when managed in Control Hub |
| BYOD Mode | Connects to any meeting application with HDMI to a monitor and USB-C to a laptop |
| Power | 12V DC input, 86W peak |
| Dimensions | 21 x 3.2 x 2.5 in. (53.4 x 8.2 x 6.4 cm) |
| Weight | 3.3 lb. (1.5 kg) |
| Operating Environment | 32 to 95 F (0 to 35 C), 10% to 90% relative humidity |
| Sibling Comparison | CS-BAR-W-K9 uses a wall-mount Room Navigator; CS-BAR-T-C-K9 is the table-stand version in Carbon; CS-BAR-NR-K9 is the no radio version |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
