| Part Number | CPAK-100G-ER4L |

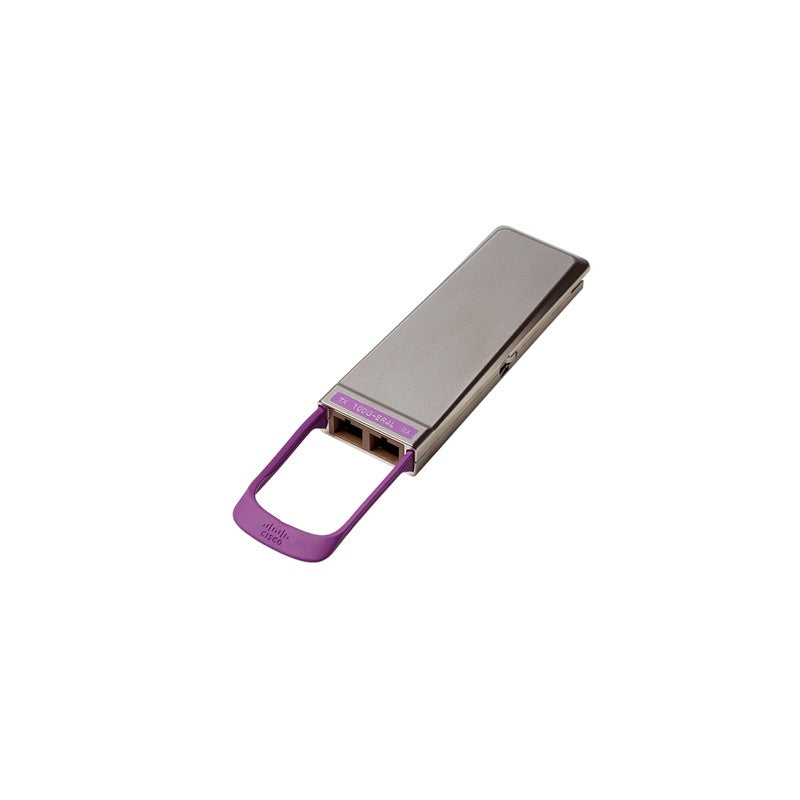

| Product Type | 100GBASE-ER4 Lite CPAK Transceiver Module |
| Protocol | 100GBASE-ER4 Lite (IEEE 802.3ba; ITU OTU4 compliant) |
| Data Rate | 100 Gbps (4 LAN-WDM lanes x 25 Gbps) |
| Wavelengths | 4 LAN-WDM lanes (~1295, 1300, 1305, 1310 nm) |
| Max Distance | ~25 km over standard SMF G.652 |
| FEC | Not available (ER4L; no FEC) |
| FEC variant | CPAK-100G-ER4F (up to 40 km with FEC) |
| LR4 variant | CPAK-100G-LR4 (10 km) |
| Connector | SC (official) or LC; duplex SMF |
| Fiber Type | SMF G.652; 9-micron core |
| Power | 7.5W nominal; 8.5W max at 70°C |
| Form Factor | Cisco CPAK (20% smaller than CFP2; 40% lower power than CFP2) |
| Dimensions (H x W x D) | 0.46 x 1.37 x 3.98 in (11.6 x 34.8 x 101.2 mm) |
| Compatible Platforms | ASR 1000, ASR 9000, CRS-X, NCS Series (Cisco CPAK slot platforms) |
| DDM | Supported |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
