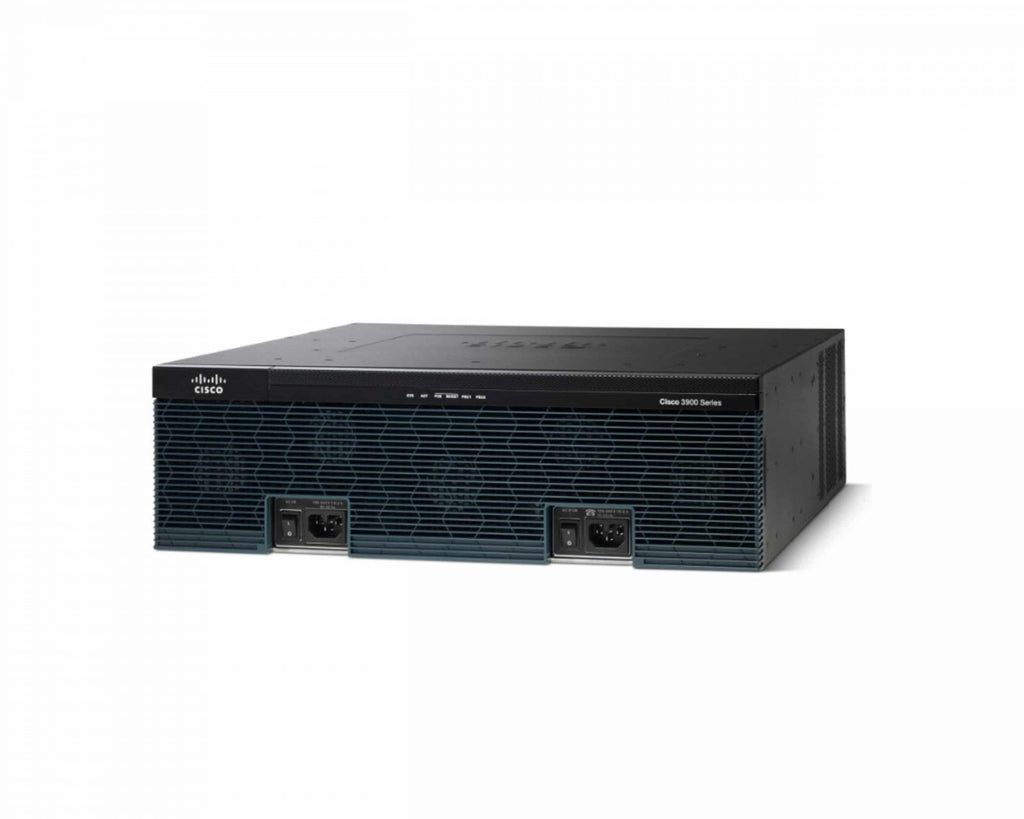

| Brand | Cisco |
| Model | CISCO3925-V/K9 |
| Series | Cisco 3900 Series Integrated Services Routers |
| Bundle Name | Cisco 3925 Voice Bundle |
| Product Type | Modular integrated services router, voice bundle |
| Voice DSP Module | PVDM3-64 |
| Services Performance Engine | Services Performance Engine 100 |
| Onboard WAN Ports | 3 x 10/100/1000 routed |
| RJ-45 Ports | 3 |
| SFP Ports | 2 (use of an SFP port disables the corresponding RJ-45 port) |
| EHWIC Slots | 4 |
| Double-Wide EHWIC Slots | 2 (each uses two EHWIC slots) |
| DSP (PVDM3) Slots | 4 |
| Service Module Slots | 2 |
| Double-Wide Service Module Slots | 1 |
| ISM Slots | 1 |
| DRAM Type | DDR2 ECC |
| DRAM, Maximum | 2 GB |
| DRAM Slots | 2 (both modules the same density) |
| CompactFlash, Maximum | 4 GB per slot |
| External USB 2.0 Flash Slots | 2 x Type A |
| USB Console Port | 1 x Type B, up to 115.2 kbps |
| Serial Console Port | 1, up to 115.2 kbps |
| Serial Auxiliary Port | 1, up to 115.2 kbps |
| Hardware Encryption Acceleration | Yes (embedded) |
| Concurrent Services WAN Speed | Up to 100 Mbps |
| Power Supply Options | AC, AC with PoE and DC |
| Redundant Power Supply | Internal (additional supply in the second power supply slot) |
| Maximum End-Point PoE Power, PoE Power Supply | 520 W |
| Maximum End-Point PoE Power with PoE Boost | 1,040 W |
| AC Input Voltage | 100 to 240 VAC, autoranging |
| AC Input Frequency | 47 to 63 Hz |
| AC Input Current Range | 7.1 to 3.0 A |
| AC Input Surge Current | Less than 50 A |
| Typical Power, No Modules | 100 W |
| Maximum Power, AC Power Supply | 420 W |
| Maximum Power, PoE Power Supply (Platform Only) | 420 W |
| Dimensions (H x W x D) | 5.25 x 17.25 x 18.75 in. (133.35 x 438.15 x 476.25 mm) |
| Rack Height | 3 rack units (3RU) |
| Rack-Mount Widths | 19 in. (48.3 cm) EIA and 23 in. (58.4 cm) EIA |
| Wall Mount | No |
| Weight, AC Power Supply (No Modules) | 39 lb (17.7 kg) |
| Weight, PoE Power Supply (No Modules) | 40 lb (18.1 kg) |
| Weight, Typical Fully Configured | 60 lb (27.2 kg) |
| Airflow | Front to back (back to front with the NEBS fan kit) |
| Operating Temperature, up to 1,800 m (5,906 ft) | 0 to 40 C (32 to 104 F) |
| Operating Altitude, Maximum | 4,000 m (13,000 ft) |
| Operating Humidity | 5 to 85% relative humidity |
| Storage Temperature | -40 to 70 C (-40 to 158 F) |
| Storage Humidity | 5 to 95% relative humidity |
| Storage Altitude, Maximum | 4,570 m (15,000 ft) |
| Acoustic Sound Pressure, Typical/Maximum | 57.6 / 77.6 dBA |
| Acoustic Sound Power, Typical/Maximum | 67.8 / 84.7 dBA |
| Related Models | CISCO3925/K9 (base router), CISCO3925-SEC/K9 (security bundle), C3925-VSEC/K9 (voice security bundle with PVDM3-64) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
